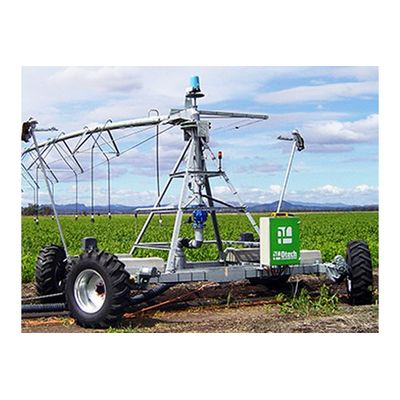

Rampe - Model 4RMG - Linear
The 4RMG lateral can carry out combined courses (linear + circular) like those of the 4RMVE Premium lateral. A wheel rotation wired remote system of the cart enables to change the operating axis and to adapt itself to the parcel shape.
The laterals are moving irrigation systems to irrigate rectangular parcels. On these machines, there is no fixed anchor point to the ground; therefore, the lateral must support the mechanical pressures of the moving loads. Hence, the cart frame is made in S275 galvanised steel in compliance with the NF EN ISO 1461 and it is equipped with an electric management system in compliance with the NF EN909 February 2009 + A1. We chose these top-quality components to make Otech`s experience known as global leader in the production of laterals
Swivel elbow power supply
The swivel elbow allows the connection of the polyethylene or flexible hose on the cart and the setting up of the buckle at the time of the inversion at the end of the parcel in order to reduce the human interventions on the machine.
Upper 90° elbow
The rotating upper elbow is mounted on bearings to balance the loads on the cart axis, simplifies the rotation while ensuring a maximum alignment precision.
Hose traction
According to the needs, the supply hose can be in polyethylene or flexible with a diameter adapted to the machine needs.
Electric Collector
Electric collector with minimum twelve rings (25 A to 500 V) IP233 anti-UV watertight under cap, mounted on watertight ball bearing, triple reach contacts, terminal block, predisposed for additional rings and angular coder. French manufacturing on Otech concept
