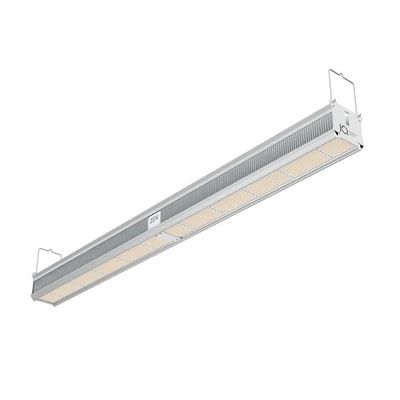

IQ Lighting - Model ZEN - Linear LED Top Light
Meant for high bay growing environments, the ZEN is a full-cycle top lighting solution ideal for greenhouse supplemental and commercial sole-source grow lighting applications.
World class INVENTRONICS driver. Input options 90V-305V and 245V-528V.
ZEN is fully dimmable to fit any growing application. Dial in your light intensity to any stage of plant growth.
0-10V (Optional)
The ZEN is equipped with an external RJ14 cable and allows for daisy chained installation of up to 160 luminaires per controller (80 luminaires per controller port).
ZEN is packaged separately from the power supply to lower shipping costs. IQ shares the savings with our customers
INPUT POWER: 630W or 720W
EFFICACY: 2.7 or 2.64 μmol/J
PPF: 1700 or 1900 μmol/s
INPUT VOLTAGE: 120V-277V; 277V-480V
MOUNTING: ≥ 3` above canopy
THERMAL: Passive
LIFE: 50,000 hrs
POWER FACTOR: > 90%
IP RATING: IP66
CERTIFICATION: UL8800, UL 1598 Wet
WARRANTY: 5 Year Standard
AMBIENT TEMP: -10-40°C
STORAGE: -40-85°C (RH10-95%)
ACCESSORY: 6` extension power cord
LENGTH: 46"
WIDTH: 3.8"
HEIGHT: 3"
WEIGHT: 14lb / 6.5 kg
