Model CI-110 - Plant Canopy Imager
The NEW Plant Canopy Imager CI-110 captures wide-angle canopy images while estimating Leaf Area Index (LAI) and measuring Photosynthetically Active Radiation (PAR) levels. Images live-update on the built-in capacitive monitor, providing instant data for verification and analysis with integrated software in the field under any daylight conditions. User-selected zenith and azimuthal divisions allow investigation of any canopy sectors desired, and the instrument’s light-weight design makes it convenient for canopy imaging in any location! Now with updated GPS accuracy with access to four different satellite constellations, and the ability to interchange lens filters over the camera for more specific measurements.
Leaf Area Index (LAI) is defined as one sided leaf area divided by the total ground area. Photosynthetically Active Radiation (PAR) designates the spectral range of solar radiation (400-700 nm). By measuring PAR and LAI simultaneously, one is able to calculate LAI and canopy parameters using a variety of methodologies.
To calculate LAI, the CI-110 captures a 150° fisheye image of the canopy, which is divided into zenith and azimuthal divisions. Using the software included on the tablet computer, the user can include or exclude any zenith and azimuth division to focus on specific portions of the canopy for study.

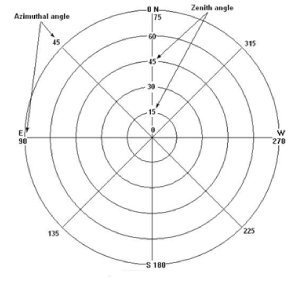

Figure: Grids for analyzing fish-eye images.
The most practical method for non-destructive LAI measurement is the Gap Fraction Method. Gap Fraction indicates how much of the sky is visible from beneath the plant canopy. The greater the area of sky that is visible, the larger the gap fraction.
When using the CI-110, a value between 0 and 1 is assigned to estimate the Gap Fraction in a canopy—0 means that no sky is visible below the plant canopy whereas 1 means that the entire area is sky is visible, or there is no foliage coverage. Any fraction indicates partial foliage cover.
Images taken with the CI-110 are divided into sectors according to the user-selected number of zenith and azimuthal division. The fraction of the sky (solar beam transmission coefficient) that is visible in each sector is automatically analyzed by tallying the sky portion of the image pixels in that sector. Once all sectors are analyzed and the average solar beam transmission coefficients for each zenith division are computed, the hemispherical diffuse radiation transmission coefficient (the sky view factor), mean foliage inclination angles, and plant canopy extinction coefficients are instantaneously computed by CI-110's analysis software.
- Single measurement for comprehensive data collection and instantaneous, in-field calculation with integrated software
- No above-canopy reference measurement required
- Calculated LAI of low lying plant canopies up to forest canopy
- Adjustable camera lens focus for varying canopy heights, down to 30 cm
- 150° viewing angle with live-updating high-resolution fish-eye digital image
- On-site evaluation of solar beam transmission coefficients or gap fractions for LAI analysis
- Calculation of diffuse radiation transmission coefficients (the sky view factor), mean foliage inclination angles, and plant canopy extinction coefficients
- Fully integrated ceptometer with 24 photodiodes to measure Sunflecks in the range of Photosynthetically
- User-selected number of zenith
and azimuthal divisions allows investigation of any canopy
- Digital masking of unwanted elements in image
- Digital color filters allow user to further distinguish between sky and plant
- Internal compass and GPS enable repeated measurements in the same location over the growing season
- Lens: Self Leveling Hemispherical Lens
- Image Resolution: 180,956 pixels
- Interface: USB
- Measuring Time: 0.5-1 second
- Fish-eye Lens Angle: 150°
- Operating Temperature: 5 to 50° C
- Probe Size: 42 × 72 mm
- Arm Length: 440 mm
- Probe and Arm Weight: 0.45 kg
- PAR: 24 PAR sensors, 10 mm spacing
Simply position the CI-110 under the desired leaf canopy. The auto-leveling fisheye camera lens (170°) displays a live image of the canopy for accurate data collection. Once you have captured the desired canopy image, software-driven analysis manipulates any data portion you desire, making manual image masking obsolete.
- Leaf Area Index (LAI)
- Mean Foliage Inclination
- Sunflecks - The fraction of visible sky from below the canopy
- Photosynthetically Active Radiation (PAR)
The CI-110 Digital Plant Canopy Imager includes:
- Self leveling digital fish-eye imaging probe
- Driver software
- Operational software
- 24 PAR sensor-arm with USB interface
- Operations manual
- Hard-shell instrument carrying case
- Optional handheld computer
