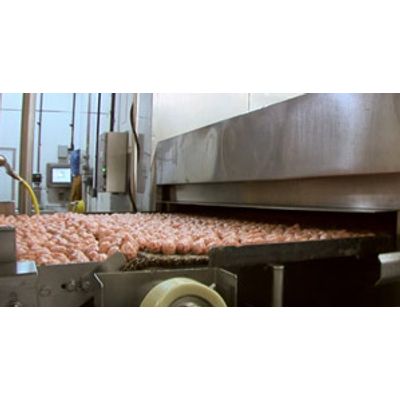

Liquid/solid separation solutions for the food processing industry - Food and Beverage
Heron Innovators provides a fully integrated Suspended Air Flotation (SAF) system for food and beverage processing facilities. SAF removes suspended solids, fats, oil and greases from wastewater. See Heron Innovators’ line of SAF Generators and ClearFloaters. These systems may be utilized as component equipment or fully integrated trailer-mounted systems. SAF wastewater process systems are versatile and cost-effective designed to use less space while removing more solids than competing traditional systems (i.e. dissolved air flotation, DAF, induced air flotation, IAF, Induced Gas Flotation, IGF, enhanced clarification, and other micro-bubble generators). SAF DOES NOT DISSOLVE AIR IN WATER THEREFORE IS NOT CONSTRAINED BY THE PHYSICS OF DISSOLVING AIR INTO WATER/GAS. Initialization & startup for SAF systems is a matter of hours, rather than days.
The trailer-mounted system was constructed from AISI type 304 stainless steel, PVC, and polyurethane, and measured 40 ft. long x 8 ft. wide x 12 ft. high. The system is capable of flow rates to 250 gpm with a 7.5 HP feed pump. This versatile and cost-effective system is designed to use less space than most treatment systems. In addition, it also uses a minimal amount of air to float separate suspended solids, with a 0.5% air to solid ratio. During development, in-process bench testing was used to prove the concept. Heron executed a process warranty which allowed the end user to purchase the pilot test trailer as their permanent treatment solution. This trailer was delivered from stock with a six-day turnaround time which allowed the customer to put the system immediately into use.
- Product Name
- Trailer mounted Model SAF125 Suspended Air® Flotation (SAF®) Treatment System
- Product Description
- Trailer-mounted Model SAF125 Suspended Air® Flotation Treatment System. Capable of treating 250 gpm. Contained and fully integrated are:
- 250 gpm feed pump
- 4 in. magnetic flow meter
- pH Control System with PID loops for acid and caustic feed
- Controlled outlets for coagulant feed and a polymer dosing/flash mixing/aging system to promote flocculation
- Flotation of suspended solids and associated BOD/COD
- Skimmed solids pump
- Fully automated continuous operation including starting/stopping system by remote signal/parameter
- System Capabilities and Services Provided
- Engineering design of process and components
AutoCAD drawings
In-house fabrication of mechanical and electrical equipment
Custom fabricated welded stainless steel tanks and components.
Laboratory services supporting treatability study and proof of concept determinations.
Installation and start-up support - On-going system maintenance and support
Operations and maintenance manual
- Overall Part Dimensions
- Length: 40 ft. L x 8 ft. W x 12 ft. H
- Tightest Tolerances
- ± 1/16 inch
- Material Used
- 304 stainless steel, PVC, Polyurethane
- Special Features
- Sold pilot trailer (250 gpm portable treatment system) as a complete packaged permanent treatment system. Customer enclosed the trailer and began using it immediately.
- Additional Facts
- Components:
- System Feed Pump: 7.5 HP, 250 gpm
- 4 in. magnetic flow meter
- pH Control System with acid and caustic PID Loops
- Conditioning Tank: 304 SS, 1,800 gallons, 2-compartment with 2-turbine agitators
- Flotation Tank: Model CF-125 ClearFloater™ Cross-Flow Flotation Cell with flocculation agitator, chain and flight skimmer, solids hopper, adjustable stainless steel weir, and observation decking
- SAF® Generator: Model F50 (13.6 gpm froth flow rating)
- Polymer dilution and aging system
- Acid, caustic, polymer, and frothing agent metering pumps
- Float solids transfer pump
- In process testing/inspection performed
- Bench Testing for TSS, COD/BOD, FOG removal efficiency
Pilot Trailer operation to demonstrate system capability
- Results
- Effective pretreatment, 1-day startup. In service since 2009.
- Industry for Use
- Food Processing
- Delivery/Turnaround Time
- 6 days (delivered from stock)
- Delivery Location
- Buffalo, New York
- Standards Met
- Customer Specifications, 2D CAD Drawing
