AG Drone Motor Series
24v Brushless Motor Series
With standardization of UAV industry segment, the requirements of user are growing rapidly. TTF, is now releasing P series motors for agricultural application with powerful thrust and high performance after tremendous tests. P series 24 volt brushless motors are capable of working in demanding environment with reliability and long service life.
More Thrust
Weight decrease is achieved by optimizing stator structure while maintaining its mechanical strength. Manual winding helps increase slot fullness for more thrust.
Low Noise, Stable & Reliable
24N28P/36N42P configuration reduces largest drone motors vibration in operation for motor wearing diminution, service life extension and noise debasement. P series motors run more smoothly than motors with general configuration at maximum throttle.
Impact Resistant
Optimized machining precision and motor structure with motor core part protection effectively avoids cases as to the failure in motor utilization after crash and impact.
Dustproof, Waterproof & Cooling
Closed exterior and lattice structure take account of both dustproof, waterproof and cooling effects which handles usage in various environment.
Anti- corrosion Coil
Special coating gets the coil free of corrosion from pesticides.
Extensive Compatibility
There are M3 and M4 mounting holes on the motor base for different frames.
P series quadcopter drone motors are not confined in plant protection field. It can also be employed on VTOL planes.
P series motor

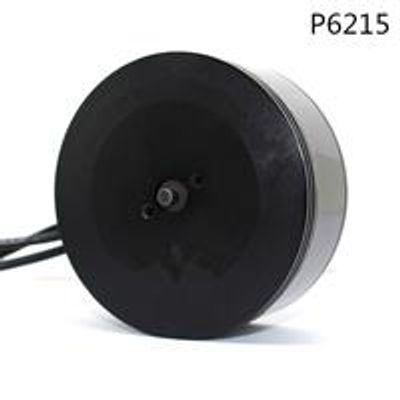

P6215-175KV
P7115-135KV
P8320-120KV
CF Prop & Max thrust
22*75: 9.46kg
21*70: 9.15kg
26*80:10.85kg
26 * 85: 10.93kg
30*80: 16.62kg
30*95:17.14kg
ESC
80A
80A
100A
Volts
12S
12S
12S
AUW
Quadcopter: 16 kg
Hex-copter: 25kg
Oct-copter: 33kg
Quadcopter: 21kg
Hex-copter: 30kg
Oct-copter: 38kg
Quadcopter: 33kg
Hex-copter: 48kg
Oct-copter: 62kg
-
