Egg Laying Cage System with Feeding Capacity of 96, 126, 160, 180 and 200 Chickens / Birds

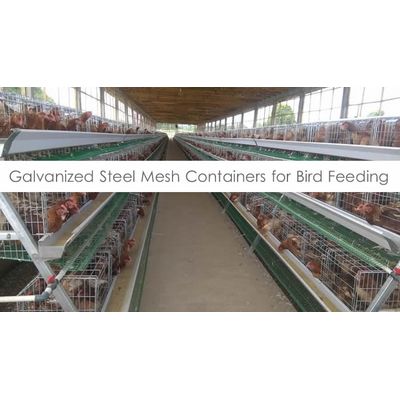

We supply flexible mesh cage systems ( layer cage, broiler cage and pullet cage) for large scale or medium sized chicken farms. 3 tiers, 4 tiers and 5 tiers cages available to meet varied site environments with a capacity of 96 birds, 120 birds, 128 birds, 160 birds and 200 birds. Layer chicken cages are designed with automatic drinking system, also automatic feeding, egg collection system, dung cleaning system. The cages are made of strong welded mesh panels hot dipped galvanised and / or plastic coated into various colors.
96 Birds Chicken Cage of 3 Tiers
Material: low carbon steel wire Q 235
Surface: Electric galvanized, hot dip galvanized, plastic coated
Wire diameter: 3.0mm-3.2mm
Size /cell: 0.47mx0.36mx0.36m
Size/set cage: 1.88m x 2.3m x 1.5m
Capacity: 96 birds
Accessory: Nipple drinker, feeder trough, Water Pipe, Water tank, Stands and fitting tools
Specification:
96 Birds
120 Birds
128 Birds
160 Birds
Size/ cell
0.47mx0.36mx0.36m
0.39mx0.36mx0.36m
0.47mx0.36mx0.36m
0.39mx0.36mx0.36m
Size/ set cage
1.88mx 1.4m x 1.5m
1.98mx 1.4m x 1.5m
1.88mx 1.4m x 1.5m
1.98mx 1.4m x 1.5m
Multi Tier Welded Mesh Cage System offers the following features:
1, Saving more cost for farmers: Much lower cost than H Frame Cage System;
2. More Suitable to use in rainless district. Durable and solid structure for long lifetime;
4. Easily to deliver and installation in clients farm and make maintenance;
5. It helps producing clean eggs because the Egg conveyor system can deliver all eggs from different houses to egg storage room just as the H frame System;
6. Easy control of parasitic disease like coccidiosis and worm infestation;
7. Prompt steps to control feed wastage because of the longer design feed trough edge.
8. Egg production of caged layer was reported to be more than those kept in deep litter system.
9. The overlap parts is bigger so the chicken house can get much better ventilation, it can be used both in open or close house according clients’ needs.
