Hopper charging with spherical particles including rolling resistance mechanism - Case Study
Project Description
- Evaluate the feasibility of using the distinct‐ element modeling to study the flow and segregation of frictional particles without cohesion.
- Simulate an experimental test corresponding to the charge/discharge of a scale model batch hopper.
- Analyze the segregation observed in the hopper after its charge.
OFFICE
- France
- Itasca Consultants S.A.S.
INDUSTRIESCLIENT NAME
- ArcelorMittal
LOCATION
- France
SOFTWARE
Itasca`s Role

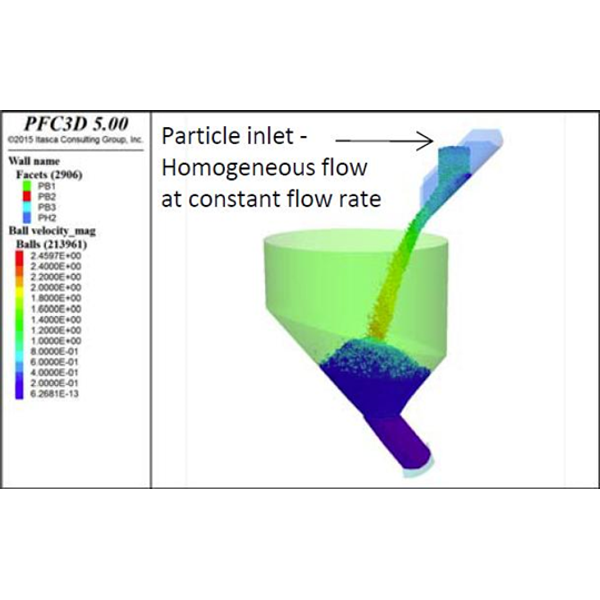

- Charge of a hopper with a geometry and parameters specified by ArcelorMittal.
- Import from a CAD design the real geometry of the hopper.
- Develop a new rolling resistance contact law to apply on spherical particles instead of using the real grain shapes.
Project Results
- Rolling resistance model allows the repose angle of the real material to be simulated.

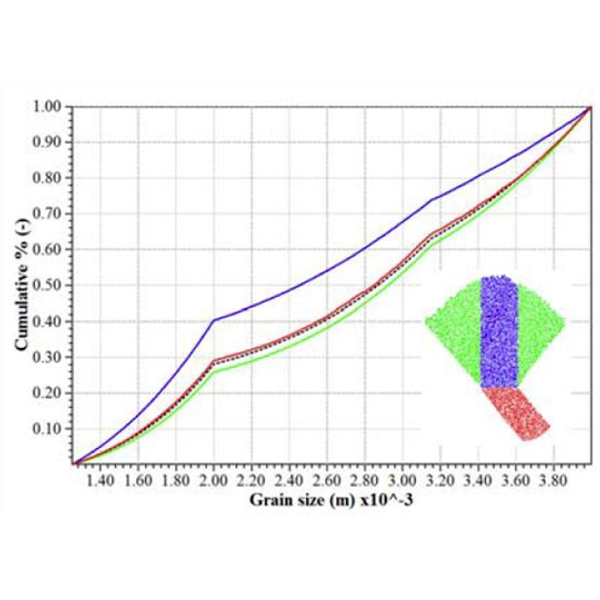

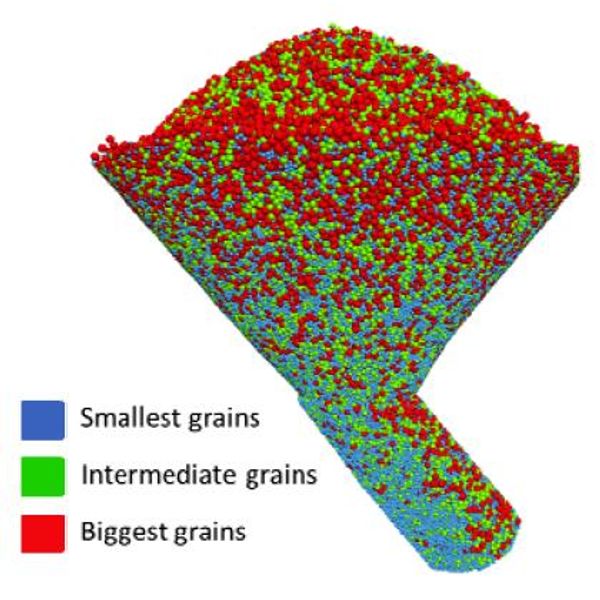

- Observation of segregation mechanisms during the charge of the hopper:
- smaller particles tend to concentrate in the inner cylinder, while bigger particles concentrate nearby the hopper walls.
- the bottom part of the hopper is filled by a homogeneous material.
- Simulations give insight on segregation mechanisms that explain the results observed later on (during the discharge).
Project Image(s)
-
