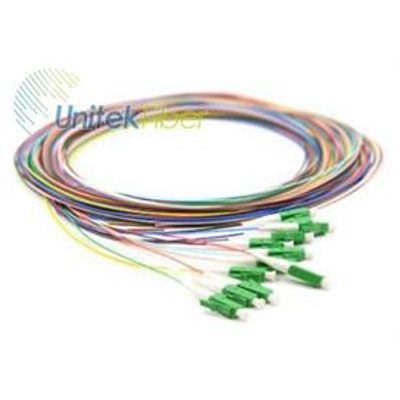

LC 12 Colorful Bulk Pigtails Single Mode Multi Mode Corning Fiber

Description of the LC pigtail single mode:

UnitekFiber provides Corning 12 colorful bulk fiber pigtails. The fiber pigtail is ususally using 0.9mm fiber cable. The cable can be 12 colors.

Installed LC, SC, FC or ST connector at the one end of the cable, the become a pigtail. Our colorful bulk pigtails is with low insertion loss, IEC, TIA/EIA, Telcordia compliant.

We offer customized fiber optic cable lengths and jacket colors.

Characteristics:

Low Insertion loss

High return loss

Good Repeatability

Good Interchange

Excellent Environmental Adaptability

Application:

Communication rooms

FTTH (Fiber to The Home)

LAN (Local Area Network)

FOS (fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment

Defense combat readiness

Specification

Parameter
Unit
Mode Type
PC
UPC
APC
Insertion Loss
dB
Sm
≤0.3
≤0.3
≤0.3
MM
≤0.3
≤0.3
-----
Return Loss
dB
Sm
≥50
≥50
≥60
MM
≥35
≥35
-----
Fiber cable
diameter
PVC, LSZH
Material
PVC, LSZH
Connector type

SC, LC. ST. FC
Repeatability
dB
Additional loss<0.1db,return loss< 5 dB
Interchangeability
dB
Additional loss<0.1db,return loss< 5 dB
Connection times
times
>1000
Operating Temperature
°C
-40°C- +75°C
Storage Temperature
°C
-40°C- +85°C
