Project - Kiverco Unveils it`s Backbone in Waste Composting
Kiverco and EnVar, waste and recycling experts in their respective fields, have joined forces to help protect the environment and create resources for future generations as a new Kiverco waste screening plant is installed at EnVar's organic waste treatment site in Cambridgeshire.
EnVar and Kiverco
EnVar is UK’s largest waste in-vessel and windrow composting facility and currently recycles food waste and green waste, commingled food and green waste and specific organic waste. With 30 years’ experience in composting, EnVar now works with a number of local authorities throughout the UK.
Kiverco consults, designs, engineers and builds what are described as “robust recycling plants” for the waste processing industry, utilising the latest technology to provide reliable output and recovery, in line with the latest industry developments.
The Woodhurst Site
Regularly operating to full capacity and with 16 full time workers, the EnVar site is busy. Recycling peak times change and weather impacts on the process too. For example, in the summer, as temperatures increase, huge levels of garden waste can be expected. During such times, staff can expect to see 35 loads a day of mixed food and garden waste, each weighing 26 tonnes.
As the waste arrives it is immediately mixed, shredded and blended, then water is added before the material is transported into a tunnel as part of the “in-vessel” composting system. During this process, the environment is managed carefully so that the material reaches a temperature of 60° for 48 hours as this eliminates undesirable pathogenic bacteria such as Salmonella and E.coli spp and even weed seeds. The tunnels at EnVar can take up to 450 tonnes of waste in one vessel. Once this process is complete, the waste is transferred to a maturation pad outside and exposed to the elements. After 8-12 weeks of turning to achieve aeration, close monitoring and turning, the waste is ready to be transferred to the recycling plant for final processing to produce a top quality soil improver and other similar products.
In order to improve throughput and product quality, EnVar called in Kiverco to review operations. In July 2014, the local Kiverco area sales manager, JP Devlin, met with Neil Pickard, then executive director of Envar, to discuss the company’s requirements for a new recycling plant. Kiverco serviced the company’s activities and assessed the outcomes desired. Kiverco says such an analysis is “critically important and enables us to gain the best possible understanding of the customer’s present and future needs. During this process, we carry out tests on the input material, to clearly understand its composition and we use the results gained when making the final proposals.”
After detailed discussions, it became apparent that the EnVar site required one purpose designed static plant as opposed to the five separate systems that were being used. The workers had experienced problems as the different plants required individual maintenance and management. It was also vital for EnVar that the new plant could easily cope with the increasing daily volumes of waste being handled at the site and be flexible in terms of the different fractions that can be sifted.

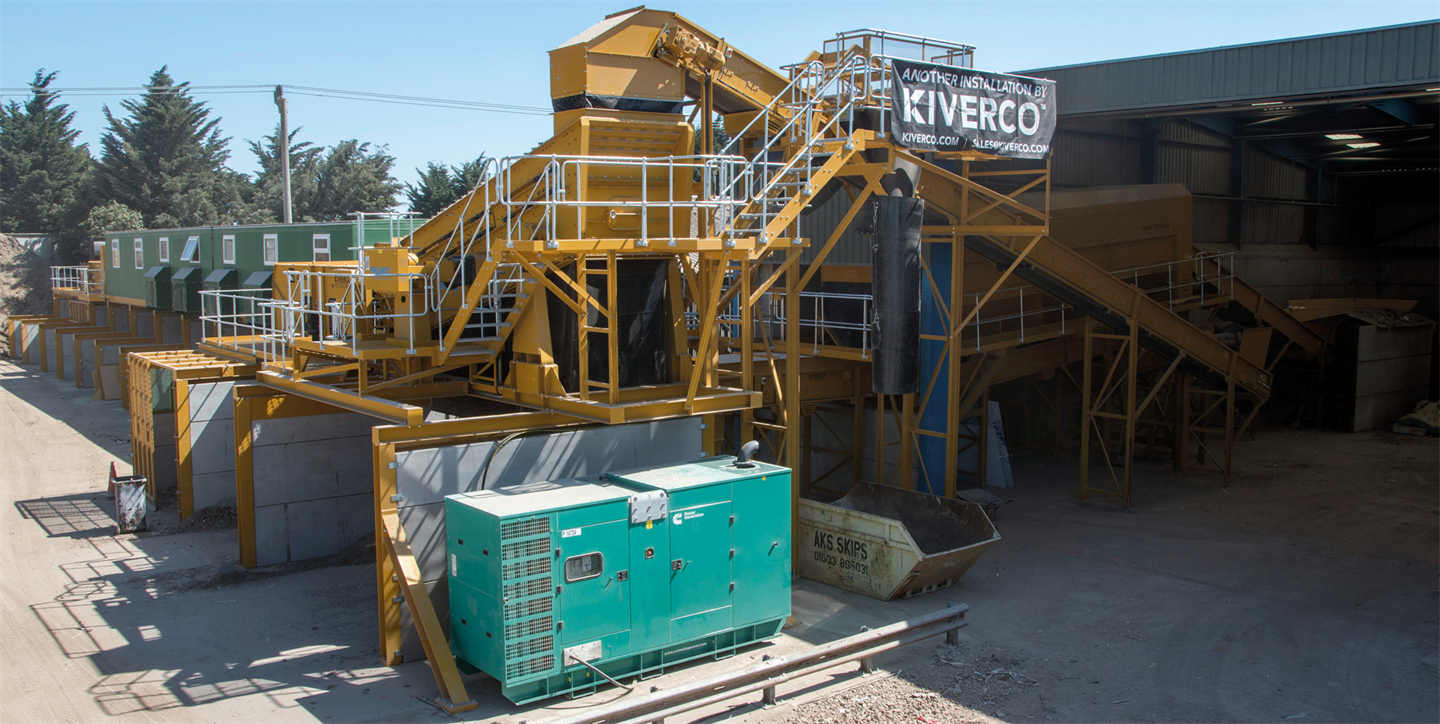

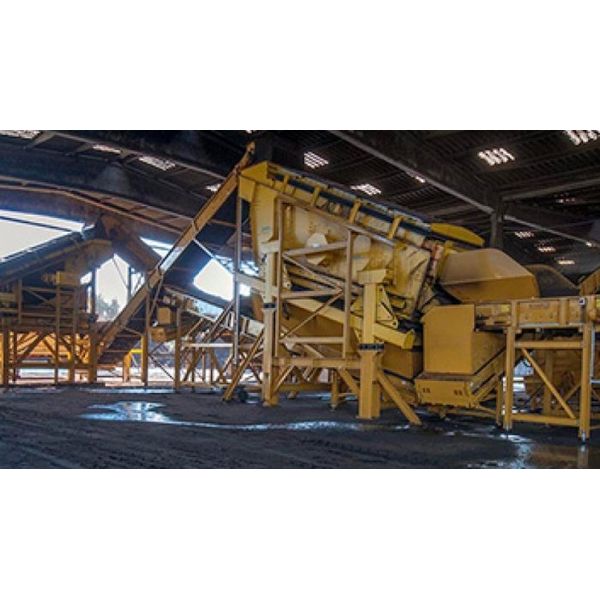

After listening carefully to the requirements outlined by Envar, Kiverco designed and installed a custom built composting plant, able to separate household organics and recover recyclables with maximum efficiency. This plant was unveiled in September 2015.
Commenting on the design of the plant, JP Devlin at Kiverco said:
“When engineering this plant, we were not afraid to do something different to ensure the client had the best solution for their specific needs. This involved us working closely with third parties throughout the process to ensure every element of the plant was perfect for EnVar.”
Ultimately, the Kiverco plant enables the EnVar site to produce a quality, PAS 100 & CQP certified soil conditioner for the agriculture and amateur horticultural markets. Now operating fully, the plant is contributing towards the site processing 105,000 tonnes of co-mingled food and green waste per year.
Richard Adcock, EnVar Site Manager said:
“Kiverco has provided a robust solution with the lengthy lifespan we need. We have locally recruited 5 additional members of staff to assist with the plant, demonstrating how the system will increase our capacity levels. Working with Kiverco, EnVar can confidently look forward to a successful future.”
John Lines, Sales and Marketing Director of Kiverco said:
“It is always a pleasure to work with our customers and see in action the differences that our plant can make to the waste management process. As a company we strive to minimise the amount of waste that is sent to landfill and we hope to help EnVar continue to reach its full potential in the composting industry.”
