Agroforteka JSC products

Engine Perkins 2.2, Maximum output 37kW. Cylinder volume 2200 cm3. Cooling water. Number of cylinders 4. Brakes  Service brake Hydrostatic. Parking brake Wet, multi-plate

Engine Perkins 2.2. Maximum output 45.5kW. Cylinder volume 2200 cm3. Cooling water. Number of cylinders 4. Brakes  Service brake Hydrostatic. Parking brake Wet, multi-plate

AFA 70 is the most effective machine for thinning, feeling and transport of bioenergy. With a total loading capacity of 4500 kilo and new transmission, this machine offers a unique capacity and mobility. AFA 70 can be equipped with different crane tip attachments for different  needs. The machine can also be equipped with air condition and stump treatment as extra accessory. The forwarder has 6 powered wheels and a maximum quated load of 3000 kg. The 2 front wheels are direct drive and the 4 rear wheels are driven wheel motor which are engaged wehen six wheel drive is required. The bunk (2.7 m long) was designed to carry a snigle product of an estimated maximum average length of 4.0 m

Length 4,5m. Width 1,75m. Height 1,80m. Weight 1200kg. Crane`s lifting power 350kg (4m) 210bar. Crane`s boom length 4m. Loading capacity 3 cub. m. (4 tones). Load Supports Grapple 0,18. Grapple max open 900 mm. Rotator Fully circular Valve set 7 sections. Oil preassure 180bar. Oil Flow 30-60 l/min. Weight Valve Set 15-25 kg. Tires 11,5/80x15,3. Center Beam / telescop 100*100*8mm / 80*80*6mm. Ground height 450mm.

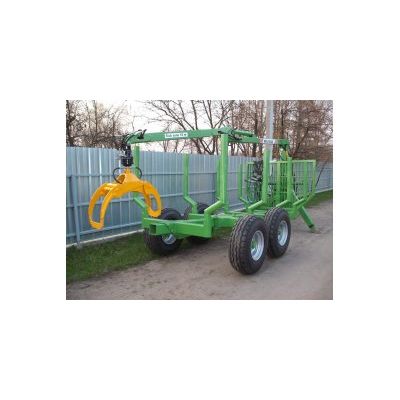

AFA proudly presents a whole new powerful turn house in size 5 suitable for our crane size 4m. A professional turn house in the same popular design as size 16. Slewing torque has increased with 84% in comparison with its predecessor. An increase from 2.24 to 4.12 kNm at 160 bar. Our 6-ton lumber trailer with AFA 4m crane. The AFA-4020 is a compact, modern, lumber trailer with a strong 4m crane whose reach makes it easy to pick up timber behind and around the trailer. The model is intended as a "firewood trailer", for use during simpler forestry work. Various equipment options extend the areas of use. There is a modern crane with linkage system for optimal movement and lifting capacity. The choices of materials and the crane’s characteristics have rapidly made it a favorite among manufacturers of smaller forestry machines. The trailer in the picture is optionally equipped with extension boom; radio controlled winch and insert bucket assembled in the crane`s grapple.

Max. axle load (kg) 9000. Loading area (m2) 1.95. Loading lenght (m) 3.56. Total lenght (m) 6.0. Total wide (m) 2.1. Ground clearance (mm) 500. Wheel dimension 400/60x15,5 (11.5/80R15.3). Weight basic trailer (kg) 2200. Steering angle with frame steering (degrees) 25. Lift capacity net: kNm 33. Slewing torque kNm 8,8. Slewing angle (degrees) 360. Reach (m) 5,0. Telescopic stroke length (m) -. Recommended Oil flow (l/min) 35-60. Working pressure (bar) 175. Lifting force kg full length (excl. grapple/rotator) 450.

We offer AGROFORTEKA cranes with working radii from 5,0 till 6,5m. All models provide great lifting power over a large working radius. Cranes AFA(5.0) have two arms, while AFA(6.0) and AFA(6.5) have a telescopic arm for max. outreach. All models have simple and reliable design as well as overhead lifting cylinder and well set out hydraulic hoses protected from damage caused by swinging logs in the grapple. Different accessories are available.

We offer AGROFORTEKA cranes with working radii from 5,0 till 6,5m. All models provide great lifting power over a large working radius. Cranes AFA(5.0) have two arms, while AFA(6.0) and AFA(6.5) have a telescopic arm for max. outreach. All models have simple and reliable design as well as overhead lifting cylinder and well set out hydraulic hoses protected from damage caused by swinging logs in the grapple. Different accessories are available.

We offer AGROFORTEKA cranes with working radii from 5,0 till 6,5m. All models provide great lifting power over a large working radius. Cranes AFA(5.0) have two arms, while AFA(6.0) and AFA(6.5) have a telescopic arm for max. outreach. All models have simple and reliable design as well as overhead lifting cylinder and well set out hydraulic hoses protected from damage caused by swinging logs in the grapple. Different accessories are available.
