Agromaster - a Registered Brand of Atespar Ltd. products

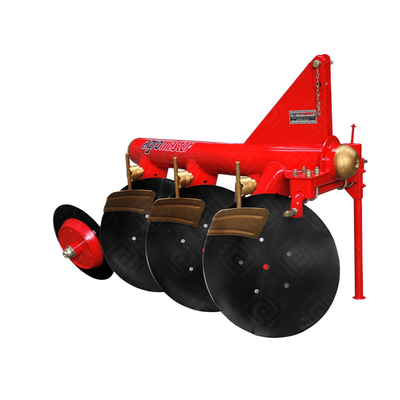

This machine is mounted to tractor`s hydraulic lifting unit and universal three point linkage system. Round frame disc plough is manufactured with 170×7 mm round frame as 2, 3, 4, 5 and 6 discs. 660×6 mm or 710×6 mm diameter discs are made with 50-52 rh hardness corrosion-proof steel and resistance to cracking. The discs can be adjusted according to the soil conditions by means of position and direction angle.

This machine is mounted to tractor`s hydraulic lifting unit and universal three point linkage system. Profile frame disc plough is manufactured with 120×120 mm profile frame as 2, 3, 4, 5 and 6 discs. 660×6 mm or 710×6 mm diameter discs are made with 50-52 rh hardness corrosion-proof steel and resistance to cracking. The discs can be adjusted according to the soil conditions by means of position and direction angle.Dics ploughs have different features from moldboard ploughs. Due to rotational movement of the discs, the tractor tows the machine easily and enables fuel saving. Round frame disc ploughs are used for cultivating of stubbly and fallowing soil, mulching the soil, preparing the seed bed, controlling the weeds and diseases, putting the fertilizer, herbicide and stubble in the soil, decreasing the wind and water erosion and leaving the rainwater on the field.

The primary soil tillage machine is mounted from tractor`s hydraulic lifting unit and universal three point linkage system. Therefore transportation to the field can be easily done.The purposes of tillage are as follows; cultivating of stubbly and fallowing soil, mulching the soil, preparing the seed bed, controlling the weeds and diseases, putting the fertilizer, herbicide and stubble in the soil, decreasing the wind and water erosion, increasing infiltration and leaving the rainwater on the field.Ploughs are manufactured as 2, 3, 4, 5 and 6 moldboard, 85x25mm, 85×28 mm and 90×30 mm diameter sheet frame chassis. Distances between moldboards are; 60 cm, 85 cm and. shall work together with 9,10,12,14 and 16 inch tractor power. By means of safety system of our ploughs, being damaged rate is reduced at the lowest level.

Agromaster profile ploughs are mounted to tractor`s hydraulic arms and universal three point linkage system and can be easily transported to the field. These ploughs are used for cultivation of stubble and fallow soil, loosen of soil, breaking of soil, turning of soil and making of seed bed. During the working plough breaks weeds, prevents the blight, mixes the plant wastes, stubbles, fertilizers and herbicides with soil. The plough also provides to decrease the wind and water erosions, to increase infiltration and to hold the rain water on the field.

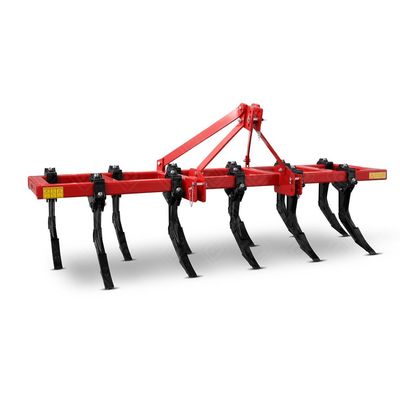

The primary soil tillage machine is mounted from tractor`s hydraulic lifting unit and universal three point linkage system. Therefore transportation to the field can be easily done.Hard ground is composed under 25-40 cm depth below the field that plowed with standard ploughs. Chisel plough breaks the hard bottom of soil under 25-40 cm with long and angled tines. So that rain and irrigation water can reach easily to broken area and provided the water storage. Above the soil is less open because of the slim structure of the tines. So that the moisture can be kept for a long time and also wind and erosion are decreased.

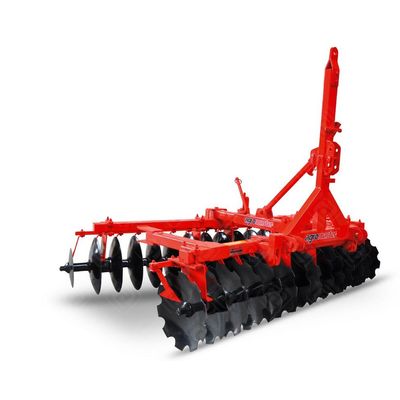

Off set disc harrows mounted to tractor with three point linkage sytem (universal) and trailed by drawbar. Machine can be easily transported to the field.These disc harrows are used for chopping of stems and mixing with soil after harvesting. After using of plough, chisel and cultivators on the field, you can use this disc harrow for breaking of clods and crumbling of soils.These disc harrows are also used on all kinds of soils for making of seed bed, seedling bed, chopping of weeds, mixing of organic and inorganic fertilizers with soil and aeration as easily.Size of frame for this model is 80×80 mm and The number of discs is between 14-22 disc with sizes ; 460/510 and 560 mm high quality 52 HRC bororn steel.It has been used house bearings with conical bearings one side and ball bearing other side with high quality seals. It can be greaseable.

Off set disc harrows mounted to tractor with three point linkage sytem (universal) and trailed by drawbar. Machine can be easily transported to the field.These disc harrows are used for chopping of stems and mixing with soil after harvesting. After using of plough, chisel and cultivators on the field, you can use this disc harrow for breaking of clods and crumbling of soils.These disc harrows are also used on all kinds of soils for making of seed bed, seedling bed, chopping of weeds, mixing of organic and inorganic fertilizers with soil and aeration as easily.Size of frame for this model is 80×80 mm and The number of discs is between 14-22 disc with sizes ; 460/510 and 560 mm high quality 52 HRC bororn steel.It has been used house bearings with conical bearings one side and ball bearing other side with high quality seals. It can be greaseable.

Fixed Rotary Tiller is a secondary tillage tool used in preparing seed-beds, stubble-ploughing in especially fields, vineyards and gardens. It is driven by the cardan shaft, power take-off drive of the tractor.It is also multi-purposed and long-lasting environment-friendly machine that helps with the increase of the humus content of the soil by incorporating the plant residues and organic fertilizer in the soil and it does not make it a necessity to fight with chemical weeds.The fact that the motion coming from the power-take-off shaft is transferred to the blades through the gear system makes saving on power and fuel in proportion to the chain system.The milling cutter blades shreds, mixes and crumbles the soil by operating vertically on the surface of the soil. It provides the water-air balance of the soil by making it loose. Shaft has a safety device (clutch), that protects the machine and the tractor in case of stone or grass roots compaction.

Rotary tiller with variable speed is equipped with the option of variable-speed gearbox. The motion obtained from the power-take-off through the changeable speed of gears in gearbox makes it possible to use the rotational speed of the blades differently; in this way, an effective shredding and mixing operation is provided.By means of the metal plate which is placed in rear, it enables to re-shred the dashed soil and protect environment from the risk of harm.

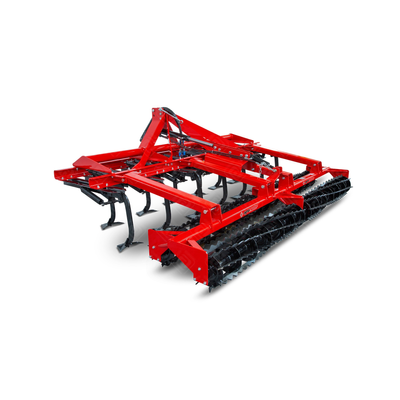

Tubular Frame Cultivator is a secondary soil tillage machine is mounted to tractor`s hydraulic lifting unit and universal three point linkage system, hydraulically mounted type machine. Therefore transportation to the field can be easily done.Tubular Frame Cultivators are used for preparing the soil before sowing by uprooting the weeds for to make fertilizer and preparing the seed-beds.Thesecultivatorsare manufactured as 5, 7,9,11,13,15,17 tines.
