Pumping system equipped with timer,feed water filter,intake solenoid valve,exhaust solenoid valve and 1M outer pressure tube. No drippings from nozzles while the operation comes to a stop.

LxWxH (cm): 27 x 18 x 25; N. W. (kgs): 5; Plunger Dia. (m/m): 20; (m/m): 15; Plunger number: 2; Spray R.P.M. (rpm): 600 ~ 1500; Water absorbing capacity (L/Min): 6 ~ 14; Water feed R.P.M. (rpm); Water feed capacity (L/Min); Pressure: Max. (kg/cm2): 50; Spraying (kg/cm2): 30; Water feed (kg/cm2); HP: 1/2; Standard belt pulley: 5xA1; Water absorbing,feed bore (inch): 3/4; Revolving water bore (inch): ½.

LxWxH (cm): 35 x 27 x 30; N. W. (kgs): 11; Plunger Dia. (m/m): 22; (m/m): 18; Plunger number: 3; Spray R.P.M. (rpm): 600 ~ 800; Water absorbing capacity (L/Min): 10 ~ 16; Water feed R.P.M. (rpm): 700 ~ 1000; Water feed capacity (L/Min): 14 ~ 20; Pressure: Max. (kg/cm2): 50; Spraying (kg/cm2): 35; Water feed (kg/cm2): 20; HP: 1; Standard belt pulley: 7-1/2xA2; Water absorbing,feed bore (inch): 3/4; Revolving water bore (inch): ½.

LxWxH (cm): 35 x 27 x 30; N. W. (kgs): 11; Plunger Dia. (m/m): 22; (m/m): 18; Plunger number: 3; Spray R.P.M. (rpm): 600 ~ 800; Water absorbing capacity (L/Min): 10 ~ 16; Water feed R.P.M. (rpm): 700 ~ 1000; Water feed capacity (L/Min): 14 ~ 20; Pressure: Max. (kg/cm2): 50; Spraying (kg/cm2): 35; Water feed (kg/cm2): 20; HP: 1; Standard belt pulley: 7-1/2xA2; Water absorbing,feed bore (inch): 3/4; Revolving water bore (inch): ½.

LxWxH (cm): 40 x 30 x 35; N. W. (kgs): 14; Plunger Dia. (m/m): 30; (m/m): 20; Plunger number: 3; Spray R.P.M. (rpm): 600 ~ 800; Water absorbing capacity (L/Min): 30 ~ 46; Water feed R.P.M. (rpm): 700 ~ 1000; Water feed capacity (L/Min): 35 ~ 48; Pressure: Max. (kg/cm2): 50; Spraying (kg/cm2): 35; Water feed (kg/cm2): 20; HP:  2 ~ 3; Standard belt pulley: 9xA2; Water absorbing,feed bore (inch): 1; Revolving water bore (inch): ½.

LxWxH (cm): 40 x 30 x 35; N. W. (kgs): 16; Plunger Dia. (m/m): 30; Plunger number: 3; Spray R.P.M. (rpm): 600 ~ 1000; Water absorbing capacity (L/Min): 24 ~ 30; Working Pressure (kg/cm2): 10 ~ 60; Motor HP: 2 ~ 3; Engine HP: 5.5 ~ 6.5; Standard belt pulley (kg/cm2): 9"A2; Water absorbing,feed bore (inch): 1; Revolving water bore (inch): ½.

LxWxH (cm): 42 x 35 x 36; N. W. (kgs): 15; Plunger Dia. (m/m): 30; Plunger number: 3; Water absorbing capacity (L/Min): 30 ~ 45; Spray R.P.M. (rpm): 800 ~ 1000; Working Pressure (kg/cm2): 60; Motor HP: 2 ~ 3; Standard belt pulley (kg/cm2): 7-1/2xA2; Water absorbing,feed bore (inch): 1-1/4; Revolving water bore (inch): 11.

New Model: High pressure spray washing machine (ceramic plunger, no need of grease)

New Model: High pressure spray washing machine (ceramic plunger, no need of grease)

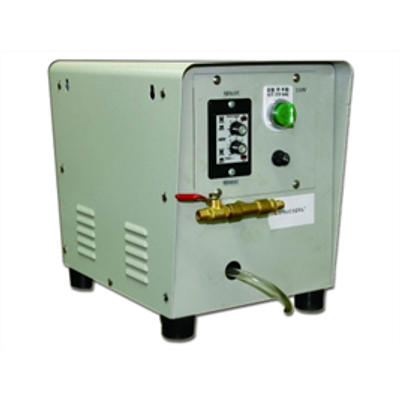

AD500 Specialty: Pumping system equipped with timer,feed water filter,intake solenoid valve,exhaust solenoid valve and 1M outer pressure tube. No drippings from nozzles while the operation comes to a stop.
