Aqualine Inc products
Quick Couplings Valves, Keys & Swivels
Model QC-075 & QC-100 - Quick Coupling Valve (QC)
Heavy duty brass construction. Strong corrosion-resistant stainless steel internal valve spring. Wrench flats at base. Self cleaning seal design. Available as one piece or easy to service two-piece design. Available with locking rubber lid. 150 psi pressure rating. 5 to 100 gpm. Five-year warranty
Dielectric Unions
Dielectric Union (DU)
Galvanized x Brass. Maximum working water pressure: 250 PSI. Maximum working water temperature: 210˚F. Thread connections: ANSI B1.20.1. Copper connections: ANSI B16.18. Available in sizes: 1/2” - 2”. IAMPO/UPC-NSF 61.4/AB1953 listed
Brass Impact
Model I50 - Brass Impact Sprinkler
Twenty-five degree trajectory. Brass body with white bronze arm. Single nozzle. Full circle coverage. Highest point of spray is 5’ above nozzle. Multiple nozzle sizes available

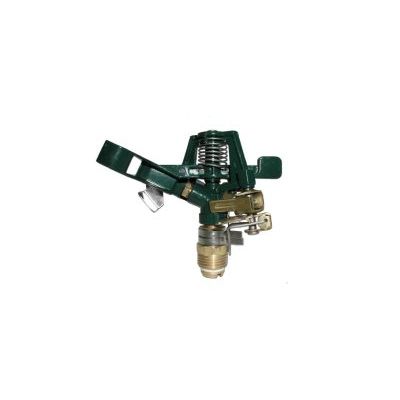

Zinc Impact
Model Z50 - Zinc Impact Sprinkler
1/2¡¨durablezincimpactsprinkler. 5/32¡¨brassnozzle. Fullorpartcirclecoverage. Diffuserpin&deflectorplate. Brassandstainlesssteelparts. Areacoverageupto85¡¦indiameter
