Argiles, SA products

Kubota 1505 Engine, 26 HP 19KW to 2400rpm, Diesel cooled by water complying with the European regulations about pollution. Hydrostatic pto shaft. ·Reinforced differential at 1800 mm between centre of wheels ·Traction to the 4 wheels and 4 steering. Model of wheels can change depending on the required height. Wheel 15.0 X 55 -17” ·Parking brake with negative activation. · Tanks, oil and diesel fuel ·Total approximate size 7600mm long x 2550 wide x 3400mm high (the total length depends on chosen options) Harvesting Equipment: Conveyor belts with curved nerves Total working width 12.500 mm. Arm width 300mm Reception tray 600 x 1000mm to each exit of arms. Arms folding in 4 sectors (3 with hydraulic activation + 1 manual) Loading and unloading platform, individual working. 2000mm long, hydraulic folding and ¾ chain with wings. 5600mm long central platform with capacity for 4 crates, 3/4 chain without wings. ·Suncover in white PVC.

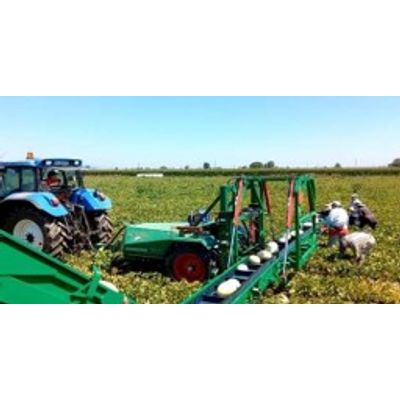

FH-T4 series machine for the harvesting of vegetables, trailed by tractor: · 2 fixed wheels . · The width between the center of the 2 wheels is 1.800 mm · Control board with all the hydraulic movements on tractor`s cab with 3 m wire to be unplugged by leads The system of collection consists of: · 2 arms with 12 m outstanding working width with hydraulic folding system. · 1 line of high quality 300 mm wide feeding padded conveyor belt for melon and watermelon · Hydraulic folding device, witrh 2 movements/ sections for each side. · Working height of all the equipment, hydraulically adjustable, from 800mm. to 1.200mm. · 2m high unloading point, located to the left to ease more storing capacity · It allows to regulate the speed of the belts manually by an hydraulic mechanism. · Eye-ring hitching Machine not suitable for products over 10Kg

Machine for Harvesting Fruits Pruning and Mounting Nets. Apples, pears, Peaches, Avocados, plums. 3 meters Long Lifting Platform - Capacity for 2 Bins 1.20m to 3m high; 1,80m to 3,2m wide Kubota Engine 3 pistons 1105V at 25HP cooled by water Hydrostatic PTO shaft 2 Speeds from 0 to 11 km/h with Hydraulic speed gear with Selector Hydraulic Negative Brake Servohydraulic steering and emergency stops by 6 points 2 Motor Wheels 10,75/13 series 2 Side Steering Wheels 10,75/13 series Protruding Balconies by 500 mm

Kubota motor 4 cylinders 35 HP, Cooled by water. Hydrostatic Transmission 2 speeds, from 0 to 16 Km/h. Parking brake. Servo-hydraulic direction. 2 Driving wheels 10.75/15.3. 2 Lateral Direction Wheels 7.50×16. Hydraulic lateral platforms, 2 levels. Equipment of Harvesting of 6 Adjustable Arms. Kit Radio-Cassette. Complet Bin Trailer with 8 hydraulic maneuvers. Bin Trailer Level down (Full Bins) with Double row of Chains. Bin trailer Above Level (Empty Bins) with Simple Chain.

Lombardini motor 3 cylinders 25 HP, Cooled by water. Hydrostatic Transmission 2 speeds, from 0 to 14 Km/h. Parking brake system. Servo-hydraulic drive system. 2 Motive wheels 10.75/15.3. 2 Directional Lateral wheels 7.50×16. 2 independent platforms, with gangplank and hydraulic level. Hydraulic elevator, in front. Hydraulic elevator, behind. Displacement of the bin with roller. 4 meters of Platform

Different models and versions. Dragged and Self Propelled.

Different models and versions. Dragged and Self Propelled.

A versatile model. Self-propelled machine for harvesting vegetables. Features that make the difference: Kubota 68 to 82 hp motors. 4-wheel drive and 4-wheel steering. The back wheels are auto-centering and the front wheels have an auto-guidance system. Cleaning tunnel with a water recycling system. Different unloading systems. Different machine configuration options for adaptation to all needs.

Individual transport of fruits. Field classification by weight and volume. Different types of buckets for each product. Drag chain without maintenance.

Self-propelled machine for vegetables harvesting. Ideal size for greenhouses and also exterior.
