6 products found
Bateson Trailers Ltd Products
-
Unbraked Trailers
Trailers do not have to be fitted with brakes until the gross weight exceeds 750 kg, or if the weight of the trailer and load does not exceed half the weight of the towing vehicle. This has many benefits, the trailer cost is much less and maintenance is greatly reduced. Most small trailers available are of the camping trailer type and do not stand up to commercial applications. Our platform trailers 520, 720 and 72H are manufactured, using many of the same materials and to the same standard as our 3500 kg trailers.The independent rubber suspension axles on all models use sealed bearing hubs with a 1300 kg capacity and never need adjustment.
-
Bateson - Model B64 - Unbraked Trailer
6′ x 4′ General Purpose trailer with ramp tailboard. Shown with optional mesh extension sides and spare wheel (ramp door standard). B64 is a heavy duty un-braked trailer with a 6′ x 4′ body and a capacity of over half a ton. It is fitted standard with a ramp door to load machinery and equipment, a standard low door can be fitted to special order if required. Many are supplied with mesh extension sides ...
-
Livestock Trailers
Bateson Livestock Trailers have been in production for over 70 years during which time they have developed continuously to keep abreast of ever changing legislation with regard to motor vehicles and the transport of animals. We have taken care to keep the trailers as simple and light as possible without sacrificing strength in order to cope with the harsh environment in which they may operate.
-
Bateson - Model 12LT 6′ x 4′ - Livestock Trailer
6′ x 4′ x 4′ Livestock Trailer for use with cars and light vehicles. Model 12LT is the smallest trailer in our Livestock Trailers range and the only one with a single axle. It is suitable for calves, sheep and pigs. All models have a hot dipped galvanised chassis and are panelled with 2mm toughened alloy sides and a plastic coated galvanised steel roof. The floor is 18mm Phenol coated panels covered with aluminium tread-plate and ...
-
Bateson - Model 30LT 8′ x 5′ - Livestock Trailer
8′ x 5′ x 6′ Livestock Trailer for use with cars and light vehicles. Model 30LT is the smallest trailer in our Livestock Trailers range that will accommodate two cattle. It is It is lightweight and ideal for use with cars or smaller towing vehicles. All models have a hot dipped galvanised chassis and are panelled with 2mm toughened alloy sides and a plastic coated galvanised steel roof. The floor is 18mm Phenol coated panels ...
-
Horsebox Trailers
Our design experience utilising the latest durable materials has enabled us to produce a stylish range of horse trailers, which combine a low unladen weight, exceptional strength, good aerodynamics and stable towing characteristics. The chassis and frames are all hot dipped galvanised steel with a semi monocoque construction allowing a low floor height and a lower centre of gravity than our competitors also providing increased ground clearance, less unladen weight and an extra 3” headroom within the same overall height.
-
Bateson - Derby Lightweight Horse Trailer
Lightweight, rear unload, double horse trailer. The Derby is a modern rear unload double horse trailer with 7’ headroom. Its exceptionally low unladen weight makes it suitable for use behind larger saloon cars. The maximum gross weight is 1700kg but this can be reduced as required if used with only one horse. If the total weight of car trailer and load is less than 3500kg it can be used with the new standard car driver’s license. The ...
-

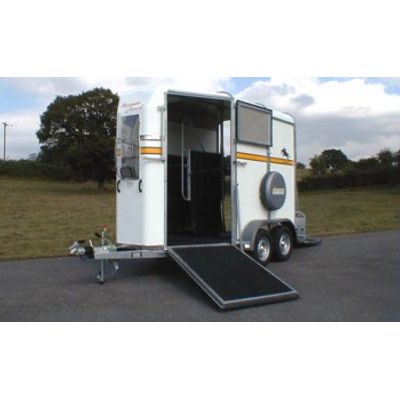

Bateson - Deauville Horse Trailer
The Deauville is our most popular front unload horse trailer, with a generous 7’ 3″ headroom allowing horses up to 17 hands to be transported. The centrally hinged division is very easy to operate and allows plenty of space for entry and exit. The Deauville has a double internal saddle rack and cover that can remain in place during unloading. The larger front window incorporating a coupling mirror, combined with the white interior gives a ...
-
General Purpose Trailers
This range of general purpose trailers has been designed to offer maximum strength with a low unladen weight, combined with modern appearance and safe, stable towing characteristics. All models have a hot dipped galvanised steel chassis with 2mm thick pre-galvanised steel sides 300mm deep and an 18mm phenol coated non-slip plywood floor. The independant rubber suspension axles have auto reversing brakes, operated by a cast steel hydraulic damped over run coupling with a power assisted hand brake and integral jockey wheel. Full road lights are fitted and the specially designed damage resistant mudguards are fitted with aluminium tred-plate ‘stand on’ tops on twin axle models.
-
Bateson - Model 0842 - General Purpose Trailer
8′ x 4′ Single axle general purpose braked trailer. 0842 shown with optional ramp tailboard. Model 0842 is a low loading general purpose trailer which will accept loads of 1 ton and 8 feet by 4 feet with ease. With a single heavy duty axle it is easy to manovre and couple up. Often supplied with a ramp door or ladder rack it is ideal for building work and property maintenance and can be used with larger cars and medium vans.The independent ...
