Baxley Equipment products

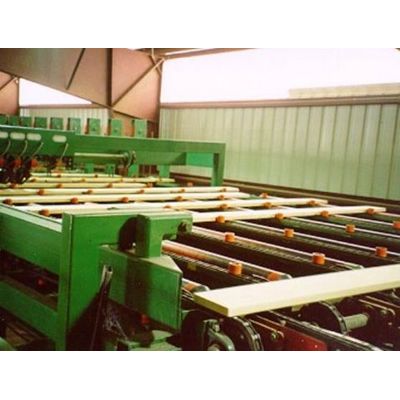

The Transverse Edger System by Baxley Equipment is designed to optimize sawmill operations by facilitating efficient board processing. This system is essential for converting rough lumber into precisely edged boards, ensuring minimal material waste and enhancing product quality. It incorporates advanced automation technologies to improve throughput and accuracy. Suitable for integration into existing production lines, the Transverse Edger System is engineered to handle high volumes with reliability. Technical specifications include sensors for board positioning, variable speed drives for customizable operations, and robust construction for durability under continuous use. This system is an ideal solution for enhancing productivity and achieving consistent output in high-demand timber processing applications.

81X chain with roller lugs. Designed to even end short lumber from far end. 8″ diameter even ending rolls. 5 HP VFAC drive. UHMW covered fence for shock absorption.

The High Speed Servo Lug Loader is designed to improve productivity in timber processing facilities. It features five-lobed cams driven by an Allen-Bradley servo motor and gearbox directly coupled to the drive shaft. This eliminates the need for clutches or lumber hold-back arms that can interfere with board feeding when backlog is low or when skipping a lug is necessary. The system includes electronically variable timing that adapts based on product width and speed. Technical specifications include 81X declining backlog chains approximately 6 feet long, an air operated overhead hold-down mechanism, a backlog control photocell array, and fixed lumber stops. The loader also comes with an Allen Bradley ControLogix PLC, a Servo interface card, and pre-programmed software to ensure seamless operation. Notably, it is designed with US and Canadian patents pending.

Stick Belt : 12” wide x 30’ long. 5HP AC drive. Stick Hopper / Unscrambler : Three (3) Lines 81X chain with bar lug attachments approximately 8’ tall. Driven from transfer chains. Plated hopper, incline and side walls. Support to ground. Diverter tipple for sticks and cross-outs. All necessary field devices.

Clear span mounting frame work. 5 HP SM-Cyclo AC drive. Adjustable bearing mounts for optimum “roll gap”. All necessary field devices.
