BDC Systems products

Products -Grain Drying

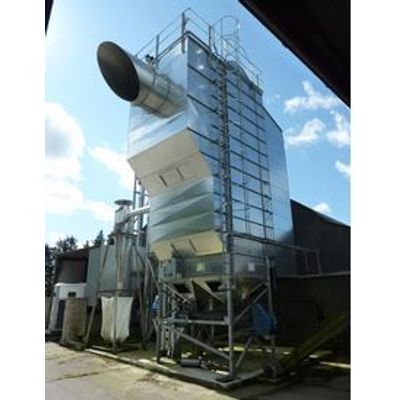

Svegma - Continuous Flow Plant

Designed and engineered for the UK market by BDC Systems. Capacities from 5.0 to over 100 tonnes per hour. Fully galvanised construction. Oil or gas (direct or indirect) or biomass heat source. Fully automated control panel incorporating failsafe shutdown and monitoring. Low noise and dust levels. Low power requirements. Compact modular design for easy installation and future extension. Unique lateral fixing maintains clean grain column ideal for malting barley and seed. Pulse discharge for even drying. Air plenum flanges turned down to self clean. Fan air volume control for ease of drying small seeds. Optional Turboclean dust extraction unit. Efficient variable cooling or run ‘all hot’. Easy and flexible operation, small batches possible. CE marking and compliant with quality assurance standards.

Svegma - Batch Grain Drying System

The same construction and features as the Svegma continuous drier. Wide range of models to suit all applications. Shutter discharge. Clean internal grain column. Static batch with quiet centrifugal fans. Recirculation option for faster drying. Simple single batch or fully automatic continuous batch. Air control shutters allow drying of smaller batches. Capacities 5-30 tonne batch (larger available). Oil or gas fired, also indirect fired heater. High spec control panel with touch screen control. Suitable for cereals, pulses, small seed and other granular products. Free Planning and Product Advisory Service available.

BDC - On-Floor Grain Drying System

Standard Ducts 3′ and 4′ wide. Special width Ducts available to suit alternative systems.

Products - Grain Conveying & Elevating

Skandia - Conveyors & Elevators

The moving parts are critical to a grain handling system. It is in the moving parts where the risks of downtime and malfunctions arise. If such incidents occur the whole production stops, which is always very negative for our customer. BDC systems offer moving parts from Skandia Elevator a manufacturer who prioritises high quality products with minimal risk of downtime and this is important for us to highlight. That is why we display the quality label “Moving Parts from Skandia Elevator” along with the products and information about them.

Products -Grain Cleaning & Weighing

BDC - Rotary Drum Cleaners

Rotary drum cleaners with capacities from 10 tph to 360 tph with or without aspiration. Variable drum speeds. Industrial quality.

Denis - Reciprocating Cleaners

20-250tph capacities. Steel construction steel or timber sieve boats. Single and double aspiration units available. Range of fittings to suit.

BDC - Aspirators

Dust and Chaff extractors, capacities from 30-150tph. Commercial duty over 60tph. Aspirator pre-cleaners, capacities from 30tph to 150tph. Commercial duty over 40 tph. Industrial quality cyclones, rotary valves and fittings available.

Products - Grain Storage

BDC - Flat Bottom Round Silos

4 meters to 27 meters diameter. 18 cu.m to 18162 cu.m. Shallow Corrugation 600gm/m2 galvanized wall sheets. Full range of catwalks and ladders available. Lateral or plank floor aeration systems. Full range of combination sweeps and unloading augers. Aeration systems to suit. Free Planning and Product Advisory Service available.
