Belsilo products

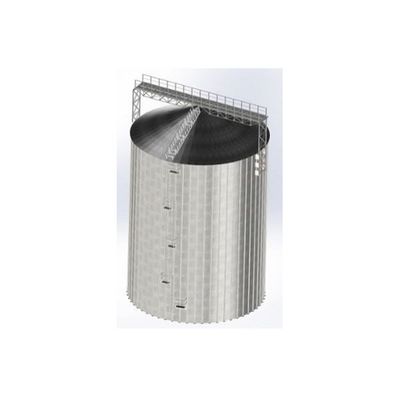

Flat bottom silos are designed for short-term and long-term storage of cereals, legumes and oilseeds with moisture content up to 14% (rapeseed up to 9%) and weediness up to 3% with active ventilation and constant temperature control. Silos with technological equipment are used both as part of grain cleaning and drying complexes and seed lines, as well as in the form of separate buildings, as part of grain storage facilities with various numbers and locations. BelSilo produces silos with a diameter vary from 5.5m up to 32m and a capacity of up to 20 thousand m3.

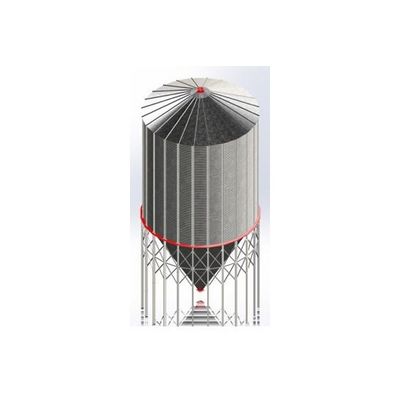

This type of silo is mainly used for short-term storage of grain crops during the cleaning and drying cycle. The storage volume of BelSilo hopper silos varies from 12 to 1500 m3. Cone silos are used both for the operational circulation of raw materials and for long-term storage as part of seed lines. The Silos feeding is carried out by conveyors located on the galleries. Feeding intensity can reach 1200 tons per hour.

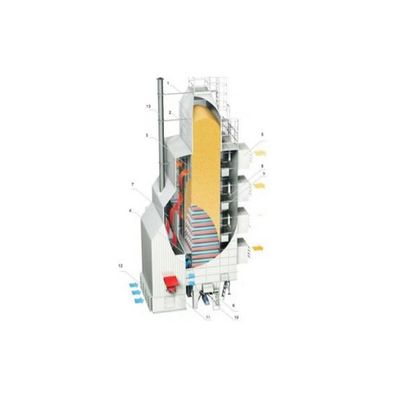

Roof, Unloading zone, Drying units, Cooling sections, Discharge sections, Unloading system, Air inlet chamber, Air outlet chamber, Air regulation shutters, Cooling air regulation shutters, Heat generator with burner, Intake air regulation shutters and Pipe.

BelSilo also specializes in the production of steel structures for elevator complexes. The material of manufacture, depending on the purpose of structures, can be of two types:
