Ben Wye Engineering Pty Ltd products

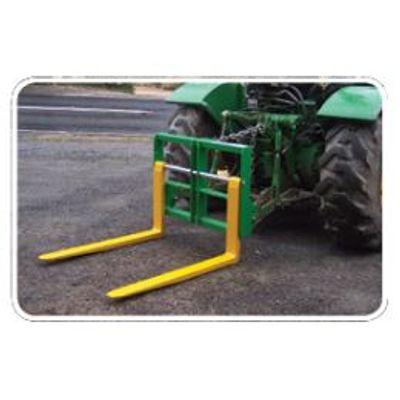

Additional models can be designed on request which are designed using the latest 3D design software. Two stage Clearview mast design with 2 hydraulic lift cylinders tucked in behind he mast profile to give the operator great vision through the forte mast. Industrial mast section with over a 20mm flange thickness and hot rolled to a tolerance of half a millimeter make the mast incredibly strong and accurate. The combination bearing is the precision that allows the unit to take up to 1500kg with superior accuracy. The fork tines with 3 standard models in our range. The 100 x 40mm tine which are eye mounted on a 38.1mm 1045 grade chrome bar for strength and movability.

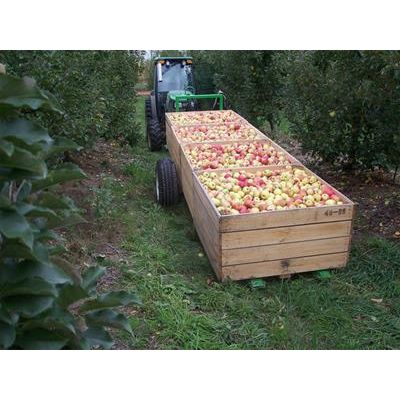

Bin Loaders are a self loading and unloading trailer designed for transporting fruit bins in and out of the orchard quickly and efficiently, without the operator having to leave the tractor seat. Ben Wye Bin Loaders are of heavy duty construction and use a fully hydraulic cam axle to lower the forks under a standard fruit bin, and then with the aid of bi-directional hydraulically driven roller chains, the bins are pulled back up onto the Bin Loader. This process is repeated until the Bin Loader is to maximum capacity. Simply reverse the process to unload the fruit bins from your trailer back at the packing shed.

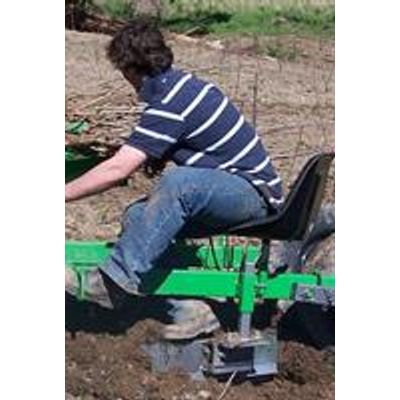

Keep your tree growth, chemical use and pruning to a minimum with a Ben Wye Root pruner.. Hydraulic controlled angle adjustment 40 to 90 Degree Blade adjustment. 3 x 16mm thick Bisalloy 400 blades with milled knife edge. Hydraulic depth control with 915mm stroke on depth. Manual side and wheel adjustment (hydraulic optional). Extra heavy duty 150 x 150 x 9 and 125 x 125 x 9mm telescopic RHS. Rear height control wheels.

Single Rotor Slashers are designed for 35-100hp tractor range and come in 4 different sizes which have the following features. One piece folded and fully reinforced HU300 grade 4mm or 350 grade 5mm main deck with a easy clean top design. Dual Category pick up pins Cat 1 & 2 with slotted link for contour following. Heavy duty rolled hollow section headstock with RHS rear support arms for ultimate deck strength which is available in either Centre Mount , Offset or double headstock.

Twin Rotor Heavy Duty Slashers are designed for 35-80hp PTO tractor range and come in 8 different sizes which have the following features.. One piece folded and fully reinforced HU300 grade 4mm or 350 grade 5mm main deck with a easy clean top design.. Dual Category pick up pins Cat 1 & 2 with slotted link for contour following.. Zinc plated 10mm Front and rear safety chain curtains with wire rope replacement system.. Available in either centre mount, offset or double headstock (some models only).. Drive Shaft is a telescopic trilobal profile in either a 6 or 8 series shaft with an easy maintenance lever lock cover.. Fixed sides or Twin Side Delivery.

Twin Rotor Drop Centre Slashers are designed V type inter rows , the wings free float and can accurately follow the V contour. They are suited to 40-120hp tractor range and come in 7 different sizes which have the following features. Three piece folded and fully reinforced HU300 grade 4mm or 350 grade 5mm main deck with a easy clean top design. Full length stainless steel hinge pins for ultimate strength and longevity. Come standard with 2 rear and 3 front rollers to follow ground contours of V-Shaped vineyards or orchards.

Triple Rotor winged Slashers are three piece winged units for following the contours of V or U shaped ground. They come standard with a 150hp transmission kit and cater for the 50hp—150hp PTO tractor range. There are 5 standard models which have the following features.

Flexwing slashers are available in 3 standard widths and are designed for cutting wide areas, mounded orchards, road verges and just about anything else. They have the versatility of folding up to transport width without leaving the tractor seat and the wings float independently up to 30 degrees and down to 15 degrees over uneven terrain to give a uniform cut. Couple that together with a mechanical level lift system with fine adjustable hydraulic cylinder mounted on spring suspension, 150mm blade overlap with updraft blades and you have one of the most versatile and heavy duty Australian made rotary cutters on the market.
