Beri Udyog Pvt Ltd. products

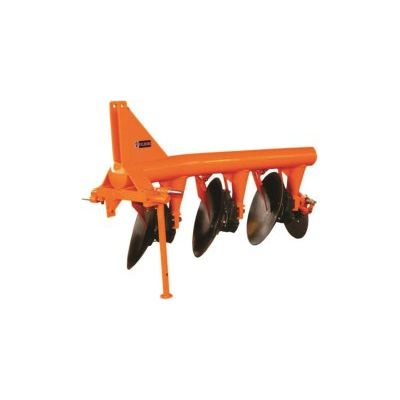

FIELDKING Disc Plough can handle the toughest ploughing jobs. For extremely hard ground and soil with large roots and other obstructions, one can obtain outstanding penetration performance. For soft sticky ground and sandy soil, depth can be controlled through the built-in depth control. The under frame and unit-to-unit clearances are adequate to cope with trashy conditions. Perfect alignment of the sub-beams carrying the Disc bottoms is maintained by virtue of the frame construction. An adjustable and spring-loaded furrow wheel takes care of the side draft and the implement moves smoothly. Disc tilt angle can be varied in three stages to perform on various types of soils.

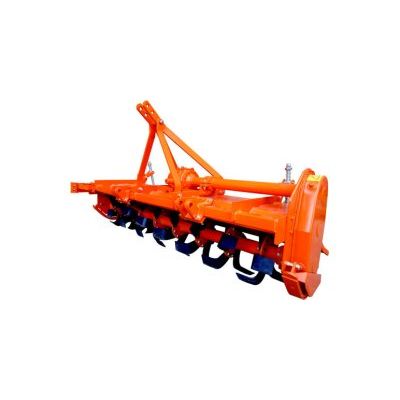

Single Speed Gear Drive Rotary Tiller is more suitable for hard/sticky soils. Side gears are less prone to breakdowns in tough soil conditions.

Disc Ridger consists of heavy duty tubular box frame, hitch system and discs. It is used for making irrigation banks of up to 500 - 600 mm height and 600 - 800 mm width for effective control of flood irrigation or bunds of the size and shape to match crop and soil conditions. The Discs are adjustable along the frame to vary bund width and height. Even the disc angle is adjustable.

It has a Semi automatic dual speed gear box, which provides option of 2 different rotor rpm for different soil conditions and applications. We can easily change the rotor speed with the lever attached , without removing the back cover of the gear box. Heavy duty side gear drive in oil bath which ensures high performance in all working conditions. It can loosen & aerate soil up to 7 inches deep. Heavy duty spring assembly in plank which ensures perfectly leveled and finished seedbed.

Used in open field workings for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains. To air the soil and to eliminate the weeds. For breaking the roots. It can be used in light and medium soil. Quick hitch compatible. Tillage depth of the harrow is 4"~6".

The disc plough is designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing. It is used to open the new fields and to process the stony areas. It can be used easily at rocky and rooted areas. It is specially useful in hard and dry trashy land conditions and in soils where scouring is a major problem. It is being produced with 2-3-4 and 5 bottoms with an option for extra kit for furrow addition. It is directly mounted to the tractor. Extra heavy-duty pipe frame has high trash clearance allowing the plough to operate despite heavy crop residue.

The sub soilers are deep tillage implements specially designed for breaking up hard pan layers and loosening the subsoil allowing better drainage, root growth and mineral osmosis. It can be safely used for heavy duty applications, as the shear bolt arrangement protects the implement from getting damaged due to hidden obstacles like underground stones & roots. It increases soil turnover by reaching deeper organic matter layers. High quality wear-resistant steel used for the shovel, which gives it a long life in the toughest conditions. The heavy duty pointed chisel shatters the soil well below the surface, thus increasing the water holding capacity. Specially designed tyne is capable of penetrating up to 700 mm deep Tyne edge to reduce wear & tear of tyne

Multi row cultivator is used for proper cutting and aeration of soil, which makes the soil more fine for better plantation. This is designed for light and medium soils. The spring steel tyne is so designed that it does not need separate spring. The tynes are adjustable and the residue/weed almost never gets entangled with tyne while ploughing. Optionally, crumbler helps to control the depth and level of the soil as well as convert the soil into fine particles. The coil shape tynes get strength because of unique design in which the stress prone areas resist any distorting forces.

It can produce ridge with maximum width of 1000 mm. Available in 2 bottoms & 4 bottoms to make one ridge & two ridges respectively. It has heavy duty box type frame. High quality boron steel disc with 48-52 HRC hardness. Size and depth of the ridge can be adjusted.

Power Harrow is used to turn, break, refine and even distribution of soil over the entire working width to create a perfect seed bed. It breaks up even the most compacted ground, often in single pass for preparing an area for plantation. Power Harrow consists of multiple set of blades which counter-rotate about a vertical axis, which leaves the soil with a softer look and granulated yet leveled appearance, as required for sowing seeds or seedlings. Rotors run on ball bearings for high power application. Protection shield for upper rotor bearing eliminates possible damage to main transmission. Depth controller is provided for depth control and to level the soil bed. Self-adjustable side stone deflector is provided for safety by not allowing the stones to scatter.
