Berrak Kimya Gıda Tarım ve Sanayi Makinaları İmalat Tic. Ltd. Şti. products

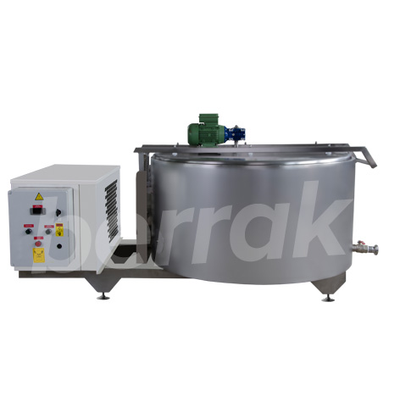

Vertical cylindrical model, entirely from AISI 304 quality stainless steel manufacturing. Hinged lid is one piece. Cooling evaparator (roll-bont) has tested against 40 bar test pressure. 1. Body 2  mm and isolated body is 1.5 mm AISI 304 quality stainless steel , Insulation range is 50 mm with polyurethane without CFC. Adjustable pedestal. Cooling group is on the same chassis with cooling tanks, 404 gas is used. 0,37 kw, 33 d/d reducers and accordingly are winged stainless steel mixer.

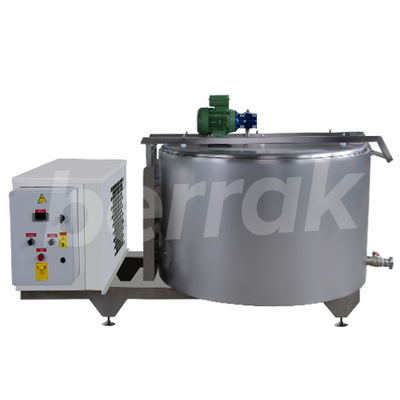

Vertical cylindrical model, entirely from AISI 304 quality stainless steel manufacturing. Hinged lid is one piece. Cooling evaparator (roll-bont) has tested against 40 bar test pressure. 1. Body 2  mm and isolated body is 1.5 mm AISI 304 quality stainless steel , Insulation range is 50 mm with polyurethane without CFC. Adjustable pedestal. Cooling group is on the same chassis with cooling tanks, 404 gas is used. 0,37 kw, 33 d/d reducers and accordingly are winged stainless steel mixer.

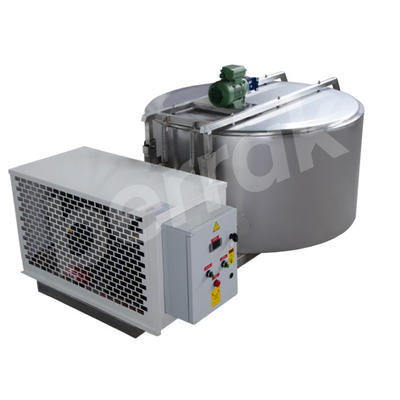

Vertical cylindrical model, entirely from AISI 304 quality stainless steel manufacturing. Hinged lid is one piece. Cooling evaparator (roll-bont) has tested against 40 bar test pressure. 1. Body 2  mm and isolated body is 1.5 mm AISI 304 quality stainless steel , Insulation range is 50 mm with polyurethane without CFC . Adjustable pedestal. Cooling group is on the same chassis with cooling tanks, 404 gas is used. 0,75 kw, 36 d/d reducers and accordingly are winged stainless steel mixer.

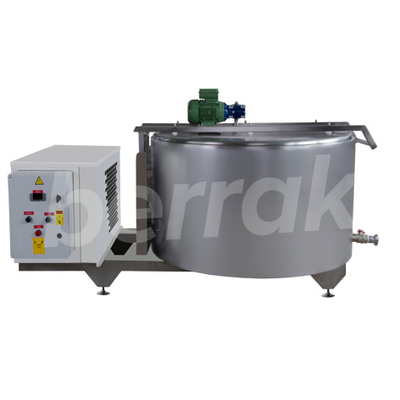

Vertical cylindrical model, entirely from AISI 304 quality stainless steel manufacturing . Hinged lid is one piece. Cooling evaparator (roll-bont) has tested against 40 bar test pressure. 1. Body 2  mm and isolated body is 1.5 mm AISI 304 quality stainless steel , Insulation range is 50 mm with polyurethane without CFC. Adjustable pedestal. Cooling group is on the same chassis with cooling tanks, 404 gas is used. 0,75 kw, 36 d/d reducers and accordingly are winged stainless steel mixer.

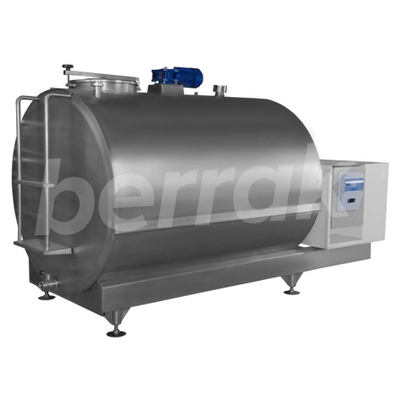

Horizontal cylindrical model, Designed according to 0 liquid discharging system,  entirely from AISI 304 quality stainless steel manufacturing. Cooling evaparator (roll-bont) has tested against 40 bar test pressure. 1. Body 2 mm and isolated body is 1.5 mm AISI 304 quality stainless steel , Insulation range is 55 mm with polyurethane without CFC. Adjustable pedestal and Ø 400 mm manhole lid. AISI 304 quality stainless steel (non-slip) is a ladder. Cooling group is on the same chassis with cooling tanks, 404 gas is used. To prevent sudden current draw of the compressors gradually comes into play. 0,75 kw, 36 d/d reducers and accordingly are winged stainless steel mixer. Automatic washing     (0ptional) Digital level indicator  (0ptional).

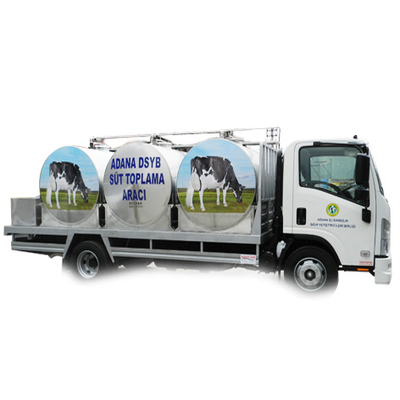

2000 lt Truck-Mounted Milk Transport Tanks.

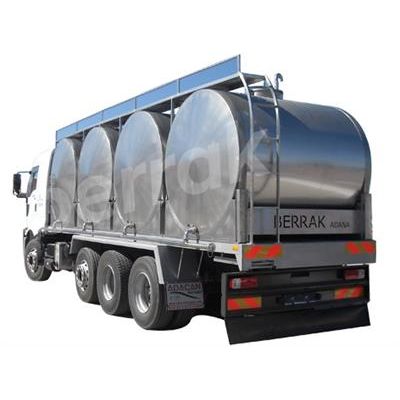

3000 lt Truck-Mounted Milk Transport Tanks.

Manufactured from AISI 304 stainless steel. Sheathed in stainless. It used all of in the food industry. 2000 lt/h,5000 lt/h,10.000 lt/h,20.000 lt/h ,50.000 lt/h capacities.

Manufactured from AISI 304 stainless steel.

The Row Independent Maize Chopper has a working width of 1,25m. and with its cutter and feeder drum it can chop two rows of maize at one pass. One of the most important specification of the machine is its foldable chassis. The chassis can be folded so that the machine stays behind of the tractor. By driving backwards the machine can open a way in the middle of the field in order to decrease the number of turns on the field and decrease the fuel consumption of tractor.
