Bertuzzo Srl

8 products found

Products

  • Auger and Archimede’s Screw

  • Model Type S - Continuos Spirals

    Model Type S - Continuos Spirals

    The continuous spirals “S” type are very robust and thus suitable for handling heavy transport. They are made through a cold-working process we have patented. This system reduces taper and improves mechanical characteristics, giving the spiral a more uniform thickness between the base and the ridge, resulting in dimension accuracy so as to guarantee high durability and resistance of the continuous spirals type “S”

  • Model Type R - Continuos Spirals

    Model Type R - Continuos Spirals

    The “R” spiral represents the most economical and functional transportation system. It is the ideal solution for transporting large quantities in the shortest possible time. BERTUZZO produces a wide range of CONTINUOUS SPIRALS  ”R” type, made of carbon, stainless and Corten steels, with minimum thickness of 3 mm up to 8 mm maximum, with minimum outer diameter of 800 mm up to 400 mm maximum . BERTUZZO has accumulated 50...

  • SPIRAFLEX - Flexible Spirals

    SPIRAFLEX - Flexible Spirals

    IGH TENSILE STEEL FLEXIBLE SPIRALS. The Bertuzzo flexible spiral finds application in various activities, such as: Poultry plants and dosing units, for conveying plastic granules and for any other transportation needs. The Bertuzzo flexible spiral ensures great flexibility, torsion resistance and a perfect functioning of the curves. The Bertuzzo flexible spiral is available in a wide range of sizes, with three profile types (flat, round, square), thus...

  • Horizontal and Vertical Augers

  • Horizontal Augers

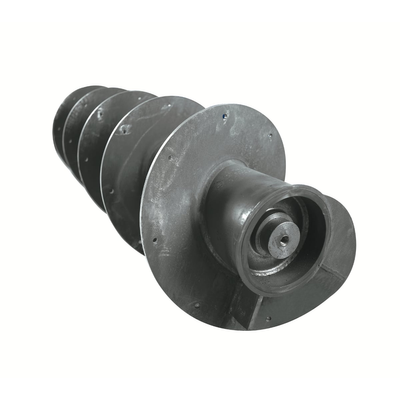

    Horizontal Augers

    Bertuzzo Srl manufactures finished horizontal augers, such as continuous augers or segment-forged screws, both cylindrical and conical, and complete shafts.

  • Gear Box for Rotary Rakes

  • 8 arms Rotary Hay Rake

    8 arms Rotary Hay Rake

    Net weight without oil 67 Kg. Maximum speed of drive rotation 540 rpm. Oscillating angle of the 8 arms 61°. Working ancke 144°. Drive with spline shaft diam. 1″3/8.  Lubrification: extreme pressure oil (SAE 90 E.P.) with ISO220CST viscosity at 40°C. Bevel gear pair: E.P. grease with consistency 2.

  • 9 Arms Rotary Hay Rake

    9 Arms Rotary Hay Rake

    Net weight without oil 69 Kg. Maximum speed of drive rotation 540 rpm. Oscilalting angle of the 9 arms 61°. Working angle 144°. Drive with splineshaft diam. 1″3/8. Lubrication: extreme pressure oil (SAE 90 E.P.) with ISO220CST viscosity at 40°C. Bevel gear pair: E.P. grease with consistency 2. Clockwise rotation version Counter clockwise rotation version

  • 11 Arms Rotary Hay Rake

    11 Arms Rotary Hay Rake

    Double-rotor version available. With phase transformer. Net weight without oil 126 Kg. Maximum speed of drive rotation 540rpm. Oscillating angle of the 11 arms 61°. Working angle 144°. Drive with spline shaft diam. 1″3/8. Lubrication: extreme pressure oil (SAE 90 E.P.) with ISO220CST viscosity at 40°C. Bevel gear pair: E.P. grease with consistency 2. Clockwise rotation version. Counter clockwise rotation version.

  • 13 Arms Rotary Hay Rake

    13 Arms Rotary Hay Rake

    Double-rotor version available. With phase transformer. Net weight without oil 126 Kg. Maximum speed of drive rotation 540 rpm. Oscillating angle of the 11 arms 61°. Working angle 144°. Drive with spline shaft diam. 1″3/8. Lubrication: extreme pressure oil (SAE 90 E.P.) with ISO220CST viscosity at 40°C. Bevel gear pair: E.P. grease with consistency 2. Clockwise rotation version. Counter clockwise rotation version.
