Big-John Tree Manufacturing, Inc. products

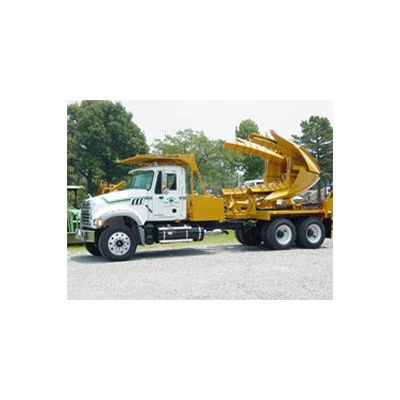

The BIG JOHN Model 45D truck mounted tree spade is used by nurseries, landscapers and the tree moving professional. The 45D gets the job done. Whether you’re B&B’ing or what we call “Dig & Delivering”, the appeal of the M45D is in its compact yet sturdy design and perfect for moving 3` - 4’ caliper trees.

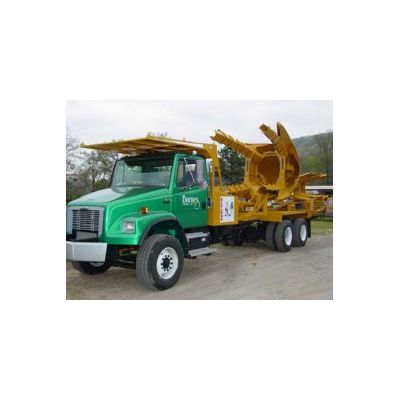

The Model 55D is built with all the rugged characteristics of the larger spades, and works great on a class 7 single axle truck.

The 400 gal (1,514 L) water tank uses 49” (1,245 mm) of space behind the cab. The Model 65D uses 114” (2,896 mm) of frame from the end of the truck forward. Ground to top of frame height – 42”-44” (1,067-1,118 mm). For the Model 65D we require a rear tandem GVW Rating of at least 34,000 lbs. (15,422 kg) (rear axles combined). BIG JOHN recommends a dual axle truck. The red line denotes Cab to Trunnion measurement or CT. The Model 65 requires a minimum CT of 120” (3,048 mm); Big John recommends 130” (3,302 mm). We require a front axle suspension rating of at least 10,000 lbs (4,536 kg) for the Model 65D. Remember to keep cab height in mind when looking for trucks. Generally lower cabs are preferred to minimize the crown of the tree contacting the cab of the truck. Relocating air horns and lights from the cab is advisable.

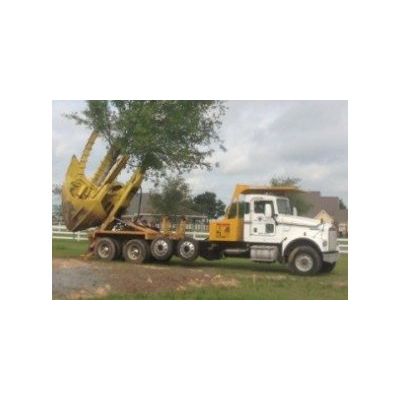

BIG JOHN Tree Transplanter Mfg., Inc. has been building the Model 80 since 1983. It’s the “original” large tree transplanter.  It is a fully contained one-operator system that is built to perform. We have pod trailers and free standing pods to help you work smarter and more efficiently. Move multiple trees per trip and save time, fuel and wear and tear with a BIG JOHN Pod Trailer.

The 400 gal (1,514 L) water tank uses 49” (1,245 mm) of space behind the cab. The Model 80 and 90 use 132” (3,353 mm) of frame space from the end of the truck going forward. Ground to top of frame height – 42”-44” (1,067-1,118 mm). For both the Model 80 and Model 90 we require a rear tandem GVW Rating of at least 40,000 lbs (18,143 kg) to 46,000 lbs (20,865 kg). The red line denotes Cab to Trunnion measurement or CT. Model 80 & 90 requires of minimum CT of 156” (3,962 mm). We recommend 165” (4,191 mm). We require a front axle suspension rating of at least 12,000 lbs (5,443 kg) to 20,000 lbs (9,072 kg) for the Model 80 and Model 90. Remember to keep cab height in mind when looking for trucks. Generally lower cabs are preferred to minimize the crown of the tree.

The 400 gal (1,514 L) water tank uses 49” (1,245 mm) of space behind the cab. The Model 100 uses 132” (3,353 mm) of space from the end of the truck forward. Ground to top of frame height – 42”-44” (1,067-1,118 mm). For the Model 100 we require a rear tandem GVW Rating of at least 46,000 lbs (20,865 kg). The red line denotes Cab to Trunnion measurement or CT. The Model 100 requires of minimum CT of 186” (4,725 mm) to 200” (5,080 mm). We require a front axle suspension rating of at least 20,000 lbs (9,072 kg) for the Model 100. Remember to keep cab height in mind when looking for trucks. Generally lower cabs are preferred to minimize the crown of the tree contacting the cab of the truck. Relocating air horns and lights from the cab is advisable.

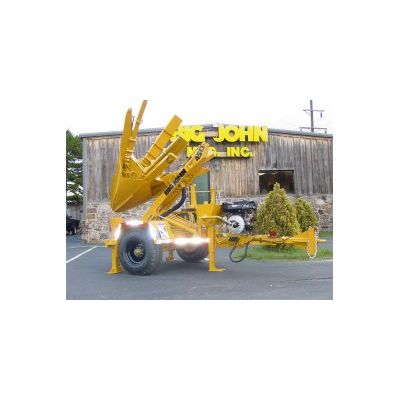

Trailer Length 220/172”. Trailer Width 93”. Tree Trunk Diameter 3” – 4”. Root Ball Width 42”. Root Ball Depth 38”. Root Ball Weight 1,500 lbs.

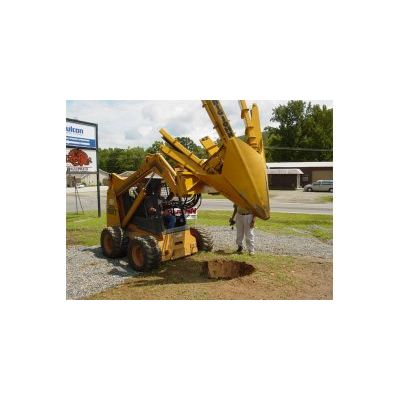

The Model 42DL from BIG JOHN is the most durable 4-Bladed production digger you can find. Featuring all of the rugged design characteristics that make BIG JOHN Tree Spades the most sought after machines on the market. The Model 42DL is designed for production digging, on site digging and landscape jobs. It’s flexible enough to be mounted on a myriad of host vehicles including skid-loaders, wheel loaders and track loaders. Whatever your task, if you have 4” and smaller trees that need to be dug in any conditions, this is the machine for you.

Tree Trunk Diameter – 5” – 6”. Root Ball Width(Adjustable)- 52”. Root Ball Depth(Adjustable)- 48”. Root Ball Weight (Approx.) – 3,600 lbs. Total Machine Weight – 4,700 lbs. Blade Tower Height (Down)- 80”. Gate Opening – 30”. Operating Width(Closed)- 89”. Number of Spades – 4.
Hydraulic Gate Lock – Yes. Adjustable Hydraulic Pads – Yes. Adjustable Mechanical Pads – Yes. Spade Material – AR 400. Drive System (Min. GPM) – 20

Tree Trunk Diameter – 6” –  7”. Root Ball Width(Adjustable)- 62”. Root Ball Depth(Adjustable) – 53”. Root Ball Weight (Approx.) – 4,300 lbs.
Total Machine Weight – 5,200 lbs. Blade Tower Height (Down)- 84.5”. Gate Opening – 40”. Operating Width(Closed)- 92”. Number of Spades – 4. Hydraulic Gate Lock – Yes. Adjustable Hydraulic Pads – Yes. Adjustable Mechanical Pads – Yes. Spade Material – AR 400. Drive System (Min. GPM)- 20
