Blue Diamond Attachments products

The Blue Diamond® Backhoe attachment is a quick and easy way to dig trenches using a skid steer. This powerful unit uses the biggest cylinder in the industry and the largest bucket capacity. The linkage geometry gives exceptional bucket rotation and breakout force. When the bucket is fully extended, the overall length is 8′ and can dig a 6′ depth. This powerful attachment will outperform other backhoes both in production and strength. The side pin #230 cast teeth are replaceable, and the bucket options range from a 9″ width to a 24″ width.

The Blue Diamond® Skid Steer Box Scraper Ripper is the perfect Skid Steer attachment for reconditioning gravel roads and driveways. The rippers will resurface the gravel that is buried in the ground over time. While the cutting edges will smooth out and level the gravel.

This powerful Blue Diamond® Extreme Duty Excavator Brush Cutter is a serious attachment for clearing land! The piston motor will tear through large brush with ease, boasting 40% more torque than geroler/gerotor type motors. The cut-away design allows better access to larger material and keeps grass standing while cutting, leaving a cleaner finish. The three AR400 blades make quick work of brush or grass. Available only in 60″ cutting width. Flow range is 22-30 GPM. It is designed to fit 28,000-38,000 lb machines.

The Blue Diamond® Severe Duty Excavator Cutter is designed for 38,000 lb to 60,000 lb machines. Weighing in at 2,264 lbs with a 60″ wide cutting width, this cutter is the most durable in its class. With a 1/2″ thick deck and sturdy reinforcements, this cutter is built to withstand the toughest applications. The 3/4″ thick double sided blades make quick work of trees up to 6″ in diameter. A 1″ thick blade carrier with a serrated edge keeps the material flowing efficiently under the deck. You can use the rugged teeth on the back to maneuver fallen material.

Below are the different types of Auger and Bits Extension. Rental Recommended.

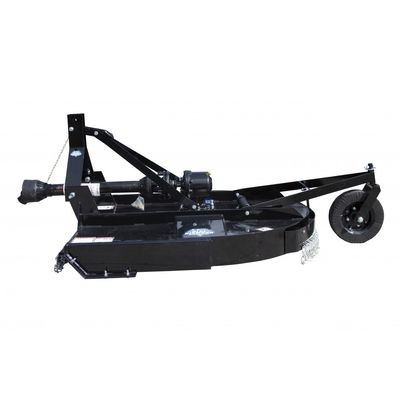

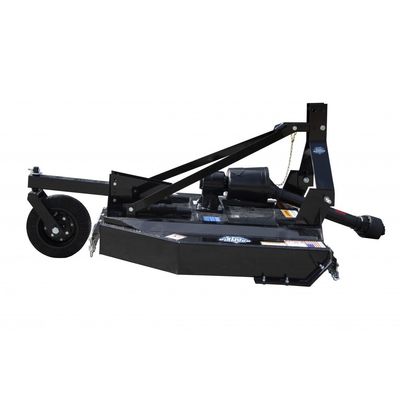

The Blue Diamond® 4′ Rotary Cutter is designed for standard duty applications such as weeds, grass, and light brush up to 1.5” diameter. This cutter is designed to work with 15 hp to 45 hp tractors and cuts up to 48″. This cutter uses a single spindle with two free-swinging blades, which reduces the shock of impact when a stationary object is contacted. A standard slip clutch protects the gearbox and driveline from damage. Standard equipment includes driveline, shields, clutch shields, and front and rear chains.

These Blue Diamond® Heavy Duty Round Back Cutters are designed for tough applications such as weeds, grass, and brush up to 2.5” or 3” diameter, depending on the model. These cutters are designed to work with 35 hp to 95 hp tractors and are available in 60”, 72”, and 84” widths. These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A slip clutch protects the gearbox and driveline from damage. They come standard with driveline shields, clutch shields, and front and rear chain discharge shields.

Blue Diamond® offers the Mini-Series Grapple both in a root grapple and a grapple bucket designed for mini skid steers. These exceptionally tough grapples originated through a need for a tough yet light grapple for interior demolition. This very demanding application gives this grapple an opportunity to make a name for itself as the top in its class. Industrial grade components, from the pivot pins to the cylinders, make this attachment ready for the most demanding conditions.
