The Model 2800 Medium Duty series hydraulic chute is designed for the farmer, feeder or producer.The 3 1/2`O.D. bushings on the headgates and tailgates and the 3/16` wall tubing on the frame makes this chute one of the best pieces of equipment for Cattlemen use. The Model 2800 utilizes two hydraulic cylinders on the headgate and two on the tailgate, thus eliminating linkage arms and a lot of wear points. The headgate cylinders are slave cylinders that cause the two headgate doors to operate at the same moment, in time with each other.

The Model 3000 Heavy Duty series hydraulic chute is designed for the larger feeder and feedlot. The 1/2`O.D. bushings on the headgates and tailgates and the 1/4` wall tubing on the frame makes thischuteone of the best pieces of equipment for feedlot use. The Model 3000 utilizes two hydraulic cylinders on the headgate and two on the tailgate, thus eliminating linkage arms and a lot of wear points. The headgate cylinders are synchronized via a gear-driven flow divider that causes the two headgate doors to operate at the same moment, in time with each other.

The Super-Duty 4000 “BRUTE” model is the ultimate in hydraulic chutes. From the 3″ x 3″ x 1/4″ frame tubing to the heaviest bushings, this chute surpasses the rest of the industry. Used by the largest commercial cattle feeders in the world, this chute holds up under heavy daily usage.The Model 4000 utilizes 3/16″ plating on the head and tailgates and lower access doors; 3/8″ plate on the floor of the chute; UHMW rub strips on the top of the head and tailgates; 3/4″ rubber padding on the headgates assist in any potential impact; 3 1/2″ VEKTON bushing kits throughout; double impeller twister linkage on the center squeeze mounted on a 2″ solid shaft assembly; neck accessible side panels make giving injections easier.

The Super-Duty 5000 “BRUTE” model is the ultimate in hydraulic chutes. From the 3″ x 3″ x 1/4″ frame tubing to the heaviest bushings, this chute surpasses the rest of the industry. Used by the largest commercial cattle feeders in the world, this chute features clear access on entry and exit, and holds up under heaviest daily usage.

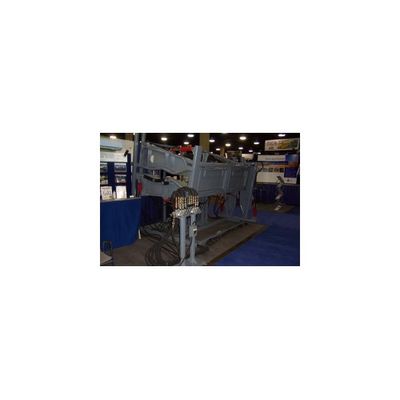

Hydraulic Tilt Chute Kits are available on all models. For cutting bulls and trimming feet. chute tilts completely horizontal. floor drops out for trimming feet. no need for belly belts. available on models 2800, 3000, 4000, & 5000.
