Bowsmith, Inc. products

The Bowsmith Fan-Jet micro-sprinkler combines the quality of the original Fan-Jet micro-sprinkler, plus the added feature that prevents clogging or pattern distortion due to insects and other external objects - saving you time and money.

Wide regulating range: Uniform flows, even at low or high pressures: Low minimum operating pressure: Saves on energy costs. Self-flushing throughout operation: High clog resistance, Less maintenance, higher crop yield. Unique two-piece design: Allows for quick, easy cleaning. Regulates microsprinklers: Pairs with multiple Fan-Jet nozzles, You choose the flow rate, pattern, and nozzle, Works at the end or middle of feeder tubes.

The Bowsmith NonStop emitter design, patented in 1974, is based on a simple unique principle found in no other emitter. This Pressure Cascade Principle permits the emitter to tolerate large amounts of suspended solids in irrigation water, without clogging and without the need for fine-mesh filter screens.

In-line emitter installed in the tube. Turbulent flow drip emitter.

Unique flow regulating concept: wide effective labyrinth, leading into the flow control chamber, where a sensitive floating diaphragm regulates and maintains a constant flow rate at variable inlet pressure. High clog resistance: Dripper`s large intake filter is continuously flushed by the water flow. Large cross section on labyrinth. Self-cleaning mechanism at the flow regulated water outlet.

Reliable Performance: Enhanced turbulent flow path for better emission uniformity. Reliable performance for increased yields.

Bowsmith Premium Plus+ tubing is manufactured from the highest grades of polyethylene resins. Contains a minimum of 2% carbon black. Every reel undergoes a series of tests to insure Bowsmith`s high quality manufacturing standards are met. Available in a wide range of diameters, wall thickness and coil lengths to accommodate required lengths of run, working pressures and terrain. Pre-punched and marked custom spacing are available for easy Fan-Jet® microsprinkler or Non-Stop® emitter installations. Manufactured in Exeter, California and Avon Park, Florida. Seven-year warranty back it all up. (See warranty for details)

Rabbit / Rodent resistant: when the Jet Stake is attached directly into the supply hose, feeder tubing is eliminated. Therefore virtually all damages caused by rabbits or rodents are eliminated also. Secure barb inlet connection to PE supply hose or distribution tubing. Overall length insures stability when inserted into loose dirt or potting soil. High grade resins in manufacture for mechanical stability and durability. Excellent distribution uniformity. UV inhibitors for long life.

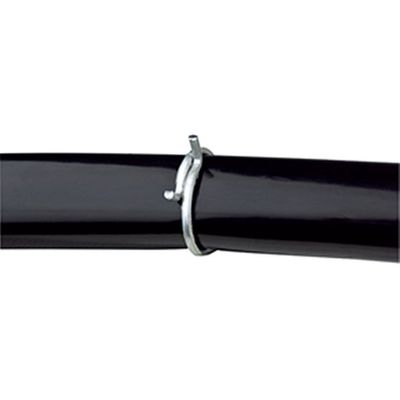

Clamping system specially designed for hanging irrigation pipe or tubing to wire for use in overhead drip or microsprinkler applications.
