Carlotti GC Macchine Agricole products

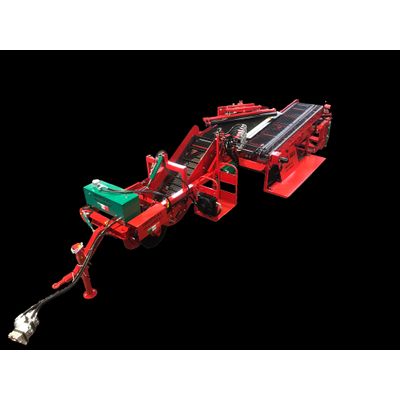

SPRING ALX-RH potato digger-harvester (for medium / small surfaces) allows you to take every care to perform a gentle collection. The work done by these 1 row machines , with hopper with unloading belt, is impeccable thanks to a continuous rise of the tubers on the hedgehog belt (allowing the tubers along the run not to skip) and the separation of the soil using non-aggressive systems. Independent belt adjustment allows you to achieve excellent results on a soft product and in any type of soil. These features make the SPRING series the most suitable machinization on the agricultural market for the relationship between quality / productivity / purchase price/ maintenance. In particular, the SPRING ALX-RH model allows automated and professional harvesting for small and / or middle-sized farmers.

Due to its large separation surfaces and the high capacity of the hopper, the SPRING 750/35 model is suitable for a harvest of 1 to 3 ha of potatoes per day.

The KMC 650 potato digger exalts the essential features required to achieve a simple and delicate digging process. The model operates with a working width of 650 mm,digging 1 row at a time. The standard version of the KMC 650 allows an in-line unloading of the product in the rear section; the NT version is equipped with an additional transversal belt, allowing the lateral unloading of the product. Both version are equipped with 2 side support wheels and 2 vertically adjustable side mower discs that separate the digging area, preventing clogging for easier machine movement.

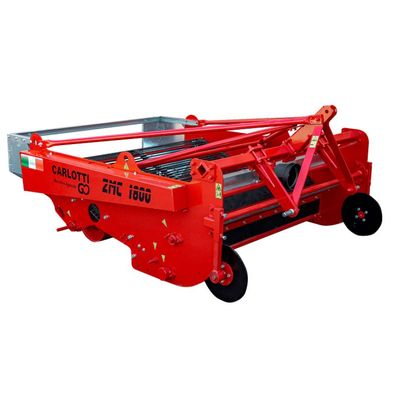

The 2 rows potato diggers of the KMC series differentiate from each other according to the working width needed (1794, 1964, 2164 mm respectively). They are equipped with: 1 adjustable plowshare with a number of blades that varies according to the size of the machine (8 for the KMC 1450, 9 for the KMC 1600, 10 for the KMC 1800); 2 vertically adjustable side mower discs that separate the digging area, preventing clogging for easier machine movement; 2 side support wheels. The excavated product is transported to the rear by a conveyor belt and then deposited on the ground. The models in the series can be equipped with 2 side shakers or an oscillating rear screen (both optional).

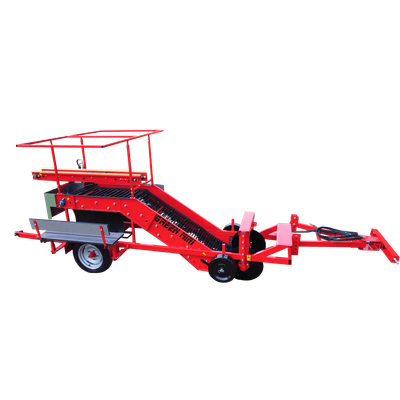

Entry-level single-row harvester built for small-sized farmers. The low angle of the harvesting belt prevents the product from rolling, making it suitable for harvesting soft products such as early potatoes or sweet potatoes. The machine is equipped with a pick-up belt with straight bars and rubber paddles, single blade with gaps for soil unloading, side support wheels, box holding forks and a PVC top discharge belt. It is also equipped with seats adjustable in height, inclination and distance to the sorting belt, in order to work comfortably while seated. The belts can be hydraulically adjusted in speed to adapt the pace to the soil characteristics. A pump unit must be simply connected to the tractor's PTO to operate the machine. The 25 L oil tank makes the system independent of the tractor. Finally, the machine comes with a frame and cover for protection from the sun. The machine can be connected to the tractor's two-point system, but can optionally be semi-mounted via the third point hitch or equipped with a hydraulic drawbar (2 quick connections required).

The ZMC onion digging series allows the digging of the most common onion seeding setups. Two steel slides convey the product into a central windrow to facilitate its subsequent harvesting. The rotating digging shaft, combined with the action of a feeding spatula with rubber paddles, gently transfers the product to the pick-up belt. A rear levelling roller recompacts the soil on which the harvested product is deposited. The digging shaft is available in three shapes: hexagonal (standard), square or round. The choice ofthe right model varies according to the width of the bed.
