Chongrui Aqua Technology Co., Ltd products

Warm water fish species original from the lake Victoria at Uganda & Kenya, the RAS system and special made tanks are all big sizes for high density tilapia feeding with up to 80-120kg/m3. Excellent temperature control system that offering best water temperature for the tilapia between 23-28 °c. Also the RAS system can fully guarantee the water quality is so pured that qualified a good living condition for the high density tilapia. Also, the system can speed up the growing speed to be 600g/fish in 6 month and 800g/fish in 8 months which are the normally market size. It`s the best solution for the modern tilapia farm which also could be used for the cat fish, salmon and other fishes, especially the species request warm temp but good water quality.

The role of the recirculating aquaculture system (RAS) is to maintain thewater quality of the aquaculture water body, so that indoor (factory) aqua-culture can be realized. The system is composed of several different equip-ments. According to the different objects to be treated, the treatment stepsare as follows: After the water leaves the fsh pond, it frst passes through amechanical flter to treat the large particles (greater than 80um) of solidwaste, such as fsh scale debris and residual bait; then enter the proteinskimmer to process some semi-soluble organic matter (greater than 30 andless than 80um), such as some colloids and fne particles; and then carry outnitrifcation and denitrifcation reactions through biological flters to solve theOrganic compounds such as ammonia nitrogen and nitrite (nitrite is a car-cinogen and poses a great threat to fsh). In addition to the above 3-stage fltration, according to the habits of thecultured species, the system can also add oxygenation equipment and tem-perature control equipment. In general, the signifcance of using the RASsystem is to provide a high-quality and controllable living environment forthe breeding industry, optimize production details and increase production.

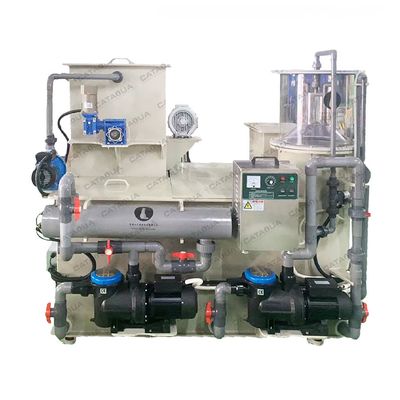

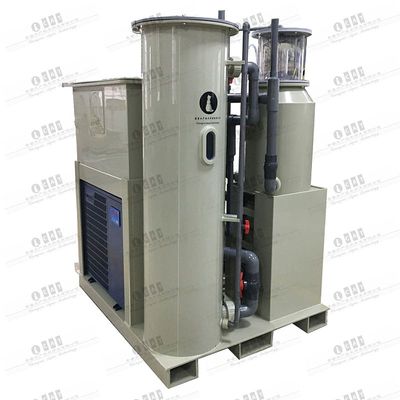

The system takes protein skimmer, UV sterilization and bio filter as the core, and can separate and remove various pollutants in the water, such as fish excrement, etc., and supplement the beneficial substances through the biological culture bacteria to keep the water quality stable. Perfect performance structure, small footprint and high effective, energy efficient, economical, safe, durable and easy to maintain. Designed specifically for small systems such as a processing capacity of 5 m3/h, 10 m3/h, and 15 m3/h. Most of these systems require flexible movement and convenient connection. Due to the small size of the system, it is expensive to install the engineer in the field. In order to meet the requirements of customers, Chongrui has developed an advanced mobile all-in-one RAS, which is free to install and can be connected and uninstalled quickly and flexibly.
