CM Aqua Technologies products

OxyGuard equipment is probably the most robust and reliable probes for the aqua culture market. Oxygen probes are important for control of the oxygen content in the water. Fish and other farmed aquatic animals like shrimps, all consume oxygen as part of their metabolism and so oxygen is the first limiting factor in fish farming. HEX E Control and Helios UV Control are also part of the engineering and manufacturing by OxyGuard technology.

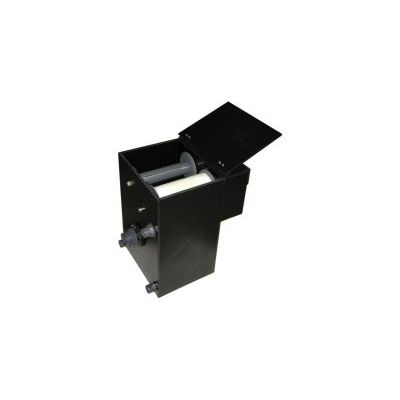

Size (LXBXH): 550 x 490 x 715 mm. Fleece size/length: 300 mm / 100 m. Inlet: 50 mm. Outlet: 63 mm. Emergency outlet: 50 mm. Dirt outlet: 40/50 mm. flow through: 5.000 - 8.000 l/h. Volume biochamber: ~ 30 liter BT 20.

Size (LXBXH): 850 x 490 x 715 mm. Fleece size/length: 600 mm / 100 m. Inlet: 50 mm. Outlet:90 mm. Emergency outlet:50 mm. Dirt outlet:40/50 mm. flow through:10.000 - 20.000 l/h. Volume biochamber:~ 60 liter BT 20.

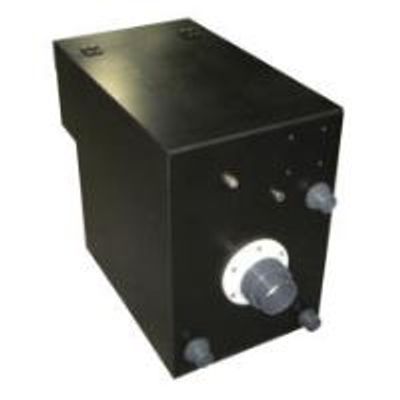

Size (LXBXH): 1260 x 660 x 765 mm. Fleece size/length:1000 mm / 100 m. Inlet: 2 x 63 mm. Outlet:110 mm. Emergency outlet:75 mm. Dirt outlet: 50/63 mm. flow through: 20.000 - 30.000 l/h. Volume biochamber:~ 100 liter BT 30.
