CMN Maskintec A/S products

With more than 10 years’ experience in the field of mechanical weed control, CMN maskintec A/S is the company with the most comprehensive expertise in this area. CMN maskintec A/S weeder harrows are known under the name CMN flex-weeder and are available in sizes from 1-20 metres. The main rule within mechanical weed control is to controling seed weed by covering it. Therefore, it is important to till the soil as thoroughly as possible, without damaging the cultivated crop. This is where the CMN flex-weeder differs from other weeder harrows in the market.

CMN straw cultivator – The efficient solution against seed weed and to activate the germination of waste seeds, as well as an effective distribution and moulding down of cut straw.  Another positive side effect is the reduction of snails. The CMN straw cultivator is available with fixed tines or variable tine-angle, both models are 3-point-hitched implements but can also be used semi-mounted. The spring-tine harrow has an individual tine distance of 50 cm and an effective tine distance of 10 cm. The specially shaped CMN spring-tine has a dimension of ø 16 mm. The spring is double-coiled and the spring-tine has a free height of 65 cm. Those facts in combination make it possible for the CMN spring-tine harrow to work in very large amounts of organic material without clogging.

The CMN couch grass killer, your optimum solution for the uprooting of root weeds like couch grass, dock, thistle, and other root weeds. Tufts of grass can be effectively crushed when reallocating old meadows and seed fields. The CMN couch grass killer cuts through the field by means of the tines of the strong stubble harrow, which is equipped with 48 cm wide wing shares. The earth has now been loosened up for a slow-moving pickup that rotates against the direction of motion. By churning up the soil, the pickup gathers organic material, such as roots of couch grass, thistle, mugwort etc, and exposes it. The combination of the low speed of the pickup and the high volume weight of the soil ensures that soil and stones pass under the pickup, whereas the organic material will be dragged over the pickup and left on the soil for drying or collection.

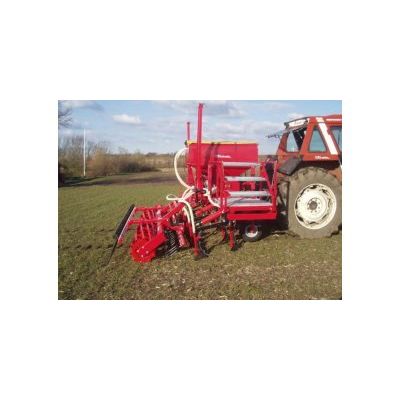

CMN stubble-seeder is a combination of a stubble cultivator and a seed sower for sowing directly onto stubble or ploughed earth. At the same time the cultivator may be used for traditional stubble tillage. The CMN stubble-seeder first cuts through the field with the stubble cultivator’s strong blades equipped with wing shares. The soil is now loosened ready for the hydraulic long finger harrow, which in turn flattens the remaining straw and stubble and earths it over. The working depth of the cultivator is controlled by a wheel and the hydraulic tubular packer roller.

With the CMN cultivator you can handle both the easy and diffucult tasks within cleaning of row crops. The cultivator is available both for front-mounting and rear-mounting og covers any row distance between 20 – 75 cm. By mounting the CMN cultivator onto the cleaner you ensure a more effective drying of the uprooted weeds.

With the CMN flexible walls you can enlarge or reduce your silo facilities completely without the use of tools and, furthermore, independant of pole holes. It is a well-known fact that the various crops do not take up the same amount of space each year either due to yield fluctuations or that the same crops cover a different area. We can solve this problem by means of the flexible elements and thus, you can utilize your dehydrator most optimally. The walls are built of ‘Spåndex’ boards and fitted with a sturdy metal frame. Joining the elements together is done by pushing the element into the u-fillet of the following element. The wall element is kept into place by means of the grain pressure upon the base.

The CMN trio-cleaner solves problems concerning cleaning of uncultivated areas like footpaths trotting tracks, sports grounds, and gravel-layered areas without use of pesticides. The CMN trio-cleaner in two parts with the hoe section front-mounted and the rake rear-mounted.

Remove moss and dandelions and other types of weed on the green areas with the CMN lawn/golf spring-tine harrow. The CMN lawn/golf spring-tine harrow is equipped with a specially hardened 5 mm double-coiled tine that cuts through to the bottom of the lawn and thus, errects the weed to be cut by the lawn mower. The result is that the grass gets the necessary space to become firmly established and capable of battling the weed. At the same time this improves the oxygen uptake to the roots just like a vertical cut.

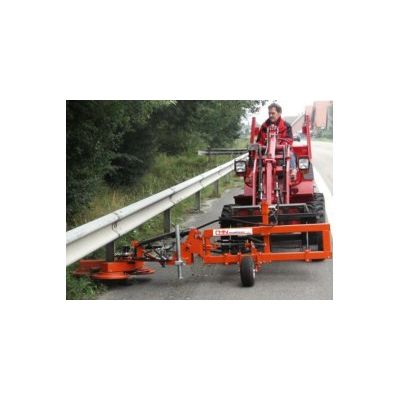

Finally long hours of hard work with the brush cutter around traffic signs, pales and solid fences are over, thanks to the CMN V-Trimmer. The CMN V-Trimmer, also called Zaunkönig – the solution for a gentle cutting around traffic signs, pales and guard rails, without using physical labor.
