Controlweigh products

Impedance: 700 ohms nominal. Output Ranges: 10 turn vernier 0 - 3mV/V. Excitation: 20v ac/dc max. Termination: Binding posts - accepts standard banana plug or up to No. 14 wire. Weight: .4Lbs. Dimensions: 4.5"H x 3.5"W x 2.2"D. Enclosure: ABS Thermoplastic Case.

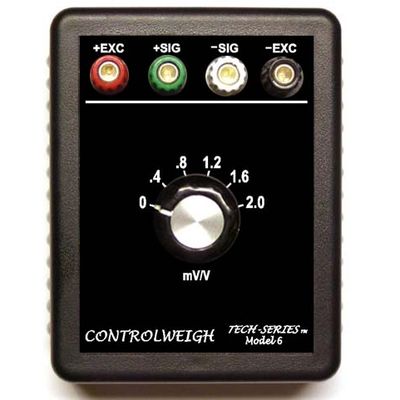

Impedance: 350 ohms nominal, Output Ranges: Fixed rotary switch 0 to 2 mv/v in 5 steps of .4 mv/v.

Impedance: 350 ohms nominal. Output Ranges: Fixed rotary switch. 0 to 3 mv/v in 6 steps of .5 mv/v. Output Accuracy: Typically Max. + 0.008% + 0.020% of full scale. + 0.00024 mv/v + 0.00060 mv/v or +1 microvolt, whichever is greater. Zero Offset: Typically Max + 0.00009 mv/v + 0.0005 mv/v or +1 microvolt, whichever is greater.

Impedance: 350 ohms nominal. Output Ranges: Fixed rotary switch: 0 to 3 mv/v in 6 steps of .5 mv/v 10 turn vernier with locking graduated dial. OFF: Rotary selection + 0.0 mv/v. FINE: Rotary selection - 0.02 mv/v to +0.5 mv/v. MEDIUM: Rotary selection - 0.06 mv/v to +1.5 mv/v. COARSE: Rotary selection - 0.10 mv/v to +30 mv/v. Note: Vernier ranges may vary from above.

Impedance: 350 ohms nominal. Output Ranges: Fixed rotary switch: 0 to 3 mv/v in 15 steps of .2 mv/v. Output Accuracy: Typically Max: + 0.008% + 0.020% of full scale + 0.00024 mv/v + 0.00060 mv/v or +1 microvolt, whichever is greater Zero Offset: Typically Max + 0.00009 mv/v + 0.0005 mv/v or +1 microvolt, whichever is greater.

Impedance: 350 ohms nominal. Output Ranges: Fixed rotary switch: 0 to 3 mv/v in 15 steps of .2 mv/v. 10 turn vernier with locking graduated dial. OFF: Rotary selection + 0.0 mv/v. FINE: Rotary selection - 0.01 mv/v to +0.2 mv/v. MEDIUM: Rotary selection - 0.04 mv/v to +1.0 mv/v. COARSE: Rotary selection - 0.08 mv/v to +30 mv/v. Note: Vernier ranges may vary from above.
