Cutting Systems, Inc. (CSI) products

The DL-4400 has what CSI calls a DOG LEG (DL) style saw box which gives the loader operator a better view plus more grapple room when pulling the tree stems up for the next cut. It is built from high strength tube and alloy steel by skilled workers to create a machine that is strong and durable. New innovations such as four larger 3/4 inch bar mounting bolts and a hydraulic cushion bar stop help maximize bar speeds. A one turn cam type chain adjuster makes adjusting chain tension fast and simple. These features, along with our auto adjusting feed system which maintains the fastest cutting speed at all times, makes the DL- 4400 a CLASSIC and the leader in bar and chain slashers.

The CSI Model DL-4400-R Revolver features a saw box that rotates to accomodate a left or right handed load operation. This allows the operator to orient the saw box in either position quicker and easier. The DL-4400-R also features a redesigned chassis construction to help keep the stems flat for smooth, clean cuts on uneven ground. As with our other saws, the Revolver is built from hi-alloy tubing and hi-alloy steel plate by skilled workers to ensure a product that will give many years of quality service.

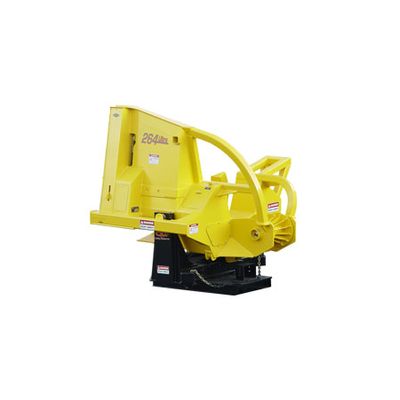

This 4-knife pull-thru delimber comes equipped with an integrated topping saw. It is suited for use in hardwood or pine. The 72` wide throat opening, a special roller, and our unique knife design makes delimbing trees smooth and easy. It comes mounted on a cradle constructed of high alloy steel. We also use top quality rotation bearings, pivot bushings, and rollers. Its ease of operation yields maximum production.

Our PTD-264-NTS is designed with the same rugged features and quality as our PTD-264, without the integrated topping saw for operators who do not require that option.

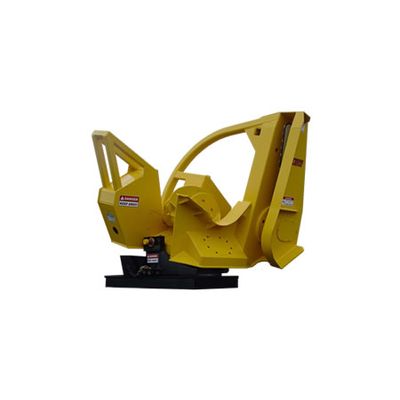

This 3-knife pull-thru delimber features a 20` throat opening. It is designed for less productive contractors harvesting pine and hardwood using smaller knuckle boom loaders. Available with or without a topping saw.

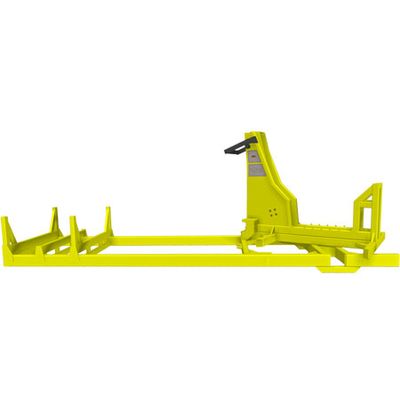

The DT - 2500 Delimber Trailer was designed with mobility and flexibility in mind. Made with a single heavy-weight I-beam rail, the DT-2500 offers easy towability to and from the jobsite, and allows the operator to position it exactly where required for optimal production. The DT-2500 also features a heavy-duty 22,000 lb axle and 1100-22.5-12ply tires. The DT-2500 is equipped with highway lighting and a fixed front spade, and is available with your choice of PTD-143, PTD-243, PTD-264, or PTD-264-NTS delimbers.

The DT - 2600 Delimber Trailer has same rugged features and mobility as the DT-2500 Delimber Trailer, but with heavy-weight dual channel construction. This allows you to carry one of our slasher saws on the trailer chassis during transport. The DT-2600 is also equipped with highway lighting and a fixed front spade, and is available with your choice of PTD-143, PTD-243, PTD-264, or PTD-264-NTS delimbers.

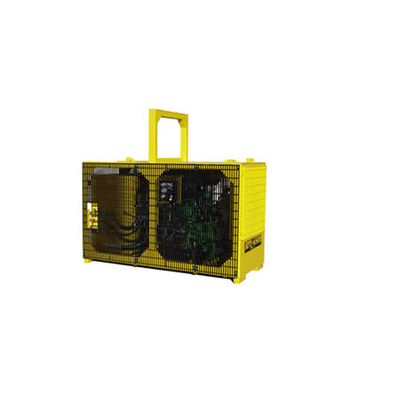

The IDT-2800 is a self-contained power unit including a diesel engine, hydraulic power pack, and radio remote which allows you to run our delimbers without attachment to loader hydraulics.

The model DFH-3526 is a grapple felling saw head designed for use on excavator-type carriers. The saw head incorporates a dangle hook-up system, and features bar and chain cutting technology. Expertly designed, and built from the finest alloy steel, our saw head is rugged and robust enough to withstand the daily punishment of a logging operation. The DFH-3526 is equipped with a 3/4 pitch chain, running on a 37” bar. You can do a 26” cut in a single pass or a 35” cut with multiple passes. The arms are designed to allow the operator to pick up the tree and remove the top, forks, big limbs, etc. You can also shovel log the tree stems to where the skidder has easy access, as well as load the stems if necessary.

The model 6500 Power Unit provides an alternative hydraulic power source for slasher saws used in applications where the need for loader mobility prevents the slasher from being connected in a conventional manner. In most cases, the remote transmitter is wired to switches in the joystick handle allowing seamless operation of the loader and slasher. The remote sending unit can be easily moved from one loader to another. The radio has a range of several hundred feet.
