D&M Manufacturing Co products

Berm blower is designed for blowing debris off orchard berms the easy adjustable air outlet nozzles that can be adjusted to direct air flow to blow debris into the center of the adjacent rows reducing blowing back on to cleaned berms. The rear mounted trailer hitch enables the ability to pull a 300 gal. trailer type herbicide sprayer to do two jobs with one pass. By using direct drive 2 speed gearbox eliminates the use of drive belts, shafts and shaft bearings reducing maintenance and down time.

Dependable PTO drive, 540 RPM operating speed. Heavy duty 2 speed gearbox with neutral position. \High speed “Aluminum” precision balanced fan. Heavy-duty rectangular tube construction ensures durability. Independent adjustable opposed outlets direct to the target area. 2-speed gearbox 2,000 RPM (low) 2,400 RPM (high). Air velocity 150-180 MPH.

"THE   LEAF  HOG"   MODEL  #   LH-36  VINEYARD  LEAFING   MACHINE Model L-H 3007 Features:

The D&M Tow and Tote Master Vineyard Dusters employ the same general components. A uniquely designed air induction system assists with a positive feed horizontal auger. No belts or pulleys, no sulfur build up on fan, and no down time.

The D&M Max 3-point and Trailer Vineyard Dusters employ the same components. A uniquely designed air induction system assists with a positive feed horizontal auger.

The D&M Tow and Tote Master Vineyard Dusters employ the same general components. A uniquely designed air induction system assists with a positive feed horizontal auger. No belts or pulleys, no sulfur build up on fan, and no down time.

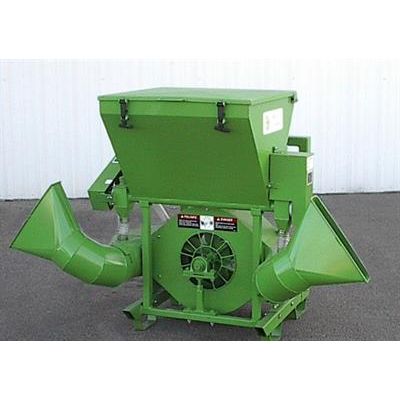

The D&M TH-600 P.T.O. Twin hopper vineyard duster is designed for use in overhead trellis systems. The twin fan blowers and two 300 lb. independent hoppers with four independent outlet nozzles allow the front mounted blower nozzles to target the immediate row while the two rear blower nozzles target the adjacent rows. The rear outlet nozzles are mounted on breakaway arms and both front and rear outlets. Nozzles are adjustable to direct dust to the target area.

The D&M TS-1000 PTO driven air sprayer is designed for use in orchards to provide even uniform coverage, maximum penetration with the ultimate in strength, durability and combine simplicity with performance.

The D&M CS-36 PTO driven air sprayer is designed to provide exceptional coverage in D.O.V. overhead and gable trellis vineyards. The height volume 36″ dia. fan along with four independent air outlets allow for preferred air flow directional adjustment for efficient and complete coverage.

Tank: 300 gallon round 304 stainless steel large basket strainer
