Davimac products

Your harvest should be as smooth and efficient as possible. Like all bins in our range, our single-axle chaser bin prioritizes simplicity, robustness, and ultra-reliability in every component for seamless operation during busy seasons.

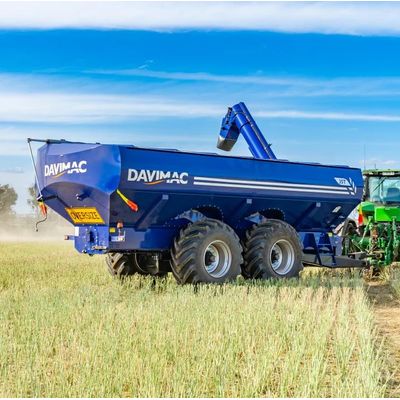

Our dual-axle chaser bins are the ideal choice for handling bumper crops efficiently. Our proven tandem-axle undercarriage is engineered with a load rating well above the bin’s maximum capacity, providing outstanding durability and fewer maintenance issues in the field during a busy harvest. 45T models are available with rear-steering axle for improved performance.

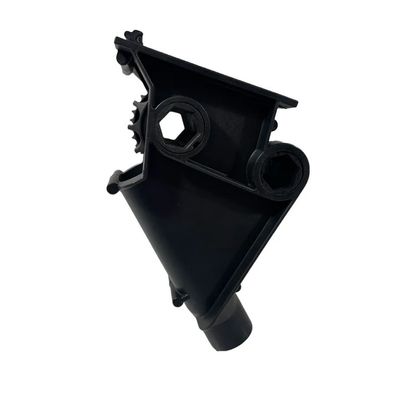

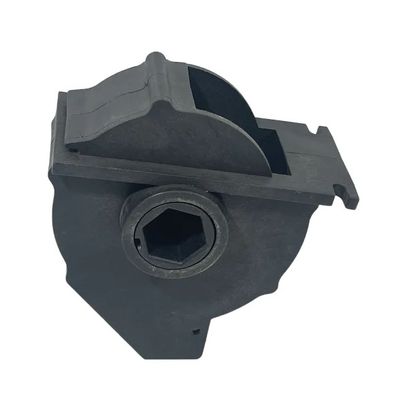

Seed distribution assembly used on the older Davimac Seed Drills. It has been designed to suit a 20.6mm hex shaft but will fit both 20.8mm and 20mm hex shafts. These feed rollers come assembled with stainless steel screws to improve the life of the assembly. The seed choke to suit this assembly is 800-0023 . Items are assembled upon ordering and will be dispatched usually within 1-2 business days upon ordering.

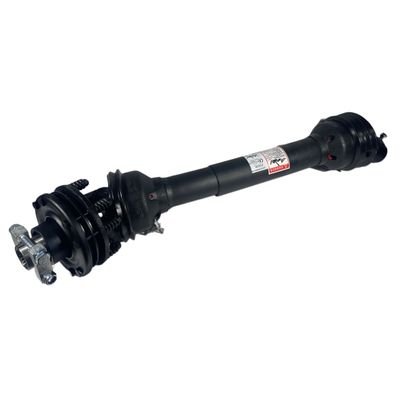

These Clutch and PTO assemblies are used on 2022 model chaser bins and later. It is backwards compatible with earlier model chaser bins and is cost-effective.

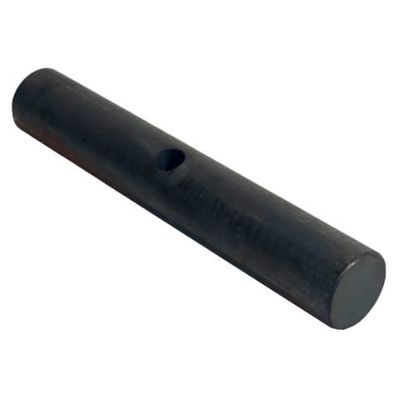

This drive pin is made out of a 25mm Shaft, is 152mm long, Grade 4140 and has been heat-treated. This pin is used on the vertical auger and is used to engage the upper auger on Davimac chaser bins. It is secured into the auger through the use of the Locating Pin.

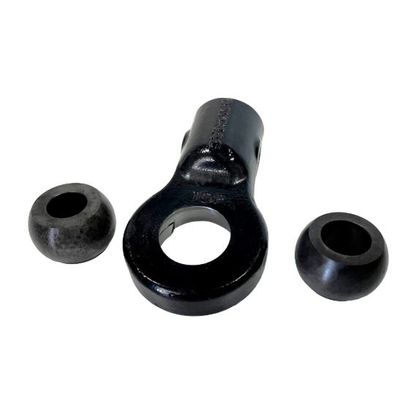

Tow eye hitch kit assembly for chaser bin with interchangeable ball inserts. Assembly includes. Hitch Tow Eye 2" Cast. 2" machined ball insert. 1`3/4" machined ball insert. Bolt, nut and grease nipple.

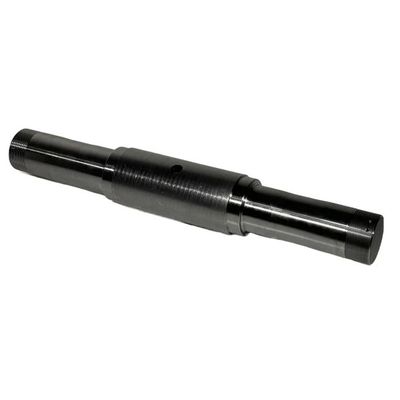

115mm Stub Axle to suit Vimcor Tracks V-1 may not be in stock or is made to order. Contact us to confirm stock availability. This double-sided axle is to suit V-1 Track systems only. This item is made to order. Alternate Part Number: 4029020-01.

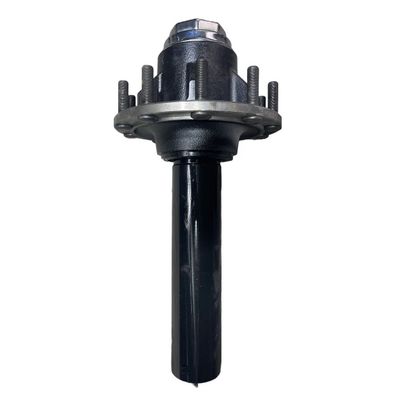

The 10-Stud K-Hitch Hub has a PCD of 335mm and suits 18-25 Ton Davimac Chaser Bins. It comes assembled on an axle stub made out of a 114.3mm Bright shaft (4.1/2") and is utilised in both standard 2.6m and extended 3.0m tramlines. Alternate Part No.: 4029025, 139-2074.
