Professional fertilizer spreader, SW5 (PATENTED) is a compact machine. It is suitable for the distribution of chemical, granulated, powdery and pellets fertilizer on vineyard. The hopper width (1,10 mt), ideal for vineyards and orchards, avoids damages to the plants. Capacity from 600 to 1000 lt. The spreading disc, vanes, agitators, housing and opening plates are made of stainless steel in order to ensure a long- term life. Due to the corrosive products used during operations, every component of the machine has been treated and painted before being assembly. ISOBUS version available with load cells. Entering prescription maps on the monitor it is possible to diversify the dose, based on the real needs of the plants (VARIABLE RATE).

Professional fertilizer spreader S18 is suitable for the distribution of chemical, granulated, powdery and pellets fertilizer. It is able to reach a maximum working width of 18 mt. (with urea is spreadable up to 15 mt). Available with a capacity from 800 to 1600 lt. The spreading discs, vanes, agitators, housing and opening plates are made of stainless steel in order to ensure a long-term life. Due to the corrosive products used during operations, every component of the machine has been treated and painted before being assembly. ISOBUS version available with load cells. Entering prescription maps on the monitor it is possible to diversify the dose, based on the real needs of the plants (VARIABLE RATE). It has a standard 8 section working width control through dose variation. In wedge-shaped areas the spreading is more uniform, and the actual fertilizer remains constant. It is possible to adjust the working width AUTOMATICALLY by GPS from outside to inside in 4 sections per side.

 Professional fertilizer spreader S24 is suitable for the distribution of chemical, granulated, powdery and pellets fertilizer. It is able to reach a maximum working width of 24 mt. (with urea is spreadable up to 18 mt.). Available with a capacity from 1200 to 2300 lt. The spreading discs, vanes, agitators, housing and opening plates are made of stainless steel in order to ensure a long-term life. Due to the corrosive products used during operations, every component of the machine has been treated and painted before being assembly. ISOBUS version available with load cells. Entering prescription maps on the monitor it is possible to diversify the dos.

Professional fertilizer spreader M36 is suitable for the distribution of chemical, granulated, powdery and pellets fertilizer. It is able to reach a maximum working width of 36 mt. Available with a capacity from 1500 to 4200 lt. The spreading discs, vanes, agitators, housing and opening plates are made of stainless steel in order to ensure a long-term life. Due to the corrosive products used during operations, every component of the machine has been treated and painted before being assembly. ISOBUS version available with load cells. Entering prescription maps on the monitor it is possible to diversify the dose, based on the real needs of the plants (VARIABLE RATE).

The new fertilizer spreader M42 ISO with a hopper capacity from 1.500 to 4.200 lt. has been specially designed for professional farmers. The working width (45 mt) is divided into 16 sections (8 right – 8 left). The dose and the drop point of the fertilizer are automatically adjusted by disconnecting the sections from the outside to the inside. Section Control system 2.0 connected to the ISOBUS terminal allows to adjust the dose and the working width by GPS, allowing a perfect overlap, saving costs and maximizing the production, especially in the presence of fields with irregular shapes. The distribution is extremely tested in flow regulation, independently of the changes of quantity, speed or working width, through the use of a subframe. ISOBUS version available with load cells. Entering prescription maps on the monitor it is possible to diversify the dose, based on the real needs of the plants (VARIABLE RATE).

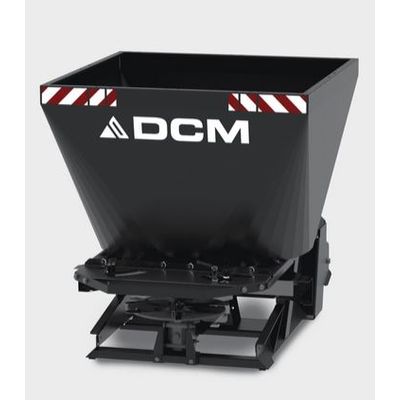

The particular form of the hopper and the slow-turning agitator (77 g/ min) allow an easy flow of compost with a specific humidity up to 38%. Model SCU/N (PATENTED) mono disc has been mainly designed for the distribution of humid fertilizers (as compost, humus, concentrated manure), but it is able to distribute also gypsum and lime besides of any other type of fertilizer.

The particular form of the hopper and the slow-turning agitator (77 g/min) allow an easy flow of compost with a specific humidity up to 38%. Model SCU/DD (PATENTED) double disc has been mainly designed for the distribution of humid fertilizers (as compost, humus, concentrated manure), but it is able to distribute also gypsum and lime besides of any other type of fertilizer, guaranteeing uniformity of distribution both in full field and localized (possibility to distribute only to the RIGHT, only to the LEFT or on both sides).

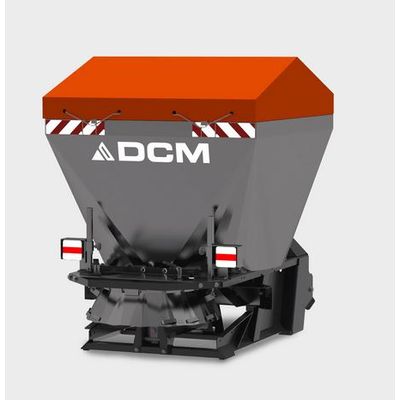

PATENTED professional salt spreader; strong and compact machine. The particular form of the hopper and the slow turning agitator allow an easy flow of salt with a specific humidity up to 38%. It is usable as salt- or sand spreader. It distributes also humid fertilizer (such as compost, humus, concentrated manure, organic waste from biogas plant, etc.) and granulated fertilizer. The spreading disc, vanes, housing, agitator, hopper and opening plates are made of stainless steel, in order to ensure a long-service life. Due to the corrosive products used, every component of the DCM salt spreader have been treated and painted before being assembly.

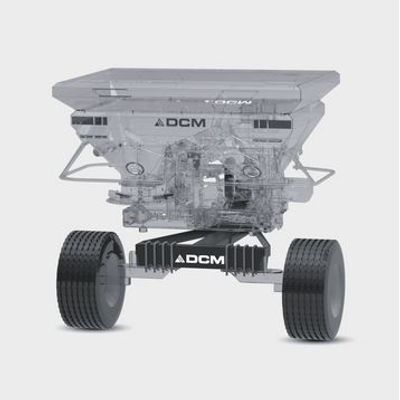

CSE-CPS are trailers that can be used to mount any fertilizer spreader with a capacity from 4.000 to 5.000 liters. It has got an adjustable wheel spacing from 1,80 to 2,20mt and it is possible to mount wheels for rice field. Trolleys are equipped with ladder and 3-point linkage 2°category, adjustable both in height and width. The support foot is adjustable in two heights (if the wheels change).
