Delco Trailers, MFG. products
Livestock Trailers
Bar Top Livestock Trailers
Full Length Brush Fenders (3”x5” Angle Frame on 28’+). 8” I-Beam Neck (10” I-Beam Neck on 28’+). 1”x3” Tubing Sides. 1-5/8” Schedule 40 Pipe Bows. 3-1/2” Pipe Rear Bumper.
Metal Top Livestock Trailers
Full Metal Top. Full Length Brush Fenders (3”x5” Angle Frame on 28’+). 8” I-Beam Neck (10” I-Beam Neck on 28’+). 1”x3” Tubing Sides. 1-5/8” Schedule 40 Pipe Bows. 3-1/2” Pipe Rear Bumper
Premium - Livestock Trailers
Metal Top w/8’ Open In Rear. Full Length Brush Fenders. 8” I-Beam Neck (10” I-Beam Neck on 28’+). 33” Side Panels (from floor). Brush Fender Pipe Braces. 3-1/2” Pipe Rear Bumper w/Receiver Hitch. 1” Full Length Cleaning Gap
Combo Livestock Trailers
Full Metal Top. 2”x3” Tubing Frame. 1”x2” Tubing Uprights. 8” I-Beam Neck (10” I-Beam Neck on 28’+). 46” Side Panels. 2”x4” Tubing Rear Bumper
Bumper Pull Livestock Trailers
Full Metal Top. 2”x3” Tubing Frame. 1”x2” Tubing Uprights. 2”x4” Tubing Tongue. 46” Side Panels. 2”x4” Tubing Rear Bumper
Groundload Livestock Trailers
Full Length Brush Fenders. 12” I-Beam Neck. 3”x5” Angle Frame. 1”x3” Tubing Sides. 1-5/8” Schedule 40 Pipe Bows. Double Bow On Rear Gate. 3-1/2” Pipe Rear Bumper.
Horse Trailer
Delco - Horse Trailer
Structural: Full Metal Top, 2”x3” Tubing Frame, 1”x2” Tubing Uprights, 2”x4” Tubing Tongue, 58” Side Panels, 2”x4” Tubing Rear Bumper. Axles : 3,500 lb Or 5,200 lb Torsion Axles and Electric Brakes.
Delco Gooseneck Livestock Trailers

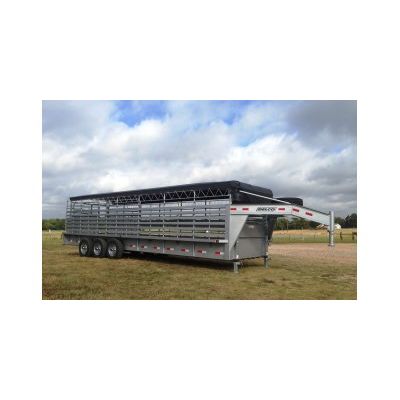

Delco - Gooseneck Livestock Trailers
GVWR: 14,000 - 24,000 lbs. Frame: 10 guage fender & 3x5" x 3/16" angle iron frame. Axle: 2-7 * 2-8k lbs. Torsion axles on 26' and under, 3-7 & 3-8k lbs torsion axles on 28' and longer. Length: 14-40'. Interior height: 6'6". Width: 6', 6'8", 7", 7'6". Couplers: gooseneck 25k 2 5/16" round. Tires: 235/75r16 radial tires.

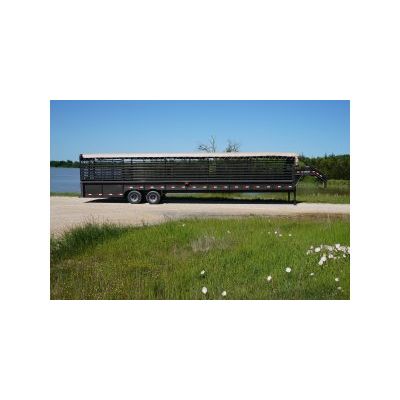

Delco - Gooseneck Livestock Trailers
GVWR: 14,000 - 24,000 lbs. Frame: 10 guage fender & 3x5" x 3/16" angle iron frame. Axle: 2-7 * 2-8k lbs. Torsion axles on 26' and under, 3-7 & 3-8k lbs torsion axles on 28' and longer. Length: 14-40'. Interior height: 6'6". Width: 6', 6'8", 7", 7'6". Couplers: gooseneck 25k 2 5/16" round. Tires: 235/75r16 radial tires.

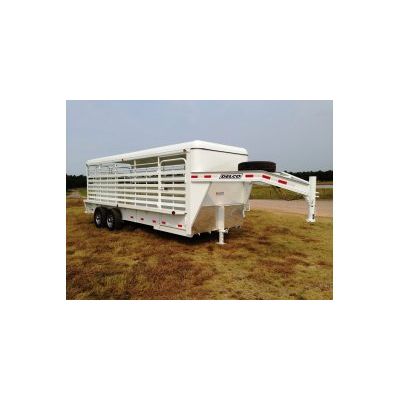

Delco - Gooseneck Livestock Trailers
GVWR: 14,000 - 24,000 lbs. Frame: 10 guage fender & 3x5" x 3/16" angle iron frame. Axle: 2-7 * 2-8k lbs. Torsion axles on 26' and under, 3-7 & 3-8k lbs torsion axles on 28' and longer. Length: 14-40'. Interior height: 6'6". Width: 6', 6'8", 7", 7'6". Couplers: gooseneck 25k 2 5/16" round. Tires: 235/75r16 radial tires.
