Deppe Commercial Vehicles products

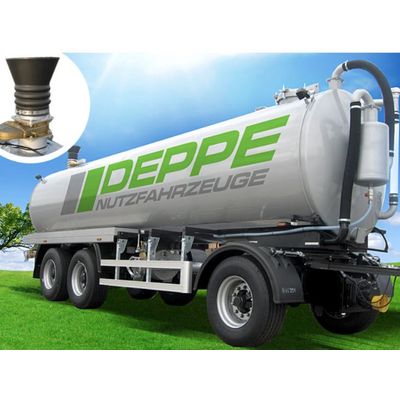

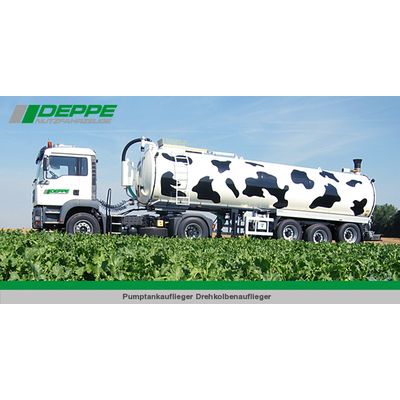

Airtight semi-trailer tank of 29.000 Liter volume. Welded Steel Tank, 5 mm thick walls, self-supporting, 2000 mm diameter, high pressure performance. The individual container elements are customized, fitted together and then welded inside and out. Doing this makes the tank extremely stable. Additionally, there are 3 baffles and 7 stiffening rings from U-iron welded into the container. Boerger or Vogelsang Rotary Lobe Pump, max. Capacity 6.000l/min, hydraulically driven, required oil pipe to drive approx. 125l/min at max 200bar. Automatic pump shut-off with soft-shutdown or manual on and off switching of the rotary pump. Stone trap with discharge outlet. Suction port with wedge gate valve and 6"quick couplers, mounted via a swivel joint at the stone trap allowing the suction port to be pivoted right and left. Rare manhole cover with wedge gate valve and 6” quick couplers. Docking device and pneumatically activated feeder gate, on top of the tank; all 8”.

Tank: Airtight semi-trailer tank of 29.000 Liter volume. Welded Steel Tank, 5 mm thick walls, self-supporting, 2000 mm diameter, high pressure performance. The individual container elements are customized, fitted together and then welded inside and out. Doing this makes the tank extremely stable. Additionally, there are 3 baffles and 7 stiffening rings from U-iron welded into the container. Boerger or Vogelsang Rotary Lobe Pump, max. Capacity 6.000l/min, hydraulically driven, required oil pipe to drive approx. 125l/min at max 200bar. Automatic pump shut-off with soft-shutdown or manual on and off switching of the rotary pump. Stone trap with discharge outlet. Suction port with wedge gate valve and 6"quick couplers, mounted via a swivel joint at the stone trap allowing the suction port to be pivoted right and left. Rare manhole cover with wedge gate valve and 6“ quick couplers. Docking device and pneumatically activated feeder gate, on top of the tank; all 8“.
