Doonan Specialized Trailer, LLC products

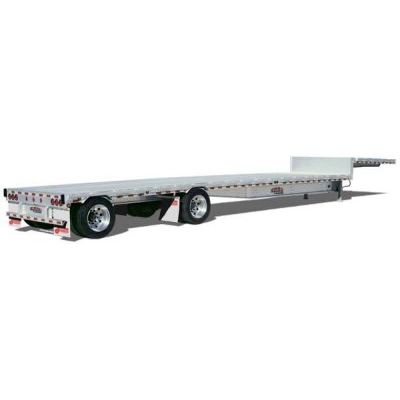

The Chaparral dropdeck is an aluminum main beam trailer that features an all-steel neck. The new neck design was taken from the Doonan Black Gold, and is actually stronger and lighter than the previous Chaparral combination steel/aluminum neck.

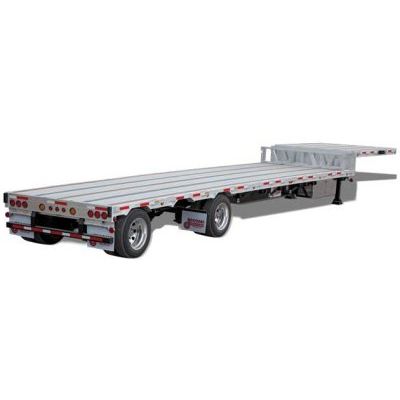

The Doonan Platinum dropdeck combines the light-weight bolt-together deck of the Chaparral with the light-weight welded steel main beams of the Doonan Black Gold to create a combo dropdeck that weighs less than 9,100 pounds.

The Doonan Diamond dropdeck is a combo trailer with all-steel main beams, steel front & rear plates, steel cross-members, and 6` aluminum siderail.

The Doonan Black Gold is the legendary basis for all Doonan products. Its light weight all-steel design combined with over 300 pickable options makes it one of the most versatile trailers on the market.

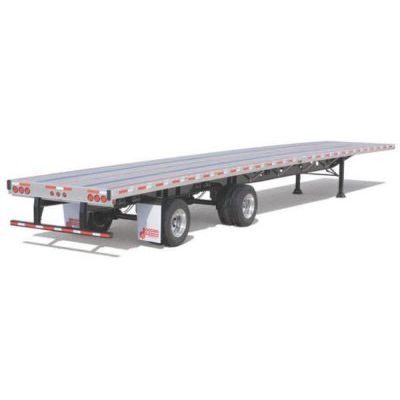

The Chaparral flatbed uses a bolt together construction to allow for easy maintenance of floor boards, side rails, cross-members, front plates, and rear plates.

The Doonan Platinum flatbed combines the light weight bolt together deck of the Chaparral with the light weight welded steel main beams of the Doonan Black Gold to create a combo trailer that weighs less than 8,835 pounds.

The Doonan Diamond flatbed is a combo trailer with an all-steel main beam, steel front & rear plates, steel cross-members, and 6` aluminum side rail.

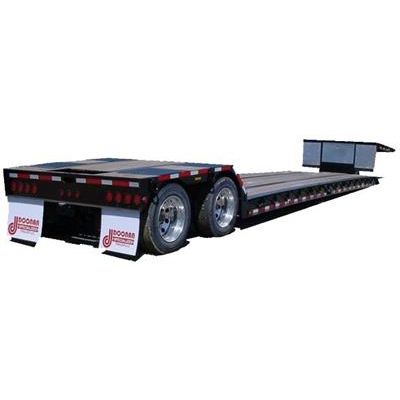

The Platinum or Diamond Fixed Neck Double Drop is an steel main beam based lowbed trailer with a non-removable neck. The Diamond has aluminum side rails and steel cross-members, where the Platinum has both aluminum side rails and aluminum cross members.

Chaparral II Fixed Neck Double Drop is an aluminum main beam based lowbed trailer. Due to the shallow depth aluminum construction it has a very limited beam capacity and GVWR.

Model Number: 482QBBICOFCA. Beam Rating: 60,000 lbs in 16 feet. Overall Length: 48’ 0”. Top Deck Length: 10’ 0”. Main Deck Length: 29’ 0”. Rear Deck Length: 9’ 0”. Swing Clearance: 82 Inches. Lower Deck Nose: Tapered nose on lower deck with gripper lugs. Width: 102 inches.
