DSI Inc products

Manure Injection Systems

Dietrich - Manure Injection Systems

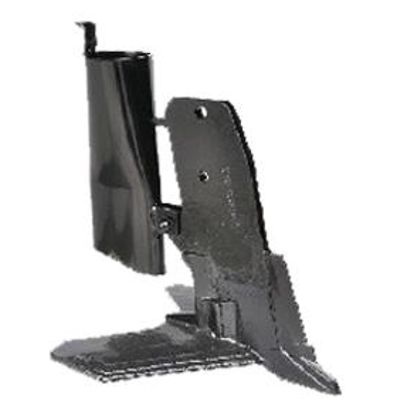

Series 70 Chisel Point Sweeps are designed to penetrate frozen soil. 1/2" thick Chisel Point Sweep Shank combined with 62 degree swept back wings results in minimum soil disturbance and allows shallow placement of nutrients. The sweeps are designed with thin Vertical Portion Hi Carbon steel to minimize soil disturbance at high speeds. To prevent breakage, the sweeps are attached to a 1-1/4" x 2" edge bent alloy steel shank to allow side movements when striking rocks. Standard 3", Optional 3-1/2" & 4" OD tubes with clip, and Wing Drop Tube available on all sweep sizes.

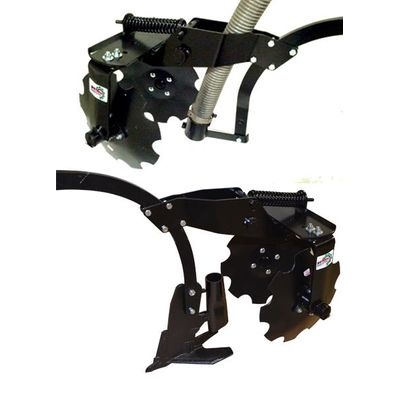

Dietrich - Slurry Clozr

The Dietrich Slurry Clozr is a premium unit for trouble-free performance, not budget designed.

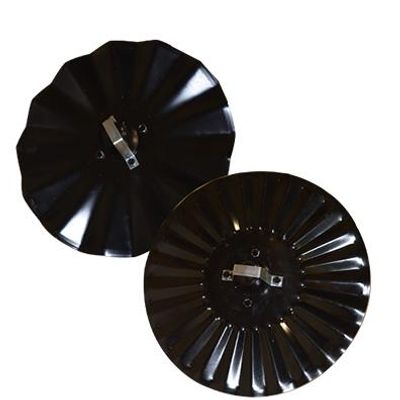

Dietrich - 13 Wave Conical Blade

Unique Swivel-Mounted Conical Blades enter the soil in the direction of travel ahead of the spindle and move soil laterally behind the spindle. Does not create excessive side load on mounting or tank. Widens slot for nutrient placement. Use on all Rotary Injectors & with Rotary/Sweep System.

Dietrich - Slurry Clozr

The Dietrich Slurry Clozr is a premium unit for trouble-free performance, not budget designed. Designed to be used continuously as part of the Dietrich Conical Blade Rotary Sweep Injection System or as desired with the Dietrich AR Slurry Sweep Injector.

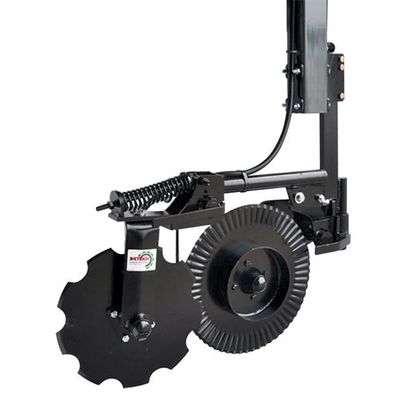

DSI - Conical Blade Sweep/Rotary Injection System

This complete injection system includes the Dietrich Series 70 Assembly with 800# Down Pressure Coulter Assembly, Coulter Mount, 13 Wave Swivel Conical Blade, 4" Rotary Injection Discharge Tube & Bracket, your choice of Chisel Point Sweep & Discharge Tube, and the Dietrich Clozr with choice of Notched Blades.

Manure Injection Systems - Chisel Point Sweeps

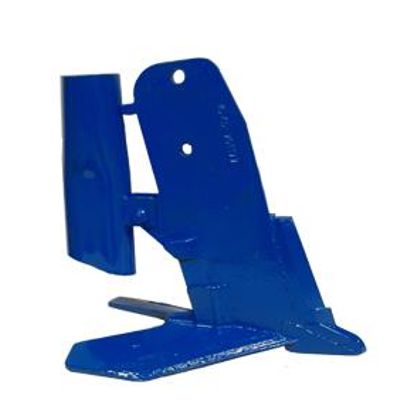

DSI - 8" Low Rate Sweep

Shown with standard 3" tube. 8" Wing width. Designed for hi speed (5 - 8 mph) and lower rates (2,500 - 5,000 gallons per acre) to meet the E.P.A. Phosphorus Rules. Lifts the soil less than 1". Vertical shank portion is 1/2" thick. The 8" Low Rate Sweep moves less soil, allowing higher speeds at low rates.

DSI - 8" Hi Rate Sweep

Shown with optional 3-1/2" tube and clip (2-1/2" hose fits inside). 8" Wing width. Designed for higher rates (5,000 - 10,000 gallons per acre). Lifts the soil than 1-1/4". Vertical portion 1" thick at the lower rear to create a wider slot to facilitate the filling of the soil cavity created by the wings. The 8" Hi Rate Sweep parts the soil more and creates a larger soil cavity than the 8" Low Rate Sweep to contain the liquid.

DSI - 12" Hi Rate Sweep

Shown with optional 4" tube and clip (3" hose fits inside). 12" Wing width. Designed for higher rates (10,000 - 15,000 plus gallons per acre). Lifts the soil less than 1-14". Vertical portion is 1" thick at the lower rear to create a wider slot to facilitate the filling of the soil cavity crated by the wings. The 12" Hi Rate Sweep parts the soil more and creates a larger soil cavity than the 8" Hi Rate Sweep to contain the liquid.

Max - 12" Lift Sweep

Shown without tube. 12" wing width. Designed for higher rates (20,000 plus gallons per acre). Rear extensions provide higher lift to create a larger cavity.

Nitrogen Injection Systems

Dietrich - Conical Blade Conical Blade Nitrogen Injector

Features: Conical blade for wider slot – better placement. Clozr™ blade to prevent Nitrogen loss. Hi tensile steel for durability. All adjustment bolts are Grade 5 carriage. bolts in square holes – 1 wrench adjustment. 2 coat black enamel baked paint. 3 year warranty.
