E-Z Trail Incorporated products

Specifications - Approx. Capacity: 1020 Bu. Standard Tires: New 30.5-32 R1 16 Ply. Optional Tires: New 900/60R32. Spindle Diameter: 4-1/2" High-Strength. Box Dimensions: 11` 9" x 21` 3". Ht - Right: 11` 3". Ht - Left: 11` 10". Length: 26` 7". Auger Size: 18" Diameter, Top Auger 14` long. Discharge Ht.: 14` at Metal Spout, 13` at Rubber Spout. Wheel Tread Width: 120" w/Std. Tires, 128" w/Opt. Tires. Other Features: 1-3/4" 1000 PTO, Standard Tail-lights & Worklight.

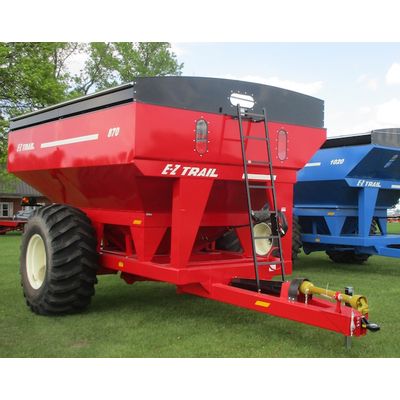

Specifications: Approx. Capacity: 870 Bu.. Standard Tires: New 30.5-32 R1 or R3 12 Ply. Optional Tires: New 900/60R32. Spindle Diameter: 4-1/2" High-Strength. Box Dimensions: 11` 9" x 16` 3". Ht - Right: 11` 3". Ht - Left: 11` 10". Length: 26` 1". Auger Size: 18" Diameter, Top Auger 14` long. Discharge Ht.: 14` at Metal Spout, 13` at Rubber Spout. Wheel Tread Width: 120" w/Std. Tires, 128" w/Opt. Tires. Other Features: 1-3/4" 1000 PTO, Standard Tail-lights & Worklight.

Specifications: Approx. Capacity: 550 Bu.. Standard Tires: New 23.1-26 R1 or R3. Spindle Diameter: 3-1/4" High-Strength. Box Dimensions: 9` 10" x 13` 6". Ht - Right: 9` 8". Ht - Left: 10` 9". Length: 19` 9". Auger Size: 14" Diameter, Top Auger 14` Long. Discharge Ht.: 12-1/2`. Wheel Tread Width: Adj. 94" to 120". Other Features: Standard Tail-lights & Worklight.

Approx. Capacity: 490 Bu.. Standard Tires: New 18.4-26. Optional: New 23.1-26, Used 20.8-38. Spindle Diameter: 3-1/4". Box Dimensions: 10` x 12`. Ht - Right: 9` 6". Ht - Left: 10` 6". Length: 17` 4". Discharge Ht.: 12-1/2`. Wheel Tread Width: Adj. 90" - 120". Loaded Tongue Weight: 2500 lbs.. Approx. Wgt.: 5500 lbs..

Approx. Capacity 710 Bu. Standard Tires New 24.5-32. Optional New 30.5-32. Spindle Diameter 4-1/2". Box Dimensions 12` x 14`. Ht - Right 9` 11". Ht - Left 11` 2". Length 18` 6". Discharge Ht. 13` 11". Wheel Tread Width 120". Loaded Tongue Weight 2800 lbs. Approx. Wgt. 7900 lbs.

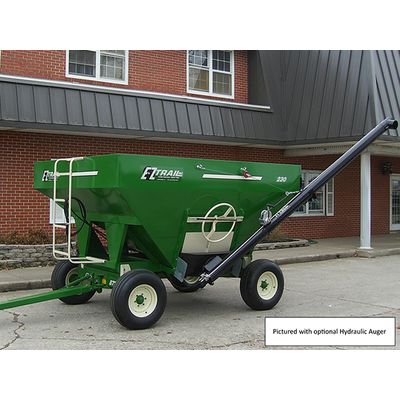

230 Bu. 8-1/2` x 10-1/2` Gravity Box on 872W Running Gear w/11L x 15 tires. Rigid, durable, and economical with a low center of gravity that has been proven on thousands of  American farms. Total Height: 85".

300 Bu. 8-1/2` x 12-1/2` Gravity Box on 1074 Running Gear w/12.5L x 15 tires. The first wagon to have built in stress protection, a standard feature on 300, 400, & 500 Bushel models. They can take years of punishment without cracking up as the axles float independently over uneven terrain. Total Height: 96".

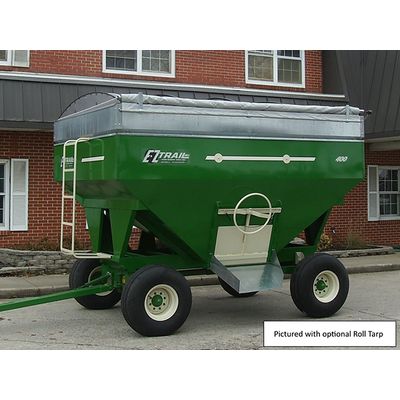

400 Bu. 8-1/2` x 12-1/2` Gravity Box on 1384B Running Gear  w14L x 16.1 tires. Welding shops have inquired about selling our wagons because they weld & repair other brands of wagons, but they seldom have to repair an E-Z Trail. The oscillating axles do make a difference. Total Height: 113".

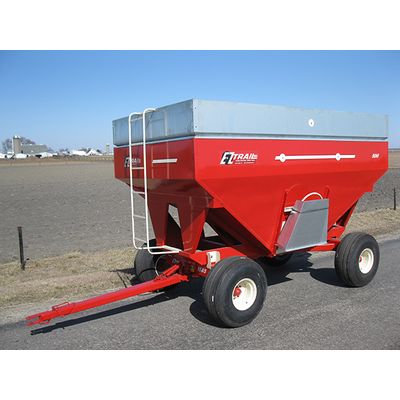

500 Bu. 8-1/2` x 14` Gravity Box on 1585 Running Gear. w/16.5L x 16.1 tires. Inside extension flanges are self cleaning. US Patent #4,460,214. All wagons have adequate chute height, 17" to 21", for unloading into auger hoppers. Total Height: 121"

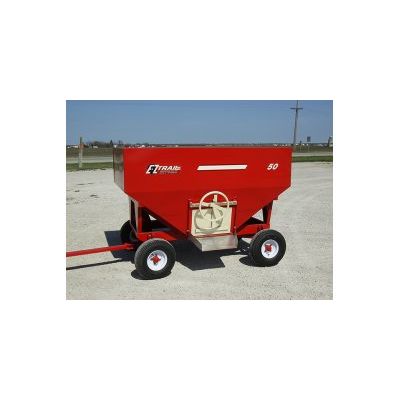

50 Bushel Gravity wagon measures 4` wide, 6`6` long and 57` tall. Built farm tough, just like the big ones.
