Ekin Silo products

EKİN grain storage systems are designed to withstand the difficulties caused by commercial use. Our silos are built strong to withstand the extra stress caused by continuous use, extreme temperatures, high winds and heavy snow loads.  Our flat bottom silos have a wide range of models from 4,57m to 32,00m diameter and from 50 to 25.000 tons capacity. The sidewall sheets of our silos are S350GD+ in high strength structure steel quality. Optionally available in Z350 gr/m2, Z450 gr/m2 and Z600 gr/m2 galvanized coating options.

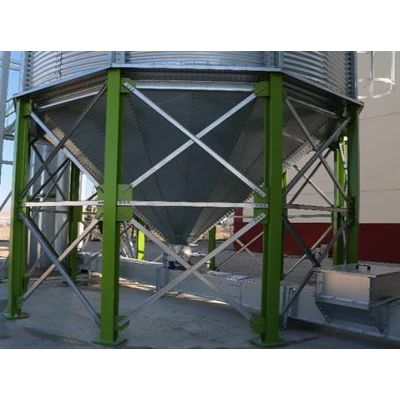

Commercial hopper silos are used to export grains quickly, to store of moist grain before drying or to blend of products in silos. Because the maximum load is collected in the silo’s floor and feet on commercial hopper silos, the steel construction structure at the silo foot is designed from galvanized steel by our engineers in the direction of static analysis. Thanks to the support columns, silo loads are transferred to the floor. ”H” section beams are used to ensure extra durability and safety on silo’s feet. Cross profiles increase both the structural strength of the base and eliminate the risk of overturning of silo. Hopper angles are offered as 60°, 45°, 40° and 37°according to silo diameter, grain type to be stored and place to be built. The diameter of our silos varies between 4,57m and 10,97m. Our silos can store grain up to 1897m³.

Economical hopper silos are small-capacity and mostly used for loading trucks or wagons. Silo diameters vary between 2.74m and 6.49 m. Silo capacity vary between 10m3 and 281m3.

Feed silos have many advantages, such as being able to discharge quickly and be reasonably priced. Our feed silos containing the latest technology in storage are ideal for product density high feed and seeds. Because the hopper structure is designed with extensions from the ground, it provides a perfect structural integrity. Silos designed for exceptional strength have superior stiffener feet specially designed for vertical and lateral force and they are tested under 50% overload. Our silos are between 1.83 m and 3.66 m in diameter and can store between 4m3 and 77m3 products. Hopper angle is produced between 60 and 67 degrees depending on the diameter and size of the silo.
