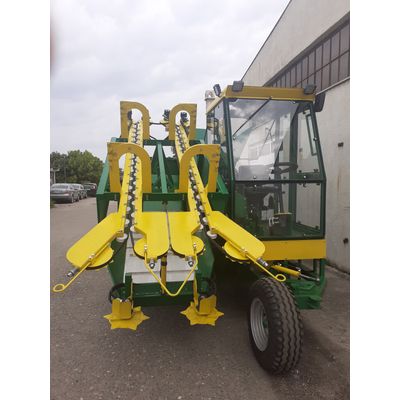

Harvested corn cub stays inside the protecting leaves and it can be sold in markets. Harvester SP-14 is a self-propelled machine. Machine has Kubota diesel engine (35 HP). Power is transmitted to the wheels through Poclain self-braking hydro motors. It has continual change of speed from 0 to 12 km/h (automatic). Machine harvests two rows (distance between the rows is 60-65 cm) The height of cutting knives and pulling belts is adjustable (from the cabin). The speed of the belts and rollers for tearing off the corn cub is adjustable (from the cabin) After passing the fan and cleaning the dirts, corn cubs are stored in the corn tank. Volume of the corn tank is 3m3 with unloading height of 2,5m. Machine has a hydraulic steering wheel. It is equipped with lights for night harvest.

One-row sweet corn harvester SP-17 is designed as independent unit. Using PTO shaft and standard connections in can be attached to the tractor (minimum 25 HP).

This machine can be used for harvesting, cleaning and packing stone fruits (cherries, plums, olives …) It is made as self-propelled machine.

Minimal distance between the tree lines must be 4m. Minimal height of trunk (from the ground to the first branches) 50cm.  Shaking branches instead of trunk, this machine is suitable for trees with trunks lower then 50cm.

An upgraded variant of the SP-08-B machine is the SP-08-B-A. What is new compared to the SP-08-B is that the driver hydraulically closes the other side of the receiving canvas. In this way, the machine is operated by two workers, the driver and the worker replacing the crates. Another conveyor can be added, so the fruits can be connected to the BOX pallet.

Minimum distance between the rows must be 2 m. Maximum height of the pillars and the plants in the row must be 2 m.

Harvester SP-10 is made for blueberries and raspberries with pillars and wires inside the row, with anti-hail net. Harvest is done by two separated machines, one on each side of the row. With this system of two machines, there is no problem with the pillars which support anti-hail net.

This machine can be used for harvesting, cleaning and packing raspberries (Polka, Polana, Heritage…) It is made as self-propelled machine (diesel engine 35HP).  There must be 1,3m of free space between the rows.

Machine can be used for harvesting, cleaning and packing stone fruits (cherries, plums, olives as well as pistachios, filberts…. ) Independent design for a power take-off shaft operation. Minimal height from the ground to the first branches is 50cm. Minimal distance between the tree-lines is 4m.

Minimal distance between the tree lines must be 4m and min. Height of trunk (from the ground to the first branches) 50cm. This machine can be used for harvesting, cleaning and packing stone fruits (cherries, plums, olives …) It is made as independent hydraulic aggregate which must be assembled on tractor IMT 539 without cabinet.
