Erb & Roberts, Inc products

Individually mounted double spring loaded anhydrous ammonia applicator assembly to fit any tool bar. Pictured here mounted on a 4" x 4" square bar. The applicator knives are not mounted. The brackets can accomodate front or back swept knives. Our standard set up is with a front swept knife with chrome alloy wear insert. Four (4) or five (5) bolt coulter hub available to fit coulters up to 26" in diameter. Pictured here with a 22" x 3/16" coulter on a five (5) bolt hub. Eleven (11) assemblies mounted on a 4" x 4" square tool bar in a pasture in Chiefland Florida.

EDR Series I Adjustable Bedder with Rigid Coil Chisels. This machine is being used in Homestead Florida. Eight (8) row fixed bedder with hydraulic wings (hydraulic cylinder and hoses are not pictured). 1 1/8" axle, 7" disc spacing, 18" and 22" discs, 3/8" x 4" x 7" toolbar.

Fireline Harrow. 12" Disc Spacing: 2 1/8" round axle equipped with Timken Bearings. Angled frame protects from obstacles.

12" Disc Spacing: 2 1/8" (53.9 mm) axle - Weight per disc: 427 lbs average

Three Row Furrowing Plow with Hydraulic Row Markers.

Single and Multiple Row Disc Ridger/Cultivator. Eight (8) row fixed bedder with hydraulic wings (hydraulic cylinder and hoses are not pictured). 1 1/8" axle, 7" disc spacing, 18" and 22" discs, 3/8" x 4" x 7" toolbar

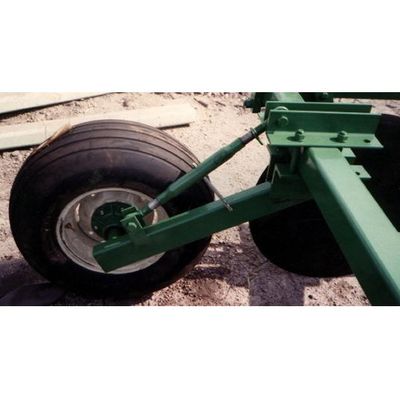

Heavy duty single and dual gauge wheel assemblies to fit any tool bar with hub capacities up to 8000 pounds. Rigid and floating packing wheel assemblies with any size packing wheel. The wheel pictured is an 18"x32" packing wheel for sugar cane planting.

Coulter blades from 12" up to 48" in diameter and up to 3" thick drilled to fit any bolt pattern for any machine. These coulters can be used for subsoiling or planting. The machine pictured with 42"x5/8" T-1 Coulter blades was designed as a (4) row subsoiler for sugar cane. Universal coulter and axle mounted hub to fit any type tree planter. Coulter pictured is a 32"x1/2" T-1 Coulter to fit a TimberCat tree planter.

The TERRA-RISER Tandem disc harrows can be built as a pull type or a lift type. We have models for use in agriculture, but due to the heavy duty construction of these harrows they are primarily used in Forestry.

The modd AF Disk Plow is designed for extra strength and offers a wide range of adjustments that pern* efficient operation under aa types of fteW and sod conditions
