FAN Separator GmbH products

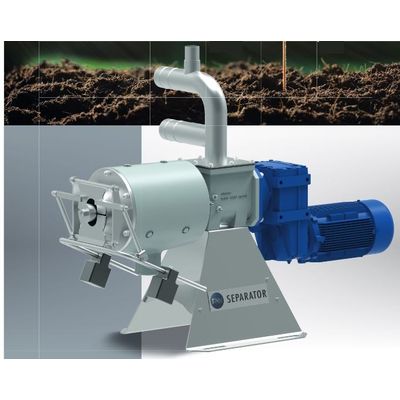

Auger of stainless steel. Screen of stainless steel. Screen sizes to choose: 0.25 / 0.50 / 0.75 / 1.00 mm. Housing of cast iron. Discharge flaps of stainless steel, with 2 weights. Mounting frame of galvanized steel. Multi-range gearmotor 2,2 kW 400 V / 50 Hz. Inlet piece with flanged tubes 3" (entry / overflow), ventilation 1 1/2". Clear phase hose connection DN 90.

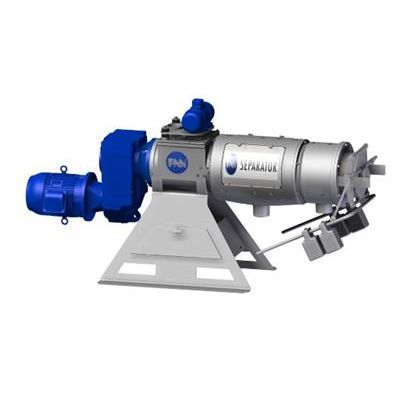

Inlet housing and screen housing of cast iron. Press flange with output regulator of stainless steel with 4 weights. Base plate made of stainless steel for installation on the floor. 4" outlet. Screen reinforced 520, Optional screen width. Auger 200/800/1100, 5-10, TD, 2SFK (F10412180). Oscillator, connection size 4". Gear motor U IEC 4kW (F10632720)

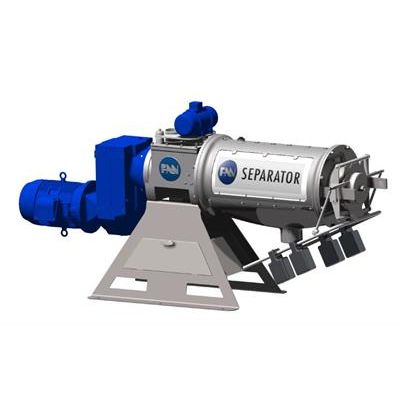

Inlet housing and screen housing of cast iron. Press flange with output regulator made of stainless steel, with 4 weights. Base plate of stainless steel, four an installation on the floor . Two 4" outlets. Screens reinforced 520 and HD 260,  optional screen width . Auger for PSS 1.2-780: 200/1060/1300, 5-10, TD, 2SFK (F10412210). Oscillator, connecting size 4". Gear motor:  U IEC PSS 1.2-780:  5,5kW (F10632721).

Inlet housing and screen housing of cast iron. Press flange with output regulator made of stainless steel with 2 weights. Base plate made of stainless steel; for mounting on the floor. 5" outlet. Screen reinforced 520 and HD 260, screen width 1mm. Auger core diameter 180mm for PSS 3.3-  780:  220/1060/1300, 10-10, TD, LFK (F10422214). Oscillator connection 4". Gear motor U IEC bei PSS 3.3-780: 7,5kW (F10632673).

Inlet housing and screen housing made of stainless steel 1.4571. Press flange with output regulator made of stainless steel, with 4 weights . Base plate made of stainless steel for an installation on the floor . 5" Outlet . Screen basket HD 520 V4A. Optional screen width . Auger 200/800/1100, 10-10, TD, 2LFK (F10442189 ). Oscillator connection 4". Gear motor  U IEC 5,5kW (F10632657 ).

Inlet housing and screen housing made of stainless steel 1.4571. Press flange with output regulator made of stainless steel, with 4 weights. Base plate made of stainless steel for an installation on the floor. 5" outlet. Screen baskets reinforced 520 V4A and HD 260 V4A;. Optional screen width . Auger for PSS 5-780: 200/1060/1300, 10-10, TD, 2LFK (F10432789). Oscillator connection 4". Gear motor  U IEC bei PSS 5.2-780: 5,5kW (F10632657 ).

Flanged auger. Filter elements R (perforation  6mm). Filter elements E (perforation  5mm). Housing parts made of stainless steel 1.4301. Water collecting pan, standard model . E-Motor 37kW 400V-50Hz. Helical gear box. Hydraulic aggregate  2,2kW  400V-50Hz for press cylinder. Hydraulic hoses L=7m. Electricity and water to cool the machine must be provided by the customer.

Flanged auger. Filter elements R (perforation 6mm). Filter elements E (perforation 5mm). Housing parts made of stainless steel 1.4301. Water collecting pan, standard model. Bevel geared motor 22kW  400V-50Hz. Hydraulic aggregate  2,2kW  400V-50Hz for the press cylinder. Hydraulic hoses L=7m  . Control panel *.
