Faster S.p.A. products

Push-pull female couplings designed for agricultural applications, allowing connection with the male half under residual pressure. These couplings have a nominal diameter of 12.5 mm and a thread size of 1/2 inch. Various dimensions include options for 27 mm, 30 mm, 32 mm, 34 mm, 38 mm, and their corresponding inch equivalents. The lengths range from 106.2 mm (4.18 inches) to 162 mm (6.38 inches). These couplings support a maximum flow rate of 70 liters per minute (18.492 gallons per minute) at a pressure of 0.2 MPa (29 psi). Constructed for durability, they have a burst pressure ranging from 25 MPa (3625 psi) up to 110 MPa (15954 psi). The coupling weights vary between 513 grams (1.13 lb) and 685 grams (1.51 lb). Operating temperatures range from -25°C to 100°C (-13°F to 212°F), ensuring functionality in diverse environmental conditions. These couplings are suitable for use with tractor rear lines and tipper semitrailers in agricultural settings.

Faster`s compact push-pull female couplings are engineered specifically for agricultural applications requiring higher flow rates, with capacities up to 250 l/min. These couplings feature a standard size of 12.5 mm or 1/2 inch, with various lengths and weights. The specific dimensions include 32 mm (1.26 inches) by 42 mm (1.65 inches) by 94.7 mm (3.73 inches), with a flow rate of 70 l/min at 0.2 MPa or 18.492 gal/min. The couplings can withstand burst pressures up to 110 MPa (15954.151 psi) and operate in temperatures ranging from -25°C to 100°C (-13°F to 212°F). They are lightweight, with weights ranging from 443 g to 530 g, suited for efficient handling and attachment to agricultural machinery. These couplings are designed for use in tractor rear lines and tipper semitrailers, ensuring reliable fluid connections and minimizing pressure drops. Users are advised to consult the provided pressure drop diagram for optimal usage settings.

These compact push-pull hydraulic couplings are specifically designed for the agricultural sector, offering flow rates up to 250 liters per minute. Constructed for female connections, these couplings come in various sizes with a nominal diameter of 12.5 mm and 1/2 inch threads. They feature dimensions mostly ranging from 32 mm to 110.2 mm in length and weights from 443g to 500g, depending on the specific model. Male couplings are also available with dimensions predominantly around 27 mm to 44 mm and weights of approximately 81g to 110g. The couplings are designed to operate efficiently at 70 liters per minute with a pressure drop of 0.2 MPa. The burst pressure can withstand up to 100 MPa, and they can operate within a temperature range of -25°C to 100°C. These technical specifications make them suitable for a variety of agricultural machinery, including tipper semitrailers, ensuring secure, high-flow, and reliable fluid connectivity.

These push-pull female couplings are designed for agricultural applications and can be connected with both halves under residual pressure. Featuring a size of 12.5 mm and 1/2 inch, these couplings ensure optimal fluid transfer with a maximum flow rate of 70 liters per minute (18.492 gallons per minute) at 0.2 MPa. The couplings come in various lengths and sizes to fit different requirements: 27 mm, 32 mm, 36 mm, and 42 mm in diameter. Each coupling is meticulously engineered for durability, weighing between 512 g (1.13 lb) to 575 g (1.27 lb). With burst pressures up to 100 MPa (14503.774 psi), these couplings provide robust performance across a temperature range from -25°C to 100°C (-13°F to 212°F). These specifications make them highly suitable for heavy-duty field operations, ensuring reliable and efficient fluid transfer even under the stressing conditions of agricultural work.

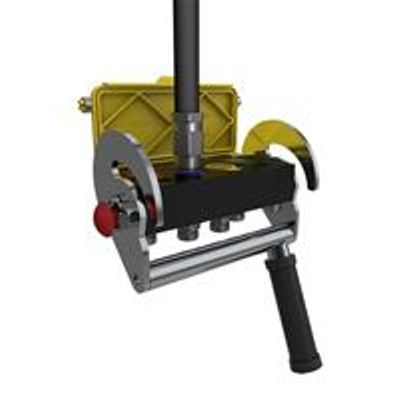

The MultiFaster 4-line hydraulic couplings, compatible with ISO 16028 standards, are designed for high-performance hydraulic systems. These couplings are female connectors with a size of 3/8 inches, offering a robust solution for connecting multiple hydraulic lines efficiently. The flow capacity reaches 40 liters per minute at 0.2 MPa, equivalent to 10.567 gallons per minute, with a burst pressure up to 100 MPa or 14503.774 psi, ensuring reliable performance under high-pressure conditions. The couplings operate effectively within a temperature range of -25°C to 100°C (-13°F to 212°F), making them suitable for various challenging environments. Weighing 3550 grams (7.83 lbs), these couplings provide a durable yet manageable solution for industrial applications that demand precise and secure hydraulic connections.

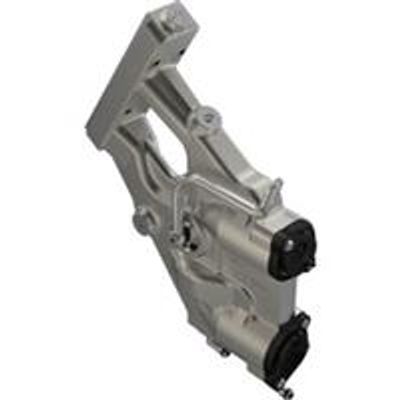

This product series offers castings equipped with three couplings designed specifically for construction equipment. These male couplings come in multiple sizes with a standard measurement of 12.5 mm or 1/2 inch, and variations in length from 178.7 mm to 215 mm. They handle a flow rate of 100 liters per minute at 0.2 MPa and are capable of operating within temperatures ranging from -25°C to 100°C. Constructed to manage pressures of up to 35 MPa, these castings are versatile and suitable for various construction equipment like compact wheel loaders, skid steer loaders, and telehandlers. The burst pressure ratings assure reliable performance under demanding conditions, with variations in weight ranging from 4309 g to 5158 g depending on the specific model.

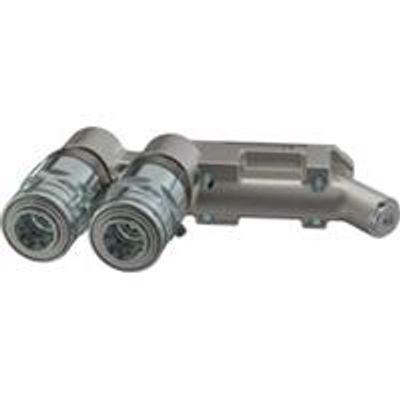

Faster offers a series of castings with couplings designed for agricultural applications. These products are available in metric and inch sizes, accommodating various flow rates and pressures. The couplings can handle a burst pressure of up to 100 MPa (14,503.774 psi) and function efficiently within a temperature range of -25°C to 125°C (-13°F to 257°F). Technical specifications indicate the flow capacity, measured in liters per minute (l/min) and gallons per minute (gal/min), with detailed pressure drop data included. The castings comply with industry standards and regulations, ensuring safety and reliability. Such features make these couplings suitable for demanding agricultural environments. Detailed diagrams and indicative data are provided for reference.

The Series 6 couplings are specifically designed for agricultural applications, allowing for the connection and disconnection under residual pressure on both the female (F) and male (M) sides. These couplings operate efficiently within a temperature range of -25°C to 125°C (-13°F to 257°F), making them versatile for various environmental conditions. The design of the couplings ensures minimal pressure drop, although the provided data is indicative and may vary. The inclusion of the ability to connect and disconnect under residual pressure on both halves enhances their functionality in high-pressure scenarios. The product specifications take into account standard dash sizes and pressures up to 1 MPa (10 bar).
