25 products found

Products

  • Cattle Chutes

  • Filson - Automatic Heavy Duty Chute / Cattle Crush

    Filson - Automatic Heavy Duty Chute / Cattle Crush

    All controls centrally located. One man operating chute. Easy Adjustments for different size livestock. Front and side exits. Vertical drop bars and side panels. Right or left hand controls. Portable or stationary. Head Gate - Automatic or Manual. Wood or Steel Floor. Wood or Steel Sides. Also known as 'cattle crushes' in the UK. Chute is shown with optional Nose Bar.

  • Filson - Model CX - Heavy Duty Chute / Cattle Crush

    Filson - Model CX - Heavy Duty Chute / Cattle Crush

    Features: Recommended for animals over 1200 lbs. Adjustable width on floor. All Controls centrally located. Side 'V'  squeeze. One man operating chute. Easy adjustments for different size livestock. Front and side exits. Swing out side U-bars and drop lower side panels. Right or left hand controls. Portable or stationary. All steel. Head Gate - Automatic or Manual. Also known as 'cattle crushes' in the UK. Optional Nose Bar. Only the CX Chute...

  • Hydraulic Chutes

  • Head Gates

  • Filson - Automatic Cattle Head Gate

    Filson - Automatic Cattle Head Gate

    This head gate catches the animal automatically.  When the side panels are in the inward position, the opening is large enough to allow passage of the animal's head.  When the animal's shoulders hit the side panels, the head gate closes locking the head in place.  To release the animal, move the panels to an outward position. Head Gate can be changed for right or left hand control.

  • Filson - Model XL - Automatic Cattle Head Gate

    Filson - Model XL - Automatic Cattle Head Gate

    The XL Automatic Head Gate is designed for larger breeds of cattle.  Constructed of heavier materials, it has the same features and ease of operation found in the automatic Head Gate. Gate is shown with optional Nose Bar.

  • Filson - Model XLT - Manual Cattle Head Gate

    Filson - Model XLT - Manual Cattle Head Gate

    This stanchion type head gate can be mounted on the XL Chute or the Standard Chute - in place of the Automatic Head Gate. The locking device on this head gate is a ratchet-type. Nose chain is standard. This head gate is ideal for horned cattle.

  • Calf Table

  • Filson - Left Hand Calf Table

    Filson - Left Hand Calf Table

    The calf table rolls left or right for easy access to both sides of the animal.  The circle concept keeps the alley blocked at all times.  Equipped with stanchion type head gate with friction lock, adjustable leg bar, vertical drop panels on both sides. Holds calves up to 500 lbs. The calf table is also portable.

  • Goat Table

  • Filson - Left Hand Goat Table

    Filson - Left Hand Goat Table

    The goat table is designed to roll left or right for easy access to both sides of the animal. The goat and table are always in the center of the base which allows both the animal and table to roll vertically and horizontally with the least amount of effort. The special features for goats include a hinged drop floor, one removable bottom side panel, and a higher base. The table comes equipped with stanchion type head gate with friction lock, dual...

  • Sweeps & Alleys

  • Filson - Open Sweep

    Filson - Open Sweep

    The Filson Open Sweep was designed to allow the cattlemen a more portable as well as a more versatile way of handling cattle. The Sweep Pen door will latch every 18' for maximum safety for both the operator and also the animal. Another unique design of the Filson Sweep Pen is the versatility of the swing door latch. It can be easily changed from a left hand sweep to a right hand sweep by changing two springs on the latch. This pen is sturdy but...

  • Filson - Open Alley

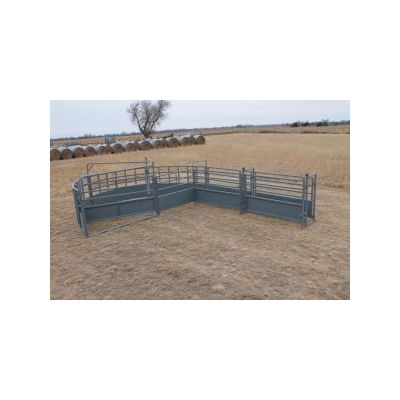

    Filson - Open Alley

    The Filson Open Alley is designed to go with the Filson Sweep Pen. Keeping with the same concept as the pen for being portable as well as versatile. The Alley comes in 8 ft straight sections, which are sheeted 24 in from the bottom of each panel for maximum safety for the animals. The sections of the alley can be adjusted from 20 in to 28 in on the inside. Another feature is that it can be easily changed from a left hand to a right hand alley by...

  • Tubs & Alleys

  • Filson - Crowding Tubs

    Filson - Crowding Tubs

    Full 180 Degree, 1/4 Tub or 45 Degree. Only Full has Side Exit. Left Hand or Right Hand. Optional Switching Gate. Optional Catwalks. 10 ft Radius. 5 ft 5 inches High. 16 Gauge Sheet Metal Sides.  Four 7 ft Upright Posts - 2 1/2 inch tube. Positive Latch.2 inch Steel Tubing Side Frames. Outside Entrance Gate. 4 inch Pivot Post. Weight 1480 lbs.

  • Filson - Alleyways

    Filson - Alleyways

    The alleyways are made in 8 feet sections as straight units, or as left or right curves.  The sides are tapered at the bottom and adjust from 27 inches at the top and 19 inches at the bottom to 17 inches at the top and 9 inches at the bottom.  These units are easy and fast to assemble for use in more than one location.  The 2 inch and 2 1/2 inch tubular steel gives strength and durability.  Side panels are of 48 inch x 16...

  • Filson - Full Tub 100 System

    Filson - Full Tub 100 System

    One Automatic Heavy-Duty Chute. One Palpation Cage. One 24ft Crowding Alley with Stop. One Switch Gate. One Full Tub.Twenty Two 12ft Fence Panels. Three 10ft Fence Panels. Two Regular 10ft Panels. Two 10ft Alley Spreaders. Three 12ft Bow Gates. Two 12ft Panels with 4ft Gate. One 4ft Gate. Seventeen 2-Way Posts & Pads. One Corner Post & Pad. One 10ft Bow Gate. We can design corral systems to your specifications.

  • Wheel Kit

  • Filson - Wheel Kit

    Filson - Wheel Kit

    The Wheel Kit is a separate trailer with a detachable tongue to which the chute bolts.  The chute is elevated in position for transport by means of a lever-jack.  This unit can be lowered into working position in a matter of seconds.  Wheel assemblies will fold to the back of the chute or can be completely removed when chute is in use. Tires are not included with this unit. Tire size suggested: P205-15.

  • Panels & Gates

  • Filson - Corral Panels

    Filson - Corral Panels

    Corral Panels are available in 8 ft, 10 ft an 12 ft lengths.  Each panel is constructed of 2 inch 14 gauge tube steel.  Each Panel is 70 inches in Height.

  • Accessories

  • Filson - Palpation Cage

    Filson - Palpation Cage

    The palpation cage can be added to Filson Chutes or adapted to mount on other makes of chutes.  Doors on both sides swing out making it more convenient for pregnancy testing, castrating, clamping. etc. It is equipped with a vertical sliding rear gate that has a locking device to keep gate down.

  • Filson - Switch Gate

    Filson - Switch Gate

    The Switch Gate, when added between the alley and tub can be used to divert cattle into a separate area for loading, etc. Weight 115 lbs

  • Filson - Flow Control

    Filson - Flow Control

    Three-Way and Two-Way Exit.  Right hand or left hand exit.  Made to fit between alleyway and tub. The Flow Control allows the crowding tub more versatility for your alley needs.

  • Filson - Spring-loaded Alley Stop

    Filson - Spring-loaded Alley Stop

    Spring-loaded Alley Stops are an option used with the alleys. The alley stop allows the animal to pass through and then spring behind them to eliminate backup. Weight 25 lbs.
