F.P. Bourgault Tillage Tools Ltd. products

Seed is delivered through the precision funnel opening. The front delivery provides precise seed delivery and reduces plugging with better soil flow. Extra hard surfacing on critical wear areas increases the life of the holder.

Liquid Phosphorus is delivered onto the seed bed, below the seed. The seed is delivered through the precision funnel opening. Front delivery provides precise seed delivery and reduces plugging with better soil flow. Extra hard surfacing on critical wear areas increases the life of the holder.

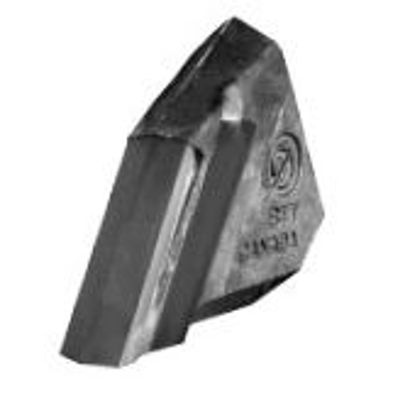

3/4” (19 mm) tip with extra long carbide on the nose and sides for highly abrasive conditions. The same as 200-TIP-0802 but with the addition of the side carbide inserts.

Overview: 3-1/2” (89 mm) Paired Row liquid double shoot tip with 3/4” horizontal and no vertical seed/ fertilizer separation. Packer Recommendation: 3-1/2” (89 mm) or wider. Fertilizer Options: Liquid.

Seed Placement: Seed is directed rearward through the tip which places the seed in two rows onto a firm, unfractured seedbed. Fertilizer Placement: Fertilizer is delivered on the same level, between the two rows of seed. In less than ideal conditions, mixing between seed and fertilizer may occur.

This spreader attachment will distribute the seed evenly in a 3″ to 4″ (76 mm to 100 mm) band. Seed spread may vary depending on sweep size, soil type and fan speed.

This holder has 1-3/4″ (45 mm) bolt hole spacing. The bolt hole section is curved to fit all 47° shanks except the Bourgault and Ezee-On.

This holder has 2-1/4″ (57 mm) bolt hole spacing. The bolt hole section is flat and has two sets of holes. The top set of holes should be used in almost all cases when mounting this holder to the shank. It fits on the Bourgault chisel plow shanks as well as the LH755 shank used on the Morris Magnum III and the Morris Concept 2000.

Fits all Bourgault and Ezee-On field cultivators, air seeders and air drills.  1-3/4” (45 mm) center to center.  1/2” (12 mm) hex head bolts.

Fertilizer Type: NH3. Tube Size: 1/2″ (12 mm) tubes to fit cold-flow NH3 kits. Bolt Hole Spacing: 1-3/4″ to 2-1/2″ (44 – 64 mm). Overview: This fertilizer knife is only recommended on light duty units with light trips. Tip Options: Your choice of single shoot replaceable tips, giving you the flexibility to choose the right tip for your conditions.
