FRISMA products
Agricultural Machinery - Vegetable Topper Hurricane
FRISMA - Vegetable Topper for Agricultural Use
The Hurricane 1250 is a specialized agricultural machine designed for the efficient mechanical removal of plant foliage such as haulm from crops like carrots, parsley, spring onions, beetroot, celery, and parsnips. This machine features a robust body with an opening for strategic haulm ejection and is designed to be attached to a tractor's three-point linkage. Key operational elements include a main gearbox, driving rubber-flail-equipped drums through shafts and belt transmissions, facilitating a quiet operation. The drums rotate at a speed of approximately 1,300 rpm, powered by the tractor's PTO shaft. The machine's dual-drum system ensures effective removal of unwanted foliage without harming the vegetable roots. It also includes four adjustable wheels and can function independently or alongside root-topping saws to cut root heads before harvest. The topper is adaptable for right or left-side ejection, enhancing versatility depending on user requirements.Agricultural Machinery - Feed Pusher
FRISMA - Hydraulic Feed Pusher for Total Mixed Ration Systems
The Feed Pusher Model P by ZUPH FRISMA is a critical component for farmers using Total Mixed Ration (TMR) feeding systems. Designed to automate the laborious task of manually heaping TMR onto feed tables, this machine improves herd health and productivity by ensuring consistent feeding. It is equipped with a hydraulic actuator that allows for flexible operation on either the right or left side. This feed pusher can be adapted for use with loaders or mounted via the rear three-point linkage of tractors. While the tire is not part of the standard equipment, the machine stands out in its ability to enhance the efficiency of cattle farming operations, especially during intensive sowing or harvesting periods. By integrating mechanization in feed handling, ZUPH FRISMA supports large-scale agricultural operations with durable and versatile machinery.
Agricultural Machinery - The Furrower For Covering Mounds/Heaps
FRISMA - Agricultural Machine for Soil Preparation
The S595 is a robust agricultural machine designed for efficient soil preparation and mound management in farming operations. The machine is powered by a power take-off (PTO) shaft that drives a rotating steel plate. This plate is equipped with four cutting knives that effectively slice through soil and grass, preventing clogging and ensuring smooth operation. Additionally, it features four throwing blades that adeptly transfer soil onto mounds. The machine's working depth is precisely adjusted using a hydraulic jack, and the soil ejection height can be regulated with an adjustable cover. The S595 is capable of handling mounds up to 3 meters high and 24 meters wide within an estimated covering time of 15 to 30 minutes, depending on heap dimensions. While the S595 serves as the standard version, the VARIIS model is reinforced, featuring a double flat bar in its throwing blades and steel bearing housings for enhanced durability. ZUPH FRISMA continuously optimizes its products, reserving the right to modify technical specifications without notice.Agricultural Machinery - Scalper

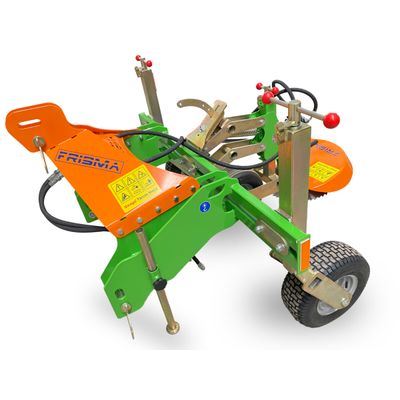

FRISMA - 1-Row Scalper with Hydraulic Motor
The 1-row scalper developed by ZUPH FRISMA is an advanced agricultural implement designed for precision and efficiency in farming operations. The core component, a robust steel saw, is powered by a hydraulic motor, enabling rotary motion for effective cutting. The scalper's cutting blade is highly adaptable with height and inclination adjustments, allowing for tailored operation to meet specific agricultural needs. To further enhance usability, the machine incorporates a feeler wheel, facilitating seamless cutting height adjustments during use. This equipment operates independently, within a set of saws mounted on a frame, or in tandem with a vegetable topper. The option with a hydraulically-driven pump via the PTO shaft further augments its versatility, making it suitable for varied farming setups. ZUPH FRISMA emphasizes ongoing development and reserves the right to modify technical specifications as needed.
