G. Magnano s.a.s. products

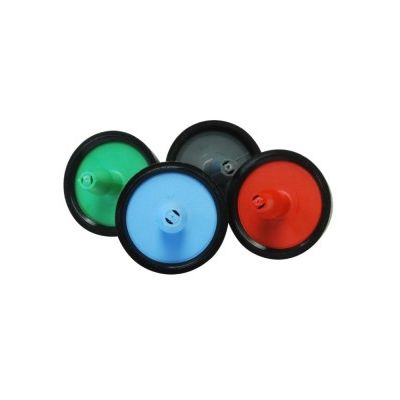

Suitable for orchards, vineyards, greenhouses, nurseries and wherever a precise flow-rate is required. Types: non regulated (NO), pressure compensating (PC), drop-stop (PC DS) - for hydroponic systems. Flows: 2, 4, 6 and 8 l/h. Fast coupling outlet for microfittings or barbed. Turbulent flow to avoid sedimentation and clogging. Made of last generation polymers guaranteeing long life and restistance to commonly used chemical agents and fertilizers. The colour of the base identifies the flow-rate. Outlet suitable for connections to micropipes (4 mm I.D.) and multi-way manifold (1, 2, 4 and multiple). Due to the minimum clogging possibilities, iDrop drippers cannot be disassembled and do not need maintenance.

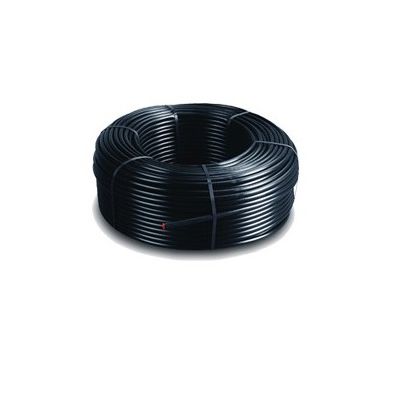

The classic dripline with pressure compensating cylindrical dripper is the ideal irrigation solution for multi-seasonal crops and it is suitable for sloping land and irregular topography. The particular design of the dripper allows the effective pressure compensation within a very wide range. Diameters: 16 and 20 mm. Thickness: from 35 to 49 MIL. Flow: from 1.1 to 3.8 l/h.

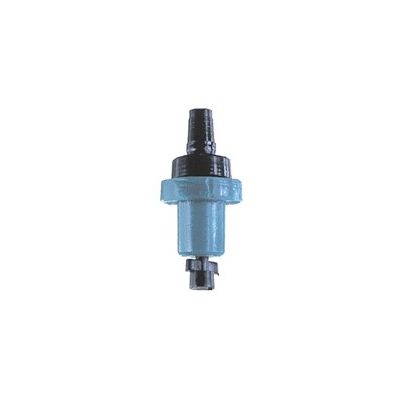

Suitable for orchards, vineyards, greenhouses, nurseries and wherever a precise flow-rate is required. Types: pressure compensating (PC), drop-stop (AL) - for hydroponic systems. Flows: 2, 4 and 8 l/h. Fast coupling outlet for microfittings. Uniform flow rates make the NGE ideal for use in difficult topographical conditions. A self-flushing feature ensures the emitter is free of debris during operation and shut-down while the anti-siphon feature protects against back siphoning. Unique emitter design and pressure compensating diaphragm stops the emitter from draining below 2-3 psi (0.1 - 0.2 bar), preventing complete drainage of the system, reducing the time required to refill the system at start-up improving the overall operation. The NGE stands as one of the industries top performing pressure-compensating emitters with a coefficient of variation of 3% or less.

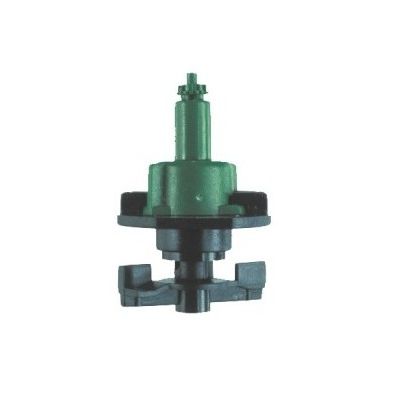

The 700 series is a dynamic sprayer, constructed with a thin needle located inside the orifice and vibrates when in operation and distributes evenly fine droplets on a medium area. Available flow rates: 40-160  liters per hour (0.154-0.704 gpm). Wetted diameter: 2.0 - 4.0 m

The 866 series is a dynamic sprayer, constructed with a thin needle located inside the orifice and vibrates when in operation and distributes evenly fine droplets on a medium area. Compared to 700 series, the 866 one has larger throw, with medium flow. Available flow rates: 40-160  liters per hour (0.154-0.704 gpm). Wetted diameter: 4.5 - 8.0 m

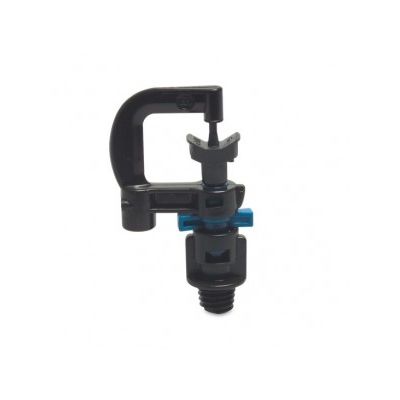

Microsprinkler for irrigation, propagation and micro-climate: Horticulture and viticulture, Orchards, Greenhouses and nurseries, Landscapes. Main features: Bayonet coupling, Modular construction for simple use and modification, Wide range of wetted patterns with 9 different inserts, 11 color-coded nozzles with flow rates from 23-333 l/h

Whether dealing with hillside topography, a curved flowerbed, or other special landscape installations, challenging angles demand nozzles that adjust to their surroundings. Engineered to emit larger than average water droplets, these nozzles are reliable, accurate, and fully adjustable to any angle from 0° to 360°. Pro Adjustable Nozzles cover distances from 1.2 m to 5.2 m.

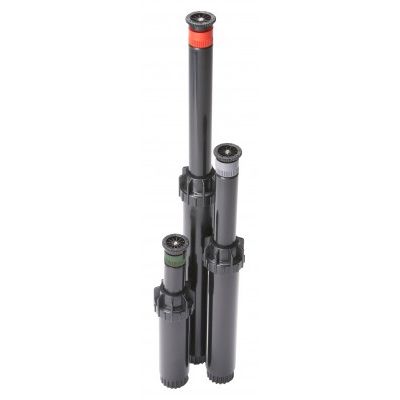

This compact slim-line spray sprinkler is available in 2", 4", and 6" models. Its innovative body incorporates a reliable two-piece ratchet, durable cap, male-threaded riser, and large filter screen, providing double filtration on 4" and 6" models. A Standard PS Ultra models include a pre-installed Pro Adjustable Nozzle.
