Gadson Electronics products

BRIEF SPECIFICATION : Va Inch BSP male thread Input & 015mm barbed Output. Pressure assisted, high pressure valve up to 8 bar pressure. APPLICATION : Washing machine, Dish washer, Ice Maker. VALVE TYPE : 2 WAYS, Input Pressure assisted. PRESSURE RANGE : 0.3 TO 8 Kg/Cm2. INLET : 3/4 BSP Male. OUTLET : 015mm barbed. COIL : 12VDC, 24VDC, 36VDC, 110VAC, 220VAC FLOW RATE : UP TO 7 L/M at 1 Kg/Cm2. OTHER FEATURES : Built in input SS mesh filter and pressure regulation.

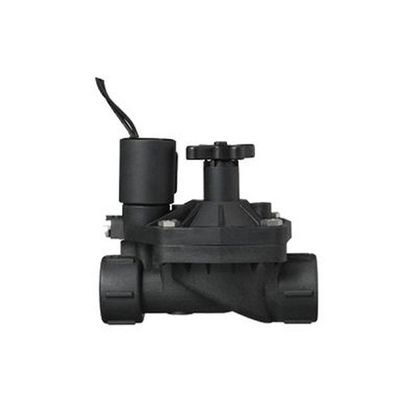

BRIEF SPECIFICATION : 1 NPT SOLENOID VALVE. APPLICATION : GENERAL AGRICULTURAL APPLICATION. VALVE TYPE : 2 WAYS, PRESSURE ASSISTED. PRESSURE RANGE : 1 TO 10 Kg/Cm2. INLET : 1" FEMALE NPT. OUTLET : 1" FEMALE NPT. COIL : 24VDC/AC. FLOW RATE : 0.01 TO 1 L/S. OTHER FEATURES : SIUTABLE FOR IRRIGATION AND SPRINKLERS.
